Transistion Style Thermocouple |
>Made with standard limits-of-error +/- 2C. Special limits-of-error +/- 1C material is available for
better accuracy
>Standard insulation provided with 316 SS sheaths, high purity insulation provided with Inconel 600
sheath
>Maximum continuous operating temperature for the standard transition is 177°C. A high temperature
transition 482°C maximum can be provided
>Standard lead wire 36" length with 3/4” stripped leads
>.063” to .125” O.D. thermocouples use 24 gauge lead wire and .188” to .375” O.D. thermocouples use
20 gauge lead wire |
|
|
|
|
Roller Wheel Moving Surface Thermocouple |
Type K ( Chromel / Alumel ), Temp range -250 to 260°C , Probe length 2.4", Cable length 3 ft, Connections mini-connector, Junction exposed These probes are designed for monitoring a wide range of flat surfaces. Choose from a variety of surface probes—standard, angled for hard-to-reach areas, heavy-duty, or special-purpose surface probes for specific applications. These probes include a handle; strain relief spring on handle protects the cable connection against damage due to repeated flexing and tugging. Probes include handle with strain relief spring and feature color-coded ANSI mini-connectors: type K—yellow |
|
|
|
|
Low Cost Hollow Tube Thermocouple |
- Maximum temperature from 204°C to 704°C based on wire type
- J, K, T, E, N calibrations available
- Epoxy or ceramic potting material
- Stainless steel sheath
|
|
|
|
|
Melt Bolt Thermocouples |
- Stainless steel melt bolt
- Stainless steel probe
- Fiberglass or MGO insulated probe
- Type J and K thermocouples for use up to 482°C
- Type T thermocouple for use up to 371°C
|
|
|
|
|

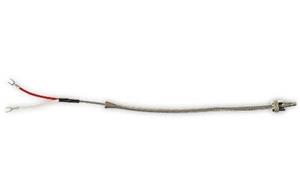

Spring Adjustable Bayonet Thermocouples |
- Types J and K thermocouples for use up to 482°C based on insulation type
- Type T thermocouple for use up to 371°C based on insulation type
- Stainless steel sheath material
- 3/16” probe diameter is industry standard (1/8” and 1/4” optional)
- 12” spring
|
|
|
|
|
|
|
|
|
