Rapid Mixture Granulator Contains cylindrical Mid Portion and Conical top portion for efficient mixing operation & provided with counter balanced lid.

Controls for discharge Opening / Closing.
Air regulator & pressure gauge & air filter

.

Fluid bed dryer is designed specially for drying, cooling, calcinations, agglomeration and in many other unit operations, due to its manifold advantages. It has other advantages such as no product lump formation/ caking, no particle overheating/cooling a well defined product residence time, uniform product quality, better energy economy due to lower specific heat requirements etc.

.

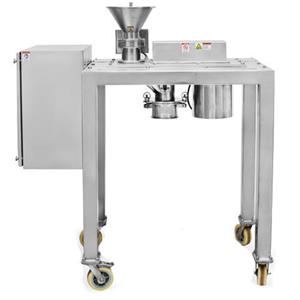

Co Mill is widely used for wet and dry granulation pulverization, shredding, and chopping in pharmaceuticals, chemicals and various industries.

.

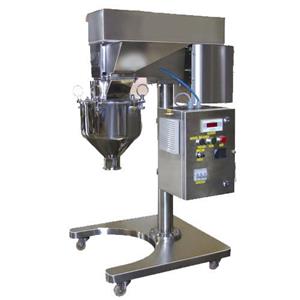

Multi Mill is designed to utilize the principle of variable force swing beaters having both knife an impact edges rotating with in a selected screen to control the particle reduction.

.

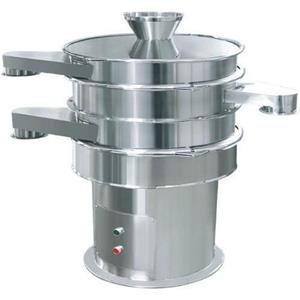

Sieves and Grade Material According to particle size, the amplitude of vibration can be adjusted to suit processing needs. A new designed spring action transfers the movement of the particle and tries to move as per the patterns which are formed on the screen

.

The unit is provided with a hot air blower with consisting of suitable Hp, 3 Phase, 440v 2880RPM electrical motor & centrifugal blower quith damper delivering required.

The air is heated by means of suitable electric heater to give air at 30 to 90 degrees with thermostat control and flexible hose pipe & control panel, the motor & gear box is mounted on the bearing housing fitted in the stand, blower mounted by the side of the stand or place in remote location if required.

.

Tray Dryer / Drying oven is fabricated out of rigid angle iron frame with double walled panels insulated with best quality compressed fibre glass & with a rigid door fitted with strong hings and best choosen locking arrangement

A control panel is fixed in front of the oven to facilitate the operation easily, It has a large working space and is available, manufactureing from mild steel & in good finishing outside with synthetic enamel colour

.

The Octagonal Blender is an efficient and versatile Machine for mixing and lubrication process of dry granules homogeneously. Two third of the volume of the cone Blender is filled to ensure proper Mixing

.

Mass Mixer that is designed of through mixing of wet as well as dry or Lump material it is a Pharmaceuticals Machine suitable for tablet granulation process. These are integrated with Paddle like blades for efficient granulation mixing and leak proof seal tilting arrangement for convenient unloading of products.

.

Starch Paste Unit offered by us is widely used in Pharmaceutical Processing units and is used for preparation of binder materials, is a hemispherical kettle with jacket mounted on trunnion supported with the help of a shaft. The kettle is available with an anchor type beater for mixing the binder material or the paste with multiple speed option.

.

.

.
