FEATURES:
- All steel welded structure, consolidated treatment for removal of internal stress(vibrating aging, heat), with good rigidity and stability
- Integrated hydraulic transmission system, with good reliability
- Triple support rolling guide rail to eliminate gaps of support and enhance shearing quality
- Mechanical rear stopper with manual fine tuning, and digital indication
- Clearance in between shearing blades adjusted by hand wheel to be quick, accurate and convenient
- Rectangular blades with four cutting edges to prolong working life adjustable shearing angle to reduce deformation of the sheet
- Upper blade holder has inward tilting structure to facilitate material feed in and also enhance accuracy of the work piece.
- Function of shearing in sections, function of aligning with light
- Optional: rear material holding device (or for other choice)

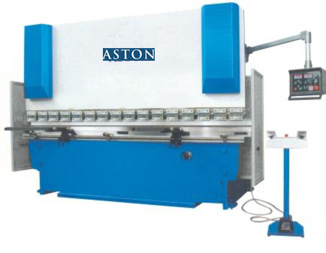

FEATURES:
- All steel welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity and stability.
- Torsion shaft forced synchronization of mechanical limit stopper balance, with high precision
- Integrated hydraulic transmission system, large range of speed regulation thanks to transmission of the sliding block, stable and reliable performance.
- Rear stopper and the sliding block have electrical adjustment for their stroke, with manual fine tuning and digital indication.

WIDELY USED IN STEEL STRUCTURE, HIGH VOLTAGE TOWER, TELECOMMUNICATION TOWER, STREET LAMP MANUFACTURING, LARGE RIGID FRAME BRIDGE MILITARY AND AIR CRAFT INDUSTRY.

- Fitted with 2 Axis (X, Y) Control, Delem Company, Holland exclusive digital system, grating meter, pressure proportional valve, servo motor all imported.
