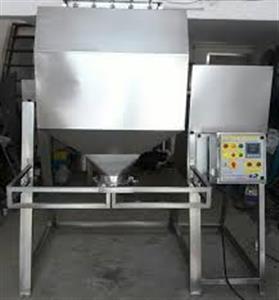

Octagonal Blender

prod1

Octagonal Blenders finds application in pharmaceutical industry for gentle blending of dry granules or powder. The blender features an octagon shaped body with rectangular central portion and top & bottom polygonal frustum. These are provided with Baffles for fast and efficient mixing, charging port, charging bin and outlet with butterfly valve.

Salient Features

The entire unit is mounted on a sturdy stand, complete with electric motor and gear box. + The machine is provided with control panel board and safety railing. + It is a slow speed blender and has a removable baffle mounted through a rectangular lid. + Simple design facilitates easy cleaning and zero retention. + Bump less rotation assured because of specially designed transmission chain sprocket. + The power consumption is comparatively lower than the other similar type of blenders + Capacity available 100 Ltrs to 1500 Ltrs, and 3 to 5 Ltrs for R & D models + Limit Switch is provided for operator's safety & manual inching arrangement. + Internal finish confirming 220 grits to 320 grits, outside matt finish180 grits.

Optional :


  • Flame-Proof motor with Flame-Proof ON-OFF Push Buttons.
  • It can be supplied with bin charging system and can be designed for vacuum, dust free charging & discharging of product.
  • PLC with MMI and VFD can also be provided.

.



Request A Quote      Back
