MARS stocks a variety of API 6A companion flanges in all sizes and pressure ratings. The material confirms to 4130, Quenched &Tempered, 75K, PSL 1,2 and PSL 3 upon customer’s request.

.

Mars manufactures Weldnecks and Blind Flanges as per API 6A  ranging in various  sizes upto pressure rating of 20000 PSI , PSL1, 2 & PSL3 as per customer requirements.

.

Tubing Head Adaptor are available in sizes of 7 1/16" 2000 x 2 3/8"EUE 8RD , 7 1/16" 2000 x 2 7/8" EUE 8RD, 7 1/6" 3000 x 2 3/8" EUE 8RD and 7 1/16" 3000 2 7/8" EUE 8 RD, 7 1/16" 5000 x 2 7/8" EUE 8RD,These sizes also available in 3 1/2 EUE RD (all Female box and male pin).The material confirms to 4130, Quenched & Tempered, 75K,PSL 1,2 and PSL 3 upon customer’s request.

.

MARS stocks studded crosses and tees according to the designs and tables in API 6A. The material confirms to 4130,Quenched & Tempered, 75K, PSL 1,2 and PSL 3 upon customer’s request.

.

Forgings for choke body, valve body or any close die forging tosingle piece weight upto 500 lbs can be supplied.

.

We manufacture variety of Wing nuts in pressure ratings upto 15000 PSI along with crosses and tees ,Parts for various Chokes are also available in raw material grades of A105, SAE 4130,4140, LF2, F6A,F65, F316L,F304L .

.

This are available in sizes of 2 1/16" 5M x 2 3/8" UPTBG, 2 9/16" 5M x 2 7/8" UPTBG, 3 1/8" 3M x 3 1/2" UPTBG, 2 1/16" 10M x 2 3/8" UPTBG, 2 9/16" 10M x 2 7/8" UPTBG, 31/8 5M x 3 1/2" UPTBG, 4 1/16" 3M x 4 1/2"UPTBG, 4 1/16" 5M x 4 1/2" UPTBG. The material confirms to 4130,Quenched & Tempered, 75K, PSL 1,2 and PSL 3 upon customer’s request

.

Mars Forge production range includes all types of flanges from Weldneck ,Slipon, Socketweld , Lapjoint, Threaded  according to ANSI ,DIN

.

LARGE SELECTION

MARS Hammer unions are available in a wide range of sizes and working pressure up to 15,000 PSI.

Pressure seal, non-pressure seal and butt weld style are offered in various sizes and pressures.

BUILT IN QUALITY

MARS Starts with quality steel forging made to exacting specifications for the appropriate pressure ratings. MARS in one of the few companies to have in-house forging, die-making, heat treatment, testing and CNC machining facility. All materials meet ASTM and AISI standards. Raw materials are forged to precise dimensions and heat treated using most modern equipment and procedures.

Hammer Unions are machined on latest state of the art CNC machines and are inspected for flawless threads, sure seating and other qualities that mean long, dependable service.

POSITIVE SEALING

All MARS Hammer Unions provide pressure-tight, positive sealing. Types of seals vary according to pressure and application. For 1000 to 2000 psi (low pressure) services, the spherical surface of male sub and the cone shaped surface of the female provide a metal-to-metal seal. Even When one of there surfaces is not prefectly aligned or slightly pitted, the seal is still leak proof. For some application in the 2000 to 4000 psi (medium pressure) service range, the metal-to-metal seal is supplemented with a resilient seal ring.

For 6000 to 15000 (high pressure) services, lip type seal ring is part of the female sub. This seal ring reduces flow turbulence and protects the metal-to-metal seal from corrosion.

INTER CHANGEABLE PARTS

All MARS Hammer union assemblies of the same figure number, size and pressure rating are inter changeable with similar assemblies made by other leading manufactures.

.

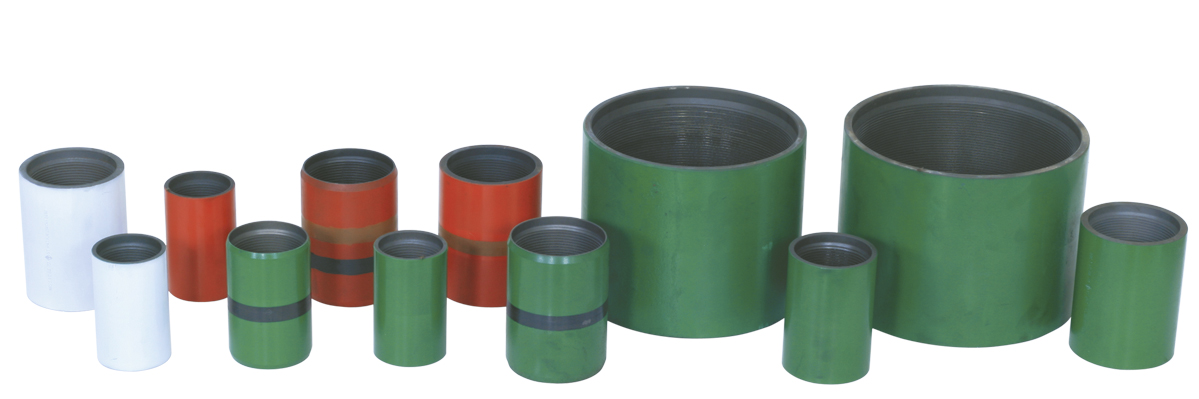

MARS has been manufacturing Various Tubing and Casing Couplings & Pup Joints as per API with different material grades and specifications

API 5CT Product

PUP Joints  ( 1.66" to 4-1/2 ")  EUE , NUE Max 15 ft

Tubing Couplings ( 1.66" to 4-1/2")  EUE & NUE

Casing Couplings (  4-1/2"to 13-3/8") STC, LTC, BTC

Material Grade : J55,K55,L80,N80,P110

.

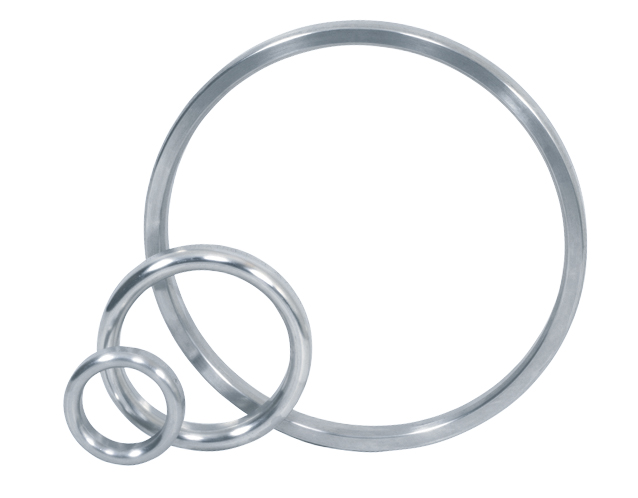

Ring Joint Gaskets are either Octaganol or Oval made  and are as per ASME B16.20 in various sizes.These are identified  by Numbers ,R,RX and BX  that relate to Flange Size, Pressure,Class and appropriate standards ASME B16.20 or 6A

.

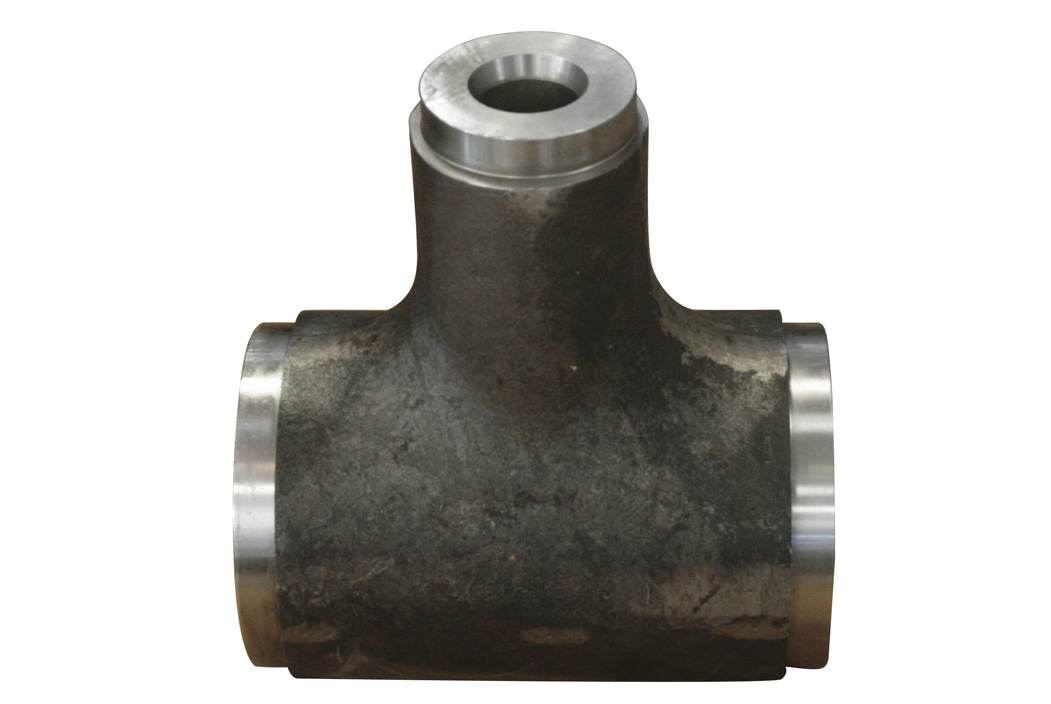

Mars Forge produces forgings for High Pressure forged fittings and flanges to meet the stringent quality requirements of the Oil & Gas industry.We make Tees,Crosses,Long Sweep Elbow and 180º Elbows and API Flange forgings availble in Carbon Steel, High Yield Carbon Steel ( F60, F65 ), Alloy Steel , SS410.

.

Description / Specification of Connecting Rods

We are involved in offering a wide range of Connecting Rods to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Connecting Rods. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

.

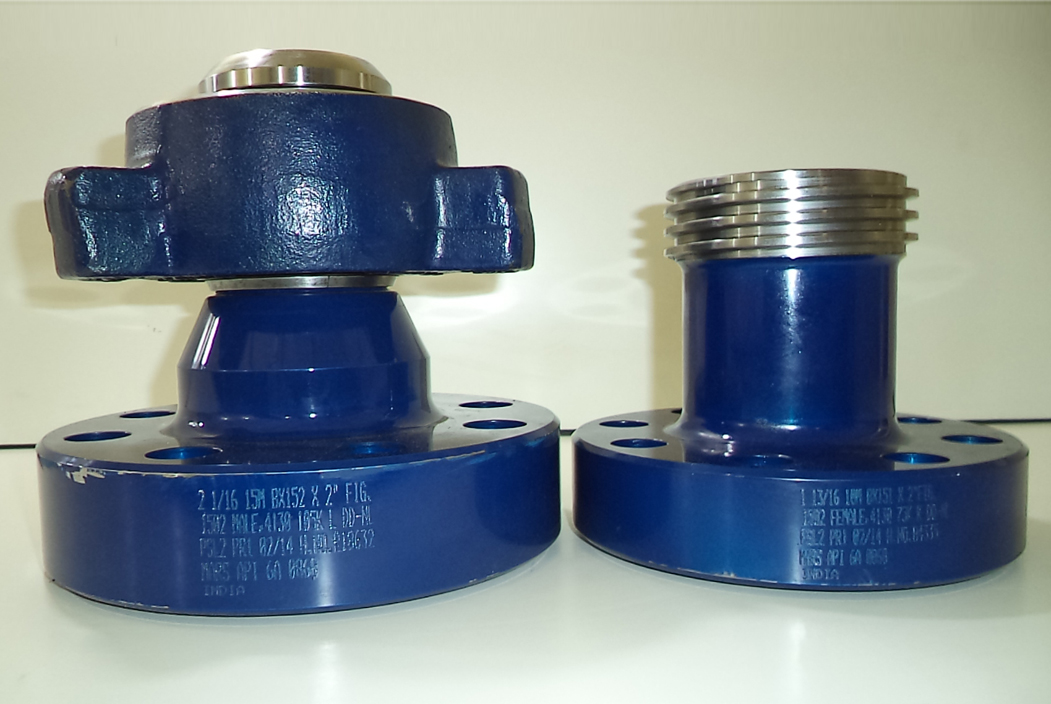

Mars Forge offers different types of Crossovers .

• Union X Union
• Union X NPT
• Flange X Union
• Union X EUE
• Union  X NUE

All crossovers are offered as Standard or Sour ( H2S) Service.

Speciality Connections ,custom end-to-end lengths are possible, please consult us for more details .

NOTE: Max NSCWP for crossovers is the lower pressure rating when using Mis-Matched Fig Nos.

.

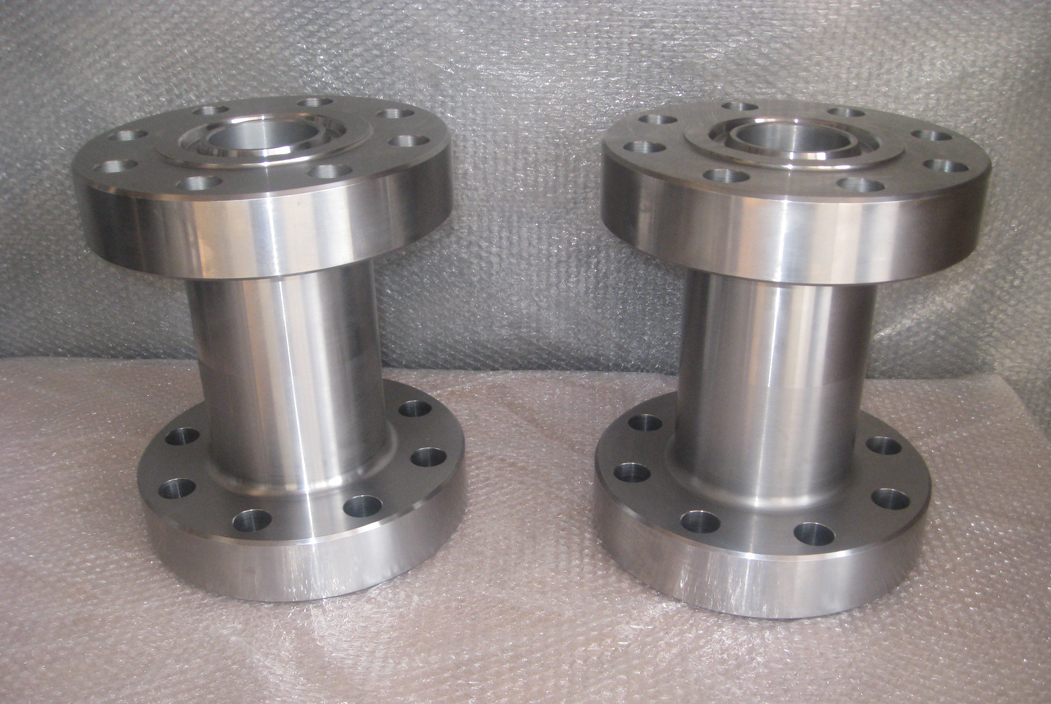

Mars Forge manufactures Adaptor and Spacer Spools in all sizes and pressure ratings

Adaptor Spools have end connections that differ from one another in nominal size and/or pressure ratings. Buyers may specify any combination of end connections as well as overall height or length ( OAL)
Spacer Spools usually have the same nominal end connections.

.

MARS manufactures Ring Forgings in various sizes ranging from 50mm Dia upto 2500mm Dia.Ring Forgings are offered in Carbon Steel, High Yield Carbon Steel, Low Alloy Steel,Alloy Steel , 17-4 PH and Stainless Steel

.
