World smallest AC geared motor, with the longest service life. Widest variation ever found from 1W up to 120W, with the input voltage of 220V (or 200/240V) as standard design. CE certified, with speed control and braking devices fully equipped.

Application: Conveyors and material handling, FA system, loader and unloader. Food processing and packaging.

Printing and film processing. Fans, pumps and blower. any general machinery with AC supply.

Based on the proven UNICASE concept Getriebebau NORD has developed the compact geared motor NORDBLOC.

Six sizes in double and triple reduction designs, as foot or flange mounted gearboxes or geared motors cover the power

range 0,12 - 45 kW and the output torque range 86 - 3000 Nm. * Power range 0,12 - 45 kW * Torque range 86 - 4000 Nm

Performance specifications

11 basic sizes, available as double- and triple-reduction and combined drives.Power range from 0,12 kW ( 0.16 HP ) to 200,00 kW ( 250.00 HP ).Speed range from 0,2 rpm to 345 rpmOutput torque range from 271 Nm ( 2,400 LB.IN. ) to 60.000 Nm ( 531,000 LB.IN. )Ratio range from 4,1 : 1 to 6.618 : 1

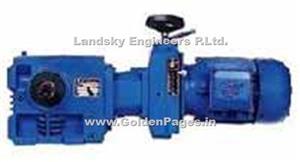

Performance specifications12 variator sizes availablePower range from 0,25 kW ( 0.33 HP ) to 110,00 kW ( 150.00 HP ).

Speed variation ranges up to 8,5 : 1

Performance specifications11 basic sizes, available as single-, double- and triple-reduction and combined drives.

Power range from 0,12 kW ( 0.16 HP ) to 160,00 kW ( 200.00 HP ).Speed range from 0,1 rpm to 1.200 rpmOutput

torque range from 58 Nm ( 513 LB.IN. ) to 20.000 Nm ( 177,000 LB.IN. )Ratio range from 1,3 : 1 to 14.340 : 1

Performance specifications9 basic sizes, available as triple- and quadruple-reduction and combined drives.

Power range from 0,12 kW ( 0.16 HP ) to 160,00 kW ( 200.00 HP ).Speed range from 0,3 rpm to 185 rpmOutput torque

range from 350 Nm ( 3.100 LB.IN. ) to 26.000 Nm ( 230,100 LB.IN. )Ratio range from 8,0 : 1 to 4.916 : 1

Performance specifications

6 basic sizes, available as double- and triple-reduction and combined drives.Power range from 0,12 kW ( 0.16 HP ) to 15,00 kW ( 20.00 HP ).Speed range from 0,2 rpm to 318 rpmOutput torque range from 172 Nm ( 1.520 LB.IN. ) to 3.050 Nm ( 27.000 LB.IN. )Ratio range from 4,4 : 1 to 7.095 : 1
