HARISH have excelled in the art of making of top notch machines for 50 years. Harish Stenters have won numerous accolades for their performance in India and abroad.

SUPRA-5 DLX iN is an improved version of SUPRA-5 DLXi - Specially designed to get 20% more production than the current DLXi. This machine also offers the same production at a lower electrical power consumption. This quantum leap in performance is achieved with a combination of various factors - change in airflow and heat transfer system, redesigned blowers, radiators and nozzles.

The State of the Art Dyeing Jigger uses a PLC and touch
screen display system. Hydraulic Drive guarantees smooth movement of fabrics without any tension and jerks, the speed is fully controlled with a Microprocessor.

Programmable Auto dosing of colour and chemicals ensures colour accuracy. PLC incorporates diagnostic for fault finding, data logging of important features and storing and retrieving up to 50 programmes.

Hydraulic Jiggers Pacific J, N, E, & B are available in different widths upto 3400 mm and with capacities starting from 75 kgs. to 1800 kgs batches of dry fabrics.
 Model:(detail specification chart in millimeters)

PACIFIC-J
batch dia
1400 mm
960 kgs to
1600 kgs
PACIFIC-N
batch dia
1100 mm
500 kgs to
800 kgs
PACIFIC-E
batch dia
800 mm
300 kgs to
530 kgs
PACIFIC-B
batch dia
400 mm
75 kgs to
130 kgs

An ingenious deflection control principle forms the heart of HARISH INDOFLEX dye padder. It allows modulation of expression pattern to achieve desired pick-up. The INDOFLEX padder is a dyeing and impregnating machine for use in:

a) Dyeing process such as pad-dry, and pad steam.
b) Pad roll-bleaching & special finishing processes applications in tandem with
    stenters.

The stainless steel cladded inner frame facilitates easy cleaning and long service life.

ADVANTAGES

  • Apt design for dyeing of all kinds of fabric - woven, knits with different
     configuration Fabric with differential selvedges dyed without limitation
  • No center - selvedge variation Reproducibility of all dye-stufF
  • Uniform liquor application from beginning to the end of batch No cambering
     of nip rollers
  • Selective roller composition for long life of rollers Minimum maintenance
  • Effective washing of trough, rollers
  • Low setting time Uniform squeezing of wide as well as narrow fabric
  • Users friendly operation

Harish Rotary Screen Printing Plant ND4 is backed by pioneering expertise and know-how of Harish gained over three decades of experience, in the roduction of textile machinery. With Harish ND4, the customer is sure of high class rinting, accuracy in registration, increased rate of production and profits, of course.

The ND4 is highly versatile in application and permits printing on all type of textiles including cottons, blends, knits, non-wovens from fine synthetics, light weight fabrics to the heaviest ones unto 16 colors. Sturdy in construction, the plant is simple to operate and easy to service.

A FIXATION FOR PERFECTION: The Harish Loop steamer is a compact versatile performer. This new generation pressureless continuous steamer from Harish can be applied for various dye-stuff fixation processes viz. Saturated steaming at 101¡ãC. High temperature steaming in the standard version upto 185¡ãC. and Polymerising with hot air. There are two factors to ensure optimum performance of the Loop steamer. :

A. Proper injection of air or steam.
B. Proper distribution of steam inside the machine. This has to be balanced by tensionless feeding of the fabric and a crease free loop formation. (During the loop formation it is important that contact with the printed surface of the fabric is avoided.)
ACCENT ON FEEDING: In the HLS-4, printed fabric can be fed from trolleys or from batches. (In case of batches a positive unwinding unit is essential to prevent excessive tension on the fabric.)


Washing range for various purposes are offered by Harish. The three different washbox Models, viz. TYPHOON, PERFOTEX, HSN2 and in some cases, under liquor washer Rel-ZONE-5 are combined as demanded by the application.



PERFOTEX WASHER:
* Positively driven twin drums with “S” threading.
* High velocity circulation pump and rotary filter.
* Blade type spray.
* Direct/Indirect heating.
* Water seals for steam conservation.

Description / Specification of Relax Dryer

We are involved in offering a wide range of Relax Dryer to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Relax Dryer. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

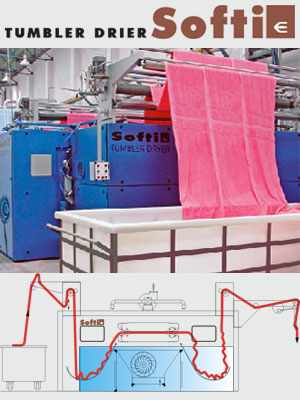

Tumbler dryer SOFTI-E is eminently suitable for giving soft and bulky handle to cotton blends, viscose, microfibre, silk fabrics, due to its special thermo-mechanical action, dissipates undue tension and establishes new inter-chain relation. This property renders virtually permanent dimensional stability.

Apart from this, the fabric achieves an immense change in appearance and handle. SOFTI-E is available for 1600 mm to 3400 mm fabric width and can be supplied in multiple modules based on production required.

ENTRANCE:

This has a number of guide rolls made from stainless steel and a driven Draw roll with variable speed motor. The special design of this centering system avoids any tension on the fabric.
