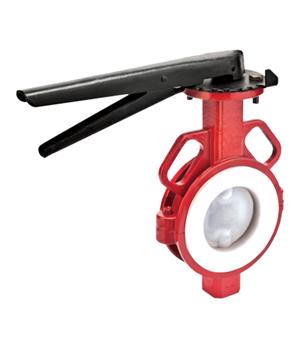

P. T. F. E. Sleeved Butterfly Valve

Application Isolation

Features / Benefit Semi Lug Type Design
Top Mounting Pad as per ISO 5211
Unique Stem retention design to provide blow
out proof stem & easy assembly & disassembly of valves
Heavy Duty square grooved seat design with
moulded O ring seals to act as flange gasket
Self energizing seating design
Through flow disc design for large size Butterfly Valves

Ansi Class / Rating 150# Class;

Design Standard API 609 CAT A

Testing Standard API 598

F to F Standard API 609 CAT A

Size 50 mm to 400 mm

Materials Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex,
Alloy 20 , LCB etc
Disc : WCB, CF8, CF8M, Hast Alloy,
Super Duplex, Alloy 20 , LCB etc
Seat : PTFE

Ends Wafer End

Operation Mannual, Pneumatic, Electric

Contact Us Enquire Now

> </div>
<div class=

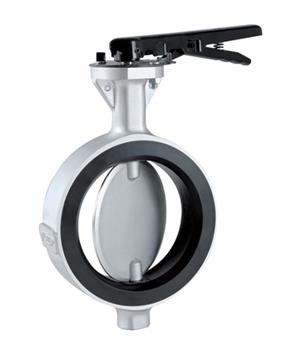

Wafer End Butterfly Valve

Application Isolation

Features / Benefit Centric, Single Ecentric & Double Eccentric Design
Full Lug & Semi Lug Type Design
Top Mounting Pad as per ISO 5211
Unique Stem retention design to provide
blow out proof stem & easy assembly &
disassembly of valves
Heavy Duty square grooved seat design with
moulded O ring seals to act as flange gasket
Self energizing seating design
Through flow disc design for large size Butterfly Valves
Different Lining and Metallurgy to suit a wide variety
of applications including sea water & water
desalination plants

Ansi Class / Rating PN 10, PN 16, PN 20

Design Standard AWWA C 504, API 609 CAT A

Testing Standard API 598

F to F Standard AWWA C 504, API 609 CAT A

Size 50 mm to 1800 mm

Materials Body : Cast Iron, WCB, CF8, CF8M, Hast Alloy,
Super Duplex, Alloy 20 , LCB etc
Disc : Ductile Iron, WCB, CF8, CF8M, Hast Alloy,
Super Duplex, Alloy 20 , LCB etc
Seals : EPDM, Nitrile, Viton, Metal Seated etc

Ends Wafer End

Operation Mannual, Pneumatic, Electric

Contact Us Enquire Now
