Cutting and Creasing is the initial process carried out in the manufacture of acorrugated box. It is simultaneously carried over this machine. Two pairs of shafts have creasing and cutting heads mounted on them which can be easily set as required. Depending upon the thickness of the board (3 ply, 5 ply, 7 ply, 9 ply), separate creases are to be used. The sheets are piled on the feed table and fed through the machine by hand.

In the interest of product upgradation/improvement, the manufacturer reserves the right to change the specifications and features without notice.

The next process after cutting and creasing of the sheet is slotting and corner cutting. It is simultaneously carried over this machine. Three slotting and one corner cutting die can be easily adjusted by gear rack mechanism. The upper dies move in an arc so that the board is slotted in a shearing manner. Two guides are provided on the feed table to support the sheets while cutting.

In the interest of product upgradation/improvement, the manufacturer reserves the right to change the specifications and features without notice.

Reel to Sheet Cutter machine is designed to cut paper as well as 2 plycorrugated board (without damaging the flutes) in the form of sheets. This machine can be used as an independent unit or can be attached to a corrugating machine for direct & accurate sheet cutting. The cutting length can be infinitely varied in between the range (1.5) with a PIV gear box, comprising of imported chain. The belts convey the cut paper or 2 ply for manual collection. Separate reel stand is provided for paper cutting. The variable speed motor is provided as standard with this model. Reel to Sheet Cutter is also available without PIV Gear Box.

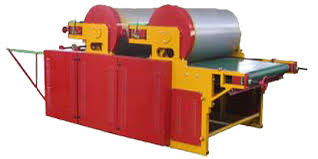

Flexo Board Printer Sheet Fed For Paper, Board For Printing Kraft paper and corrugated boards. Only our machine can print both the paper and corrugated boards .Distinct and precise impression, instant drying, extremely simple to operate, easy accessibility for cleaning. Flexo graphic Printing System is used for transfer of image in Corrugation Printing Machine. The image is transferred through rubber stereos or polymer stereos of 3mm / 5 mm thickness. The stereos are mounted on the printing cylinder by means of Double side adhesive Tape. Ink is transferred to the stereos from rubberized inking and transfer rollers. Even flow of ink is possible by micro adjustment of rollers. Board/Boxes/Sheet/Bag is fed manually and precisely taken-up automatically by the Registration Mechanism For Accurate Printing in two colour machine to print the image exactly where desired in two colors.

This is a hand operated Board Cutter to cut the paper or corrugated board in the form of sheets. This Board Cutter is heavy duty in casted frame, Front and back guides are provided with the machine for exact cutting. The blades are high precision, hardened ground.

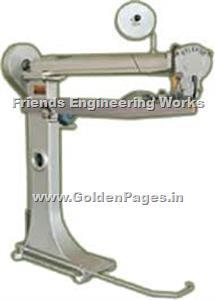

This Machine is used for last and final operation in box making. Parts are standardized and interchangeable. Machine is capable of continous running at high speed. Design of the Machine is universal & world famous. Very easy in operation, servicing & repairing.
