Reliable Indicator for colour & dangerous liquid even
under high pressure & temperature.
MODEL NO. : FITZER / BML / 24
Mounting : Side mounted
C.C. Distance : upto 5000 mm
Features : Adjustable Alarm switches,
Transmitting output 4-20mAmp
.
Request A Quote Back
Reliable Indicator for colour & dangerous liquid even
under high pressure & temperature.
MODEL NO. : FITZER / ML / 24
Mounting : Side mounted
C.C. Distance : upto 5000 mm
Features : Adjustable Alarm switches,
Transmitting output 4-20mAmp
.
Request A Quote Back

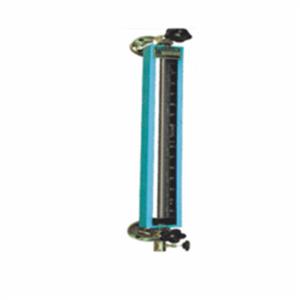

It is a simple, low cost and reliable device for
direct reading of liquid level
MODEL NO. : FITZER / TLG / 130
Mounting : Side mounted
C.C. Distance: upto 3500 mm
Features : Adjustable Alarm switches, Isolating
Auto Shut-off Valve, Steam
Jacketing Arrangement.
.
Request A Quote Back
MODEL NO. : FITZER / FCR / 500
Mounting : Side mounted
Length : Unlimited as per customer
requirement.
Features : A Fix point Alarm switches,
Vapor sealed magnetic operated Float
& Board Type Level indicator
.
Request A Quote Back

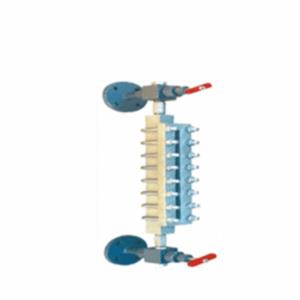

Reflex and transparent level gauges are specially
design to meet evolving inflammable, toxic high
pressure & high temperature liquid.
Model No. : FITZER / RLG / 180
Length : upto 3000 mm
Features : Isolating Auto Shut-off Valve,
.
Request A Quote Back
fitzer purge type level indicator is simple reliable for direct reading in atmospheric or pressurised tank application
It is compressed air operated and functions under the same basic principles of the u-tube manometer whose accuracy is inherent. Indicator is recommended where continuoues indication of level of liquid in a tank is required by compressed air or build in hand pump which is operated only when an indicator reading is desired.
.
Request A Quote Back
Electronic : Loop powered integral with
transducer
Input : Variable resistance form transducer
Range : Upto 3 meter
Supply : 24V DC 4-20 mAMP
Process Conn : 2” / 3” NB
.
Request A Quote Back

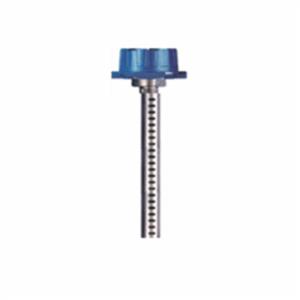

Application for Non-Forming, Conductivity
Liquid with Low / Medium Viscosity like Water,
Water bound solutions, liquid like Mineral Oil etc.
MODEL NO. : FITZER / CLT / 900
Length : Upto 6 meter
.
Request A Quote Back

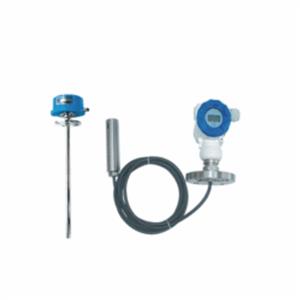

MODEL NO. : FITZER / HLT / 808
Probe : S.S.316 dip pipe
Length : Upto 3 meter
Supply : 24V DC
Output : 4-20m Amp
MODEL NO. : FITZER HLT / 809
Probe :Flexible cable type with bottom
end pressure transmitter
Length : Upto 30 meter
Supply : 24V DC
Output : 4-20m Amp
.
Request A Quote Back
It is a reliable technique in Industry for point liquid
level sensing and control in open or pressurized tank.
MODEL NO. : FITZER / TLS / 50
Miniature Level Switches
Fitzer small size liquid switches features a small float
displacement especially suitable for narrow or restricted area.
.
Request A Quote Back
The magnetic float operated pivoted liquid level switches for high and low intermediate sensing point.
.
Request A Quote Back
Probe : S.S. 316
Sensing Range: Upto 20 meter
Process Conn: 1” OR 2” NB
Maximum current :20mAmp AC
Resistance : 40K (maximum) between mass &
control electrode
Encloure : Cas Aluminium weatherpoof
/flameproof
Fluid : Any of Conductive Liquid
Control Unit
Supply : 230V 50Hz AC 6 Amp
Voltage : between the sensing probe 1 Volt.
Contact : 1 NO / 1 NC potential free
contact with
individual sensing point.
No. Sensing Point: 2, 3,4,6,
.
Request A Quote Back
A change in the liquid level causes the float
to tilt up or down in the process &
Move the steel ball inside of float device to
operate the micro switch and it
create NO – NC contacts
This float come with flexible HAR rubber cable
with adjustable stopper.
Cable Length: As per customer requirement]
Switch : Micro Switch 1 NO / 1 NC
Switch Rating : 5 Amp 230V AC, 15Amp
230V AC
.
Request A Quote Back
MODEL NO. : FITZER / TDS / 500
Top Mounted Displacer level switch work
on buoyancy principle. Specially for low
density liquid. Adjustable switching
distance throughout range suitable for
maximum 30 meter length.
Mounting : Internal OR External cage type
Switching Point : 1 OR 2
Process Conn : 2” / 3” NB
Switch Type : Micro switch 1 N/O – 1 N/C
5Amp 230 AC
.
Request A Quote Back
From our wide range of products, we offer optimum quality BI- Colour Type Magnetic Level Indicator that is used in various industries. The offered indicator is designed using top notch quality component and modern technology in line with set quality norms. We provide this indicator in diversified specifications and designs in order to cater the needs of our clients. Moreover, offered indicator is checked by our quality controllers on variegated parameters in order to deliver durable product to our valuable clients.
.
Request A Quote Back
