Coil tilting from Vertical to Horizontal (Vice versa) Hydraulically or Mechanical arrangement, with or without Power Pack, Capacity up to 40 MT
.
Request A Quote Back
Capacity 100MT (3 x 35 Ton), with V-saddle for coil resting, driven by geared motor & controlled by remote Pendent box
.
Request A Quote Back
Suitable for transfer Scrap up to 40 MT in single lot from one bay to another, specially loading of Scrap in Furnace in Hot Condition
.
Request A Quote Back
Coil size ID 508/610 mm, width 3000 mm, weight 40 MT , Mandrel Single or Double stub type,Expand & Collapse by Hydraulic Cylinder and with sliding base
.
Request A Quote Back
Coil size ID 508/610 mm, width 3000 mm, weight 40 MT , Mandrel Single or Double stub type,Expand & Collapse by Hydraulic Cylinder, with sliding base, Inbuilt Gear Reduction, Brake & D.C drive system
.
Request A Quote Back
3, 5, 7 Roll type, Hydraulically/ manually up & down of upper Roller set, with or without pinch roll, side guide etc. Capacity sheet thickness up to 20 mm, Sheet width 600 – 3000 mm
.
Request A Quote Back
Suitable for sheet Thickness from 0.15 mm to 0.63 mm, 3600 mm long,Capacity up to 30 Sheet per minute. Power: 22 kw, VFD drive arrangement, Screw down arrangement / Hydraulically operated.
.
Request A Quote Back
Sheet slitting up to 6 mm thk& width 3000 mm (min sitting width is 50mm)EccentricCam adjustment for sheet Thickness, Hydraulically or Electrical drive system.
.
Request A Quote Back
Suitable to make bale of Slitting strip of 50 mm wideand 6 mm thk. Bale size: 50 to 500 kg. Hydraulic / Manually Removal of bale
.
Request A Quote Back
Suitable for Pipe size up to 100”, Length 12 MTR and Load capacity 10 M.T. Pipe Rotational movement as well as Longitudinal by sets of Pipe rotator on it. Generally used for X-ray /ultrasonicTesting Purpose
.
Request A Quote Back
Capacity up to Bore size 450 mm x Stroke 2.5 MTR, Single / double acting, Cushioned / Non-Cushioned type, working Pressure up to 5000 PSI, Mounting Front / Rear Flange, Center Trunion type, Rod end Threaded or clevis type
.
Request A Quote Back
Tank Capacity up to 5000 liter, up to 50 HP Motor, max flow 1000 LPM, max Pressure 5000 PSI with Breather, Filter, Oil level Indicator ,Flow Control valve, Pressure relief valve, Pressure switch , Pressure reducing valve , Direction Control valve, valve stands etc.
.
Request A Quote Back
Up cut / Down cut type for sheet Thickness 0.3 mm to 25 mm Thick sheet width 300 mm to 3000 mm Hydraulically operated up to 100 cut/min with side guide, Length adjustment photo sensing device.
.
Request A Quote Back
Finned Tube type, for Air Heating or Oil cooling, by blowing of Air on Finned Tube. Capacity up to 2,00,000 J. Surface area up to 250 Sq. Meter
.
Request A Quote Back
Shell & Tube type / Tube bundle type , liquid to liquid Heat transfer, Capacity up to ø 1200 mm x Length 6.5 MTR.Surface Area 250 Sq. Meter
.
Request A Quote Back
|
.
Request A Quote Back
|
.
Request A Quote Back
|
.
Request A Quote Back
|
.
Request A Quote Back
|
.
Request A Quote Back
|
.
Request A Quote Back
|
.
Request A Quote Back
Application
DROP WEIGHT TEAR TESTING MACHINE is mainly used for test of Ferrite Steels to observe Specimen Fracture Surface after impact within the Temperature that Fracture type is converted from Non-ductility to ductility.
Elegant Creations Pvt. Ltd. offer a Range of DROP WEIGHT TEAR TESTING MACHINE for measuring the Fracture Characteristics of Steal Specimens according to APT recommended Practice 5L3, EN 10274 & ASTM-E436. DROP WEIGHT TEAR TESTING MACHINE can be accommodating Steel grades of X120 and Specimens of up to 50mm thick.
Main Features
1. Very Robust Design & Construction Stand up to the stratum of high energy testing.
2. Variable Impact energy by adjusting the mass & Lifting Height of weight.
3. Easily Interchangeable Contact parts simplify Maintenance and Reduce the down time
4. Automated Specimen Loading provides Compliance with cycle times required by test Method.
5. The Buffer is provided to absorb the residual energy after breaking the Specimen to protect the weight and anvil from damaging.
6. All safety features provide such as safety net, safe pin for maintenance and hanger locking. Also provide Specimen Carrying outfit, anti falling of outfit for the Specimen, Cantering device to quick, accurate and reliable test.
7. Very rigid base and anvils ensures Very low flexure under high test Loads.
8. Guided system provided to ensure that the impact of specimen & anvil is Correct throughout the entire test.
9. High quality and easy to use Control Software provided for Consistency.
10. Optional liquid type low temperature chamber.
11. Optional Automatic Specimen feeding system.
12. Optional Automatic Hydraulic press for Notch
.
Request A Quote Back
Application

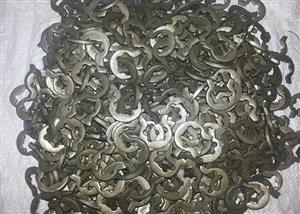

Equipment for Solvent Extraction Plant and Self-Locking Retaining Rings are ideal for applications that have high rotational requirements. This feature allows the ring to function properly at speeds that exceed the recommended rotational capacity. The self-locking option can be incorporated for both external and internal rings.
The self-locking feature utilizes a small tab on the inside turn locking into a slot on the outside turn. Self-locking allows the ring to operate at high speeds, withstand vibration, function under rapid acceleration and absorb a degree of impact loading.
.
Request A Quote Back
Application
A bearing block is used to provide support for a bearing supporting a rotating shaft. The housing material is typically made of steel or aluminum. Bearing blocks primarily mount bearings safely, enabling their outer race to be stationary while allowing rotation of the inner race.
The housing is mounted to a foundation using bolts through the holes in the bearing mount. Bearing blocks used in screw & nut assemblies may not be rated for the same static load as the screws or nuts with which they are used. Contact Joyce/Dayton to verify that bearing blocks are adequately sized for the required loads
.
Request A Quote Back
