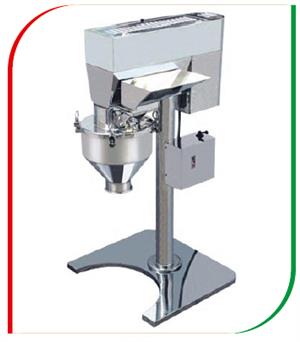

Multi Mill

• SUITABLE FOR DRY GRANULATION / PULVERISING / SHREDDING & CHOPPING OF MATERIALS
• MULTI SPEED DRIVE FOR VARIOUS PRODUCT GRADING
• EASY DISMANTLING AND CLEANING
• OUTPUT 100 TO 250 Kgs/hr DEPEND UPON CHARACTERISTIC OF PRODUCT & THE SCREEN SIZE
• EASY MANOUEVARABILITY WITH THE HELP OF CASTOR WHEELS
• MOC S.S. 304 / 316 / 316 L
• MOTOR - 3 HP / 1440 RPM, ROTOR DIA - 250 MM APPROX
• BEATERS - 12 NOS WITH KNIFE/ IMPACT EDGE AND 2 SCRAPPER BLADES.
• ROTOR SPEED - 720 / 1500 / 2100 / 3000 RPM APPROX
• OVERALL DIA - 900 L x 800 W x 1700H (IN MM)
• CGMP MODEL WITH DOCUMENTATION (IQ, DQ, PQ, OQ) - AS OPTION
