Blastline offer a range of portable blasting machines able to cope with virtually all types of blasting environment. Whether on site, where the need is for manoeuverability, or in a fixed environment such as a blast room. Tried and tested throughout the world the blastline range of blast machines combines rugged efficient operation with maximum site safety.

Hydraulically tested to twice the working pressure and comes with a test certificate and a comprehensive machine manual.

A choice of automatic or manually operated machines are available along with a grit valve or flat sand valve.

.

Nozzle Holders
 • Available in standard 1-¼” and 50 mm heavy-duty threads.
 • Lightweight & economical
 • Widely used

Nozzle Washers
Use Nozzle washers between the hose and nozzle to absorbe the abrasive impact.

.

Blast machine with FSV metering valve, pneumatic remote control system with deadman handle, moisture separator, screen, cover, 20 m 32 x 8 (1 ¼ '' I.D.) heavy duty blast hose coupled with nylon nozzle holder and cast iron quick coupling, 20 m coupled twinline remote control hose, BTSDX 6/50 long venturi blast nozzle with tungsten carbide liner and aluminium jacket, air supplied helmet with air control valve,model Astro, helmet air filter, 20 m breathing air hose 9 mm (3/8'') coupled, leather/cotton blast suit, pair leather gloves, one pack of helmet outer lens, 10 coupling gaskets, 10 nozzle washers, 2 whip check safety cables and10 safety pins.

.

For Heavy duty application with minimum pressure drop requirements, installs at blast machine inlet, supplied with 40 micron polypropylene or brass element with manual drain. Female threaded ports from ½”, 1”, 1¼” and 1½”.

General purpose filters are used in compressed air systems to remove liquids and solid particles
from the compressed air. Standard features with 5 micron brass element and manual drain.

.

We offer remote control valves for all our machines, which allows for one man operation.

How the pneumatic remote control system works

The remote control enable the operator to start or interrupt blasting from a remote position and is a saftey equipment to prevent accidents.
The pneumatic remote controls consist of a remote control valve RM-100 or RM-50, a deadman handle and a twinline hose. The red remote control hose guides compressed air from the remote control valve to the deadman handle. When the deadman handle is depressed, the air passes from the red to the blue hose and is guided back to the remote control valve. The pot is pressurized and the blast process starts. When the deadman handle is released, the blast process stops (the port is depressurized).

.

BTV valve is a normally closed abrasive metering valve requiring air supply to open it, thus permitting abrasive flow. It is utilized in pressure hold applications where quick on/off blasting is essential. This valve designed for use with an abrasive cut off switch which allows for blow down capability and is available with either Urethane or Tungsten Carbide sleeve.

.

Manufactured from high quality non corrosive alloy, this valve is recommended for use with non metallic abrasives. Precise abrasive flow can be easily controlled by two stainless steel discs, one stationary and other one rotates to any aperture opening available in 1-1/4” and 1/2” sizes.

.

Fixed orifice abrasive metering valve, specifically designed for use with garnet. A urethane insert within the centre of the valve is featured to provide accurate garnet metering and consistent flow.

.

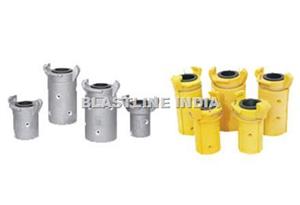

A full range of quality couplings to suit our range of shotblast hose products. Quick Couplings for fast safe coupling of hoses. All couplings with interconnecting locking lugs adapt to any size available in  Cast Iron and Nylon.

.

A long-lasting heavy-duty hose exceptionally tough and abrasion resistant, for use in sand and steel blasting service; it is manufactured with anti-static rubber granting a complete discharge of static electricity.

Temperature range: -40ºC (-40ºF) to 70ºC (+158ºF)
Tube: Black, smooth with excellent resistance to abrasion; it is anti-static.
Reinforcement: High strength synthetic cord.
Cover: Black, smooth (wrapped finish) highly abrasion resistant synthetic rubber; it is anti-static.
Coils: 125 mt (419 ft) continuous length; 60mt (200ft) or 40 Mt (131 ft) coil available on request.

.

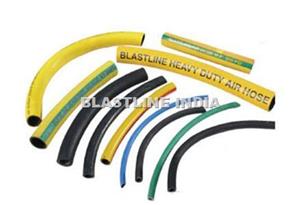

Air is expensive to produce

It needs energy to make energy. When it comes to conveying air to the workplace consider quality airlines for Safety, Economy and Long Life. Failures can prove costly in down time. We have a wide range available and outline some on this page.

.

Internal Pipe Blasting Equipment.

Blastline offers different type of Internal Pipe blasting equipment for 3/4" to 36" Dia. pipes.

.

Air cooled aftercoolers
Air cooled compressed air aftercoolers cools the compressed air with atmospheric air.
The compressed air is cooled to approximately 9oC above ambient temperature. A sufficient
capacity aftercooler can take upto 80% of the moisture present in the compressed air.

The BL Series is a complete aftercooler package designed to work on most models of rotary  air compressors.  To select the appropriate model, simply determine compressor horse power, and select model from the chart.

.

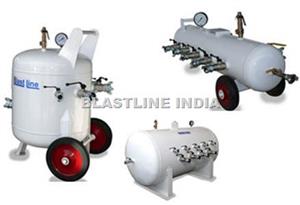

Air Receiver / Manifolds
Tank type air manifolds provide multiple air outlets with ball valve controls and 2" Air Inlet  with Four Jaw coupler, Air Relief Valve, Pressure Gauge and Drain Valve.

Other types and sizes of air manifolds are also available for special applications.Air Receiver / Manifolds
Tank type air manifolds provide multiple air outlets with ball valve controls and 2" Air Inlet  with Four Jaw coupler, Air Relief Valve, Pressure Gauge and Drain Valve.
Other types and sizes of air manifolds are also available for special applications.


.

Coalescing Oil Removal Filter
High efficiency coalescing filters removing liquid water and oil aerosal to 0.01 mg/m3
(0.01 ppm) and particles down to 0.01 microns.

.

Electrical units can be operated with 440/480, 3 phase 60Hz, (380, 3 phase, 50Hz  power optional). They have the capability of providing four functions.

             Dehumidification
             Modified Dehumidification
             Air Conditioning
             Heating

Functions are controlled by switches located on the shell of the unit.  Units can be utilized on land or abroad a vessel.

.

Venturi Blower Features

Used to ventilate explosive and hazardous vapors or fumes safely.
No moving parts
Lightweight cast aluminum base
Static grounding lug is standard
Operates on compressed air or steam
Galvanized steel horn (replaceable)
Operating pressures up to 140 psi
Larger models available up to 8000 cfm capacity – consult factory

.

XTREME SPRAYERS
Graco’s new, more powerful and easier to use Xtreme sprayers are designed to spray high solids and 100% solids (solvent-free) coatings under the toughest conditions. Graco’s new Xtreme lower, combines with the improved NXT, creates the ideal sprayer for your protective coatings applications.

Features

Superior Performance - 10% more pressure and improved flow.
Lower Maintenance Costs - Finish routine maintenance and repairs in half the time of competitors’ pumps.
Longer Life - Plasma CoatTM rods and XtremeSealTM packings more than double the life of the pump.

.

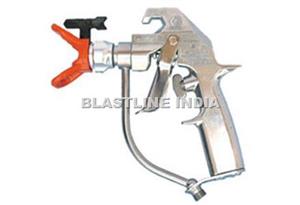

Graco Silver Plus Airless Spray Gun

The Silver Plus Airless Gun is known for its durability, long life, spraying performance and comfortable design. It is the preferred gun for high pressure applications

High performance industrial spray gun
Form fitted handle
Lightweight design
2 finger trigger (optional 4 finger)
No needle adjustment required
5000 psi rated


.

Blastline can offer you the complete spares and repairkits for the painting pumps we supply.Blastline can offer you the complete spares and repairkits for the painting pumps we supply.

.

Airless and Conventional Paint Hose available in Non-Standard Lenghts upon request!

.

TW  TANKS
Part #                    Description
83C-220 2.8        Gallon PT ASME Tank - 80 psi, 2 regulators / no agitation
83C-221 2.8        Gallon PT ASME Tank - 80 psi, regulators/agitation
83G-221 2.8        Gal. Galvanized Tank - 110 psi, 2 reg./agitation
83G-520 9.8        Gal. Galvanized ASME Tank - 110 psi, 2 reg./no agitation

*Larger Sizes & Stainless Steel are Available on Request.

.

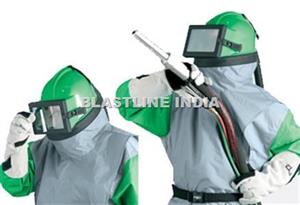

All abrasive blasting creates breathable particles of dust, which may include silica, and which
may lead to various diseases including silicosis, a lung disease that can be fatal.
Abrasive rebound of direct blast also may injure an unprotected operator.
Therefore, safety requires that those persons in the area of abrasive blasting always wear
properly selected and maintained, government approved respiratory equipment and
full protective clothing, from head to foot.

.

Airline filters can be used in conjunction with other compressor safeguards to supply cleaner air to supplied air-respirators. Air filters reduce pollutants in respirator air supplied to workers. These filters remove mists, water vapors and particulates from air supplied by compressor.

Air enters the filter through side inlet port. Moisture is removed by expansion in the filters outer chamber and passes out through a drain cock at the bottom of the unit. The air is then forced through a filter cartridge which contains several filtering materials including activated charcoat before it passes out through the top of the filter and into the hose to the helmet.

.

Blasting Gloves, Leather, red–pair.

Blast gloves are an everyday necessityin the blasting industry and Blastline brand leather gloves are crafted of rugged leather for strength and protection, and lined with a soft sock liner.

Leather Blast suit

Leather suits are of use in harsh blasting application when using ferrous abrassives such as teel
grit, shot and are ideal for cold weather environments.  Available in medium,  large, X large.

.

Respirator

Half Mask respirator single or double cartridge, with soft durable pliable rubber face piece, durable elastic head bands, deep chin cup for a roomy comfortable seal and easy exhaling.

.

Painting Hood Junior A

Assembled using totally clear acetate components. Light duty  full transparent airhood with
plastic clamps for disposable visors.

Painting Hood Junior  B

The Junior B airhood is built using a very flexible light weight polyurethane cape which covers thehead and shoulders. Disposable visors, fitted over the hood main visor, protects the visor against damage and/ or splashes. The head band is equipped with an exchangeable sweat bank and can be adjusted in width and height, for maximum comfort.

.

Disposable Coverall.
Breathable fabric. Includes hood, elastic cuffs and face band.

Head Sock
Spray head socks are comfortable, elastic-stretch fabric. Conforms to head contours. Close
fitting design.

Over Spray Foot Covers
Disposable footwear keeps clean to prevent paint from being tracked outside the painting area.

.

Compressed Air Powered Safety Lamp

Airturbo Lamp A-0445 provides a flood beam giving a well diffused 30° angle of light with the standard matt reflector, or with a polished reflector, a highly concentrated spot light. The lamp has a 15 mm toughened glass lens for high impact strength and pressure resistance.

.

Whip Check Safety Cables
Safety cables  should be used on all blast hose and air hose connections to reduce the danger caused by hose coupling failure. Safety cables are available from Blastline in two sizes: (1/8 dia -  20 1/4 length, 1/4 dia - 38 1/4 length) Designed for 1/2" to 1 1/4" OD hose and for 1 1/2 to 3" OD hose

.

Correct surface preparation is vital to ensure an effective, long-life coating system. Roughness or profile measurements reveal inadequate or excessive blast cleaning, which adversely affects subsequent painting operations. Pictorial standards are used to assess cleanliness.

.

Wet film gauges give the inspector a quick, low cost method of checking the thickness of freshly applied coatings. It is important that a coating is applied to the correct thickness. Applying too much wet coating will not only waste time and money, but there is also a possibility of the coating cracking during the curing process. Too little coating and there is a chance that the substrate will not be sufficiently covered.

To control process variables, it is often desirable to measure whilst the film is still wet. Wet film measurements are also useful for systems where the dry film thickness can only be measured destructively.

.

Gauges using magnetic principles offer a simple and effective method to measure coating thickness on a magnetic subtrate. Electronic coating thickness instruments can be supplied to measure:

Non-ferromagnetic materials on a ferrous sustrate. Any nonconductive material on a conductive substrate.
Destructive methods for both ferrous and non-ferrous materials on non-conductive surfaces such as wood, concrete, plastic or glass using a test employing a precision cutter and optical measurement.

.

Testing adhesion or bond strength of the coating to the subtrate is imperative for successful coating procedures.

Elcometer 106 Pull off Adhesion Tester

The Elcometer 106 adhesion tester - easy to operate and fully portable, provides a numerical value for adhesion. Applications include: paint or plasma spray on bridge decking, coatings on steel, aluminium or concrete, etc.

Comes in a carrying case - ideal for site tests
Hand operated so you don't have to worry about a power supply!

Elcometer 109 Tensile Adhesion Tester

The Elcometer 109 Push off Tensile Adhesion Tester provides the operator with a means of carrying out a simple pass/fail test of the adhesion of the coating against a specification limit.
Non-destructive*
Easy to use
No Calibration required
Colour coded certified tensile dollies
Robust and lightweight
Adapter available to allow use with the P.A.T. tester according to (Norwegian) NORSOK Standard M-501


* Non-destructive if coating is within specification and the tensile dolly breaks. Only a small button remains on the surface which can be sheared off.






.

Checking for flaws and holidays after application can help eliminate the early appearance of rust and surface deteioration and ensure an effective long life coating system. Premature corrosion of a substrate is usually due to the failure of the coating. A major cause of failure is the presence of flaws in the finished coating. Collectively referred to as a coating’s porosity the main types of flaw are: Runs and sags, Cissing, Cratering, Pinholes, Over coating, Under coating

The consequent cost of repairs and subsequent loss of production can be considerable. Early inspection for coating flaws will prevent the expense and inconvenience of a coating failure. Instruments used to detect coating flaws are referred to by many different names, these include spark or jeep testers, porosity or holiday detectors and pinhole testers. There are two methods of testing, wet sponge technique and high voltage technique. Elcometer has a range of products that meet your particular requirement.

.

Short Venturi - 1¼” entry, 50 mm thread
The reduced length of these nozzles makes them ideal for areas where access is limited.

50mm (2" UNC) Contract thread
1 ¼" (32mm) wide throat entry, long venturi
Tungsten Carbide inner
Aluminium jacket and thread
Wide pattern, nozzle ideal for light whip blasing

Short Venturi - 1¼” entry, 50 mm thread
The reduced length of these nozzles makes them ideal for areas where access is limited.

50mm (2" UNC) Contract thread
1 ¼" (32mm) wide throat entry, long venturi
Tungsten Carbide inner
Aluminium jacket and thread
Wide pattern, nozzle ideal for light whip blasing

.

The New Kestrel 3000 has been redesigned for even better performance and functionality!


Measures

Current Wind Speed
Maximum Wind Gust
Average Wind Speed
Air, Water & Snow Temperature
Wind Chill
Relative Humidity
Heat Stress Index
Dewpoint

Know Your Conditions

Measure environmental conditions quickly and accurately
Reliable, portable and easy to use
Quality by Design
All instruments and accessories are completely assembled in the USA
Innovative design for stability and accuracy in abrupt condition changes
Patented user-replaceable impeller
Quick response, external thermistor
Thermally adjusted humidity sensor

Features

Protective cover with sure-grip overmolding
Data hold function
Large easy-to-read display with backlight
Waterproof and floats
Lanyard and battery included
Two-year warranty
Humidity sensor can be recalibrated in the field with our Relative Humidity Calibration Kit


.

The ME Series of air hose fittings are used to adapt metal pipe on your equipment to accept 2-lug and 4-lug air hose fittings. Our 2-lug ME fittings have male NPT threads while the larger 4-lug ME fittings have female NPT threads.

.

Re-use your 2-lug and 4-lug hose end air hose fittings by assembling them with Boss clamps. Standard tools are used to secure the clamps to the hose, which eliminates having special banding tools when you're in the field.

.

The Elcometer 124 Thickness Gauge isused to measure the peak-to-valley height of a surface profile formed in the Elcometer 122 Testex Tape.

Available in both metric and imperial versions
Low cost, quick and easy to use

.

Whereas comparators allow the estimation of surface roughness, by both touch and sight, the Elcometer 122 Testex Tape allows the user to measure the peak-to-valley height of the profile and record it. Elcometer 122 Testex Tape consists of foam with a non-compressible backing. The foam side is rubbed into the surface providing a permanent mould of the profile. The Elcometer 124 Thickness Gauge is then used to measure the peak-to-valley height of a surface profile formed in Elcometer 122 Testex Tape.


The Testex Tape range is available in four profile ranges. It is important that the tape grade chosen is reflective of the profile under measurement.

.

Manual & Automatic Single Chamber Blast Machine
Smallest of the range holding approximately 25 kgs of expandable abrasive. The machine can be fitted with steel grit valve or flat sand valve. Ideal for remedial work, glass etching and general maintenance. Easily transported and has a blast time of approximately 10-15 minutes.

SPECIFICATION:

Machine capacity: 20 lts
Height: 28 inches
Diameter: 10 inches
Wheel size: 6 inches
Pipework: ½ inch B.S.P.

.

Blastline venturi blast cleaning nozzles are available with a choice of liners and in a wide range of styles, sizes and lenghts to suit all applications. Most are available with either a 32 mm diameter or 25 mm entry. Customers can also specify the size of locating threads; either fine thread (11.5 tpi) or the more popular large thread (50 mm), which provides easier location/removal from a nozzle holder. To ensure optimum life, all Blastline nozzles should always be used with the appropriate nozzle gasket.

.

ALUMINIUM & POLYURETHANE JACKETED TC NOZZLES - 11/4 " X 50MM
With all the excellent durability and wear resistance properties of aluminium jacketed nozzles, the tungsten carbide liner is encased in a soft nylon jacket which absorbs shock, reducing the threat of premature failure from liner damage.

The silicon carbide liner in these lightweight nozzles offer improved wear resistance and therefore a longer life than tungsten carbide equivalents. The soft nylon outer jacket absorbs shocks and therefore protects the liner against cracking.

.

ANGLED NOZZLE
'Angled' tungsten carbide blast nozzles are ideal for cleaning inacessible areas (e.g. pipe internals, behind angles) and are available with one, two or three outlets, each in a range of bore sizes. The aluminium jacket protects the liner from ricochet damage.

50mm (2" UNC) Contract thread
1 3/4" (20mm) wide throat entry, 80mm long
45º single or triple (equi-spaced) side outlets
Tungsten Carbide inner

.

Manufactured hypereutectoid steel abrasive
Grey, metal spheres
Used in airless wheel blast machines to clean foundry castings, surface polishing and shot peening
Also used in portable trackblast airless wheel blast machines for concrete floor preparation and profiling
Very long lasting
Can be recycled many times

Packed in 25kg bags
Special, stainless steel shot and high hardness specification shots available.

.

Manufactured cast steel abrasive
Blue grey, angular granules
High performance, cleaning and descaling abrasive
Used mainly in airless wheel blast machines
Sharp edges gradually round over as it wears
Can be recycled many times

Packed in 25kg bags
Standard GL hardness grit
Special GP hardness and other specifications available

Steel grit is a hard, angular abrasive that will clean and etch the hardest steel surfaces. Steel grit has a maximum breakdown resillience, so with proper recycling equipment, steel grit can be re-used hundreds of times.

.

Metal-refining industry, waste, by-product
Shiny or dull, dark brown to black, irregular particles
Medium performance abrasive
Tends to be dusty and shatter on impact
Limited use for ultra hibuild coating removal

Coal slag will blast off the toughest coatings so you can prepare surfaces right the first time. Achieve consistent, high quality performance that you demand in a coal slag abrasive, Coal slag is tough, clean and economical.

.

Metal-refining industry, waste, by-product
Shiny or dull, dark brown to black, irregular particles
Medium performance abrasive
Tends to be dusty and shatter on impact
Limited use for ultra hibuild coating removal

.

Garnet is a hard, heavy, durable abrasive. It can be recycled up to 5 times without a loss in
performance. Garnet can be used for cleaning steel in various applications including ship building and repair, tanks, offshore platforms, and pipelines. It is also used to provide surface finish for powder coaters. Garnet has the following advantages & benefits:

Inert, natural mineral
Pinkish to reddish-bron, sub-rounded grains
High performance, low dust abrasive
Ideal for industrial coating work with a selection of grades to suit various applications. e.g. new steel, whipblasting, full blasting, heavy rust removal, feathering, etc.
Economical, single use abrasive
May also be recycled.

.

Manufactured glass abrasive
Miniature, translucent glass spheres
Spherical beads impact a stain or matte 'shotpeened' finished to work surface
Widely used in hand cabinets for surface cleaning rather than surface etching
Can be recycled

Packed in 25kg bags
MILSPEC beads also available

To obtain a finish with no profile, Glass Bead is the product of choice. The non-metallic spherical beads provide effective cleaning, polishing, deburning or peening of metal, plastic or rubber materials.

.

ASTRO Abrasive Blasting helmet

The Astro is the number one choice economy abrasive blasting helmet which meets safety standards worldwide including Australia, Europe and USA. Astro is designed as a lightweight, robust helmet to help reduce fatigue, reduce downtime replacing parts and increase your roductivity.


.

Surface Profile Comparators
Comparators allow the estimation of surface roughness, by both touch and sight.

        • Available in both Grit and Shot
        • Metric units only

Illuminated Magnifier
Comparators allow the estimation of surface roughness, by both touch and sight.

Three versions: sand, shot and grit
Five different grades of roughness in each comparator
Designed to be used with the Elcometer 127 Illuminated Magnifier
Available in Imperial units only.

.

Pressure Washer BL Series Electric Direct Drive: 3.0 gpm @3000 psi, 6.0 h.p. 230V/26A with AR pump. Revolutionary aircraft grade aluminum frame (no welds) lifetime warranty, 50 mesh inlet filter, adjustable pressure pneumatic tires, dual padded shock absorbing feet, 3/4" cold-rolled steel axle, thermo-sensor (prevents overheating in bypass mode) Commercial/Industrial motor, 1725 rpm low speed pump, amd 12' cord (no plug) Single phase electric power. Includes; Gun wand assembly w/quick connects, 50' hose, chemical intector assembly w/quick connect, 4 color coded quick connect spray tips, chemical nozzle.

.

The Ultra 395 ’s reliability and performance has made it Graco ’s most popular small electric sprayer. Proven technology and design make it perfect for professionals who spray daily with a wide range of coatings.

Endurance Pump for exceptional pump life with QuikAccess intake valve to easily clean or clear debris.
SmartControl 1.0 Pressure Control - delivers a consistent spray fan.
Enclosed DC Motor - protects internal motor components.
Swivel Inlet Suction Hose - solid aluminum construction and no tools removal of hose.
Easy Out Pump Filter - reduces tip clogs and ensures quality finish.

.
