Description / Specification of Rotary Automatic Marking Machine

We are involved in offering a wide range of Rotary Automatic Marking Machine to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Rotary Automatic Marking Machine. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

.

Description / Specification of Rotary Automatic Online Hot Colour Marker Machine

We are involved in offering a wide range of Rotary Automatic Online Hot Colour Marker Machine to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Rotary Automatic Online Hot Colour Marker Machine. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

.

The AEROMEC Automatic Marking Machine is expressly designed to mark in colour all types of polyethylene pipes, rigid PVC Pipes during extrusion process. The AEROMEC Machine do not have any induction motor to drive, it requires power only for heating. Scope of marking by AEROMEC Machine Model No. AMC-210 is 12mm to 315mm outside diameter. The marking is done at every one meter on the Pipes by using PANTORGRAPHED BRASS / SS STEREOS (STAMPS) fixed on the heating wheel. The stereos are heated by using Electronic percentage differential circuit which adjusts the temperature. It is designed to colour mark by using a coloured polyester tape placed between the stereos and the Pipes to be marked. SPECIFICATIONS Characters (Stereos) size maximum 15 mm.. Dimensions : H-1.5m X W-0.9m X D-0.8m. Total weight approximately 200 Kgs

.

.

Aeromec 3/4 digit counter with manual zero settings, can print counted meter readings on Pipe during extrusion process.
Can be used optionally with the Aeromec marker Model No. AMC 210, AMC650 and AMC 210D

.

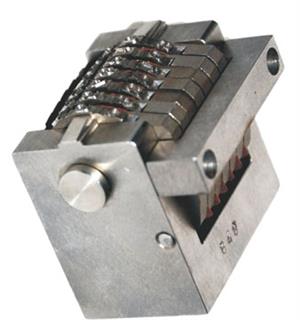

Aeromec seven digit coder with manual  settings, can print Batch No. on Pipe during extrusion process.
Can be used optionally with the Aeromec marker Model No. AMC 210, AMC650, AMC707 and AMC 210D

.

The Rotary Automatic Hot Colour Marking machine is specifically designed to mark in colour all type of polyethylene pipes, rigid P.V.C. Pipes, PVC/HDPE/PV sections during extrusion process.

• The Aeromec machines are fully automatic without any induction motor. Optional Motor Driven Models are available for OFF-LINE printing.
•  Area of marking is from 10mm to 315mm outside diameter of pipes.
•  Option of periodical marking can be provided on request by attaching an microprocessor based digital counter with pneumatic arrangement.
•  Periodical marking can be set up to 3 digit.


.

.

Quick coupler for fast connection of Hydraulic unit & Basic unit. Specially designed clamping jaws, allows clamping & aligning of slightly oval Pipes. Removable fourth jaw, allows making of welds in difficult to reach area.

.

AEROMEC workshop welding machine specialized for butt-weld for Hdpe Pipes and PP Pipes segment. Aeromec welding machines are extensively designed as per International Standards to suits Indian environment and usability.Machines are enhanced for any layman to use with bare minimum controls.

.

AEROMEC Specially used for Cutting Pipe Segment in HDPE,LDPE,PP,PE,PVC & Other Thermo Plastic Material used fo the production of Bends, Tees. Cross,Wyes and other Fabrications. Aeromec Workshop Models and band saw are designed to get very accurate angle of welding and cutting. Cutting Range(O.D): 90mm to 315mm 0 0 Cutting angle: -45 to 60 ( Continuously Swivelling) Total Power: 1.5kW Power Supply: 3-Phase/440 Volts Bi-Metal Band-saw Blade: Length: 3410mm Width: 13mm Thickness: 0.9mm TPI: 6/10

.

omplex, Chinchpada, Vasai-Waliv Rd.,Vasai (E), Dist-Thane-401208 Phone:+91 8600522290-97 email:mail@aeromec.in website: www.aeromec.in SPECIFICATIONS Dimensions : H-1.8m X W- 0.8m XD-0.8 M. Total weight approximately 100 Kgs Model - LFP-30 Best Marking Effect: With the fine and thin laser beam it can provide the best marking effect among all the laser machines. Especially best in smallest character marking. Depth controlled Marking: According to the target material fiber laser can mark 0.01mm to 1.0mm of depth with speed and power control. So it’s suitable for the industries which has high requirement to the depth and accuracy. Higher Accuracy: fiber laser can reach up to 0.001mm precision. No consumables: fiber laser systems have a decisive advantage: they are virtually maintenance-free and it can be used for 5-6 years without any consumables. Low subsequent costs: because of a very long lifecycle of 50,000-60,000 operating hours! Use Integrated Air Cooling: Fiber laser uses integrated air cooling, and the cooling effect is excellent. Also, no need to maintain air cooling, save many cost and energy. -:Typical application areas for the fiber laser :- Engraving and color change marking (annealing) of metals color marking of untreated plastics and plastics treated with laser additives Layer removal marking. Coated substrates T

.

The AEROMEC Laser Marking Machine is expressly designed to mark Metal, wood and Plastics with different shapes and sizes. Aeromec Lasers can be fully customized as per requirement. Best Marking Effect: With the fine and thin laser beam it can provide the best marking effect among all the laser machines. Especially best in smallest character marking. Depth controlled Marking: According to the target material fiber laser can mark 0.01mm to 1.0mm of depth with speed and power control. So it’s suitable for the industries which has high requirement to the depth and accuracy. Higher Accuracy: Fiber laser can reach up to 0.001mm precision. No consumables: Fiber laser systems have a decisive advantage: they are virtually maintenance-free and it can be used for 5-6 years without any consumables. Low subsequent costs: Because of a very long life cycle of 70,000-80,000 operating hours! Use Integrated Air Cooling: Fiber laser uses integrated air cooling, and the cooling effect is excellent. Also, no need to maintain air cooling, save many cost and energy. Typical application areas for the fiber laser Engraving and color change marking (annealing) of metals. Color marking of untreated plastics and plastics treated with laser additives. Layer removal marking. Coated substrates.

.

.
