| Thunder With Multihead Weigher Or Servo Auger Or Cup Filler |
General Information
A high speed vertical form, fill and seal machine for producing centre sealed pouches handling all types of free flowing / non-free flowing powders / granules / solids.
The Wraptech Thunder handles a single reel film stock. Max. reel dia. is 530 mm on 76 mm core. The machine has the facility to be provided with a variety of filling heads. Draw down of the film is through vacuum pressed draw down belts controlled through an Servo motor drive. The length of the bag is controlled by print registration system which is PLC based. For unprinted film, the bag length can be adjusted from the single touch key pad provided on the front panel.
|
|
|
|
|
| Extra Heavy Duty Bagging Machine |
General Information
A vertical form, fill and seal machine for producing centre sealed pouches handling all types of free flowing / non-free flowing powders/granules.
The model MB-250 EV handles a single reel film stock. Max. reel dia. is 530 mm on 76 mm core. The machine has the facility to be provided with a variety of filling heads.
Draw down of the film is through draw down belts controlled through an Electromagnetic Clutch Brake combination. The length of the bag is controlled by print registration system which is PLC based. For unprinted film, the bag length can be adjusted from the single touch key pad provided on the front panel.
|
|
|
|
|
| Auger Filler Servo Driven |
General Information
A vertical form, fill and seal machine for producing centre sealed pouches handling all types of free flowing/non-free flowing powders.
The model MB-250 handles a single reel film stock. Max. reel dia. is 530 mm on 76 mm core. The machine has the facility to be provided with a variety of filling heads. Draw down of the film is through draw down belts controlled through a servo motor. The length of the bag is controlled by print registration system which is PLC based. For unprinted film, the bag length can be adjusted from the single touch key pad provided on the front panel.
|
|
|
|
|
| Auger With Clutch Brake |
General Information
A vertical form, fill and seal machine for producing centre sealed pouches handling all types of free flowing/non-free flowing powders.
The model MB-250 handles a single reel film stock. Max. reel dia. is 530 mm on 76 mm core. The machine has the facility to be provided with a variety of filling heads. Draw down of the film is through draw down belts controlled through a servo motor. The length of the bag is controlled by print registration system which is PLC based. For unprinted film, the bag length can be adjusted from the single touch key pad provided on the front panel.
|
|
|
|
|
| Head Weigher |
General Information
A vertical Form Fill and seal machine for producing central sealed sachets handling all types of free flowing / non-free flowing owders / granules.
Model MB 25 & MB 250 handle single reel film stock, having 76 mm core diameter. Max. Reel width is 330 mm for MB 25 and 530 mm for MB 250. Draw down of the film is through draw down belts, driven by Servo Motor drive. The length of the bag is controlled by Print registration system, which is PLC controlled. For unprinted film, the bag length can be adjusted from the single touch key pad provided on the front panel.
|
|
|
|
|
| Cup Filler |
General Information
A vertical Form Fill and seal machine for producing central sealed sachets handling all types of free flowing / non-free flowing owders / granules.
Model MB 25 & MB 250 handle single reel film stock, having 76 mm core diameter. Max. Reel width is 330 mm for MB 25 and 530 mm for MB 250. Draw down of the film is through draw down belts, driven by Servo Motor drive. The length of the bag is controlled by Print registration system, which is PLC controlled. For unprinted film, the bag length can be adjusted from the single touch key pad provided on the front panel.
|
|
|
|
|
| 14 Head Weigher |
A vertical Form Fill and seal machine for producing central sealed sachets handling all types of free flowing / non-free flowing owders / granules.
Model MB 25 & MB 250 handle single reel film stock, having 76 mm core diameter. Max. Reel width is 330 mm for MB 25 and 530 mm for MB 250. Draw down of the film is through draw down belts, driven by Servo Motor drive. The length of the bag is controlled by Print registration system, which is PLC controlled. For unprinted film, the bag length can be adjusted from the single touch key pad provided on the front panel.
|
|
|
|
|
| M.B 25 C.F |
A vertical form, fill and seal machine for producing centre sealed sachets handling all types of free flowing/non-free flowing powders/ granules.
The model MB-25 handles a single reel film stock. Max. reel width is 330 mm on 76 mm core. The machine has the facility to be provided with a variety of filling heads. Draw down of the film is through draw down belts controlled through a Electromagnetic Clutch Brake combination. The length of the bag is controlled by print registration system which is PLC based. For unprinted film the bag length can be adjusted from the single touch key pad provided on the front panel.
|
|
|
|
|
| Mb 20 Cf With Cup Filler |
A vertical form, fill and seal machine for producing centre sealed sachets handling all types of free flowing/non-free flowing powders/granules.
The model MB-20 handles a single reel film stock. Max. reel width is 300 mm on 76 mm core. The machine has the facility to be provided with a variety of filling heads. Draw down of the film is through puller wheels controlled through a Electromagnetic Clutch Brake Combination. The length of the bag is controlled by print registration system which is PLC based. For unprinted film, the bag length can be adjusted from the single touch key pad provided on the front panel.
|
|
|
|
|
| Mb 20 Af With Auger Filler |
A vertical form, fill and seal machine for producing centre sealed sachets handling all types of free flowing/non-free flowing powders/granules.
The model MB-20 handles a single reel film stock. Max. reel width is 300 mm on 76 mm core. The machine has the facility to be provided with a variety of filling heads. Draw down of the film is through puller wheels controlled through a Electromagnetic Clutch Brake Combination. The length of the bag is controlled by print registration system which is PLC based. For unprinted film, the bag length can be adjusted from the single touch key pad provided on the front panel.
|
|
|
|
|
| Two Lane |
General Information
A vertical Form, Fill and Seal machine for producing 4-side sealed sachets handling all types of free and non-free flowing powders / granules, liquids, creams or pastes.
The machine speed is indefinitely controlled from 0-50 cycles / minute. Single reel film laminate stock reel feed.
|
|
|
|
|
| 4 T Four Lane |
General Information
A vertical Form, Fill and Seal machine for producing 4-side sealed sachets handling all types of free and non-free flowing powders / granules, liquids, creams or pastes.
The machine speed is indefinitely controlled from 0-50 cycles / minute. Single reel film laminate stock reel feed.
|
|
|
|
|
| 6 T Six Lane |
A vertical Form, Fill and Seal machine for producing 4-side sealed sachets handling all types of free and non-free flowing powders / granules, liquids, creams or pastes.
The machine speed is indefinitely controlled from 0-50 cycles / minute. Single reel film laminate stock reel feed.
|
|
|
|
|

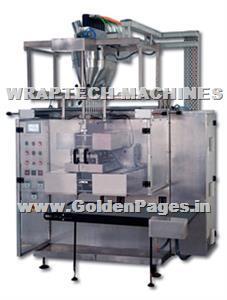

| 8 T Eight Lane |
A vertical Form, Fill and Seal machine for producing 4-side sealed sachets handling all types of free and non-free flowing powders / granules, liquids, creams or pastes.
The machine speed is indefinitely controlled from 0-50 cycles / minute. Single reel film laminate stock reel feed.
|
|
|
|
|
| Mb 200 25 Cf |
A vertical form, fill and seal machine for producing centre sealed sachets handling all types of free flowing / non-free flowing powders / granules.
The machine speed is infinitely controlled from 20-70 cycles/ minute. Actual speed depends upon laminate and product.
Single reel film laminate stock reel feed. Max reel dia. 400 mm on 76 mm core ID. Product dosing by cup filler. All parts in contact with product are made of high quality stainless steel.
|
|
|
|
|
| Mb 50 Af |
Description / Specification of Mb 50 Af
We are involved in offering a wide range of Mb 50 Af to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.
We introduce ourselves as an eminent trader and supplier of an extensive array of Mb 50 Af. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:
Sturdy design
Highly durable
Application specific design
|
|
|
|
|
| Top Film Loading Rotary Flow Wrap Machine |
Application
Application for packing various solid regular objects, such as Monocake, Bread, Biscuits, Candies, Rices Rispies Treats, Snow Cake Custard Cake Chocolates, Soaps, Detergents, Chikkies etc.
|
|
|
|
|

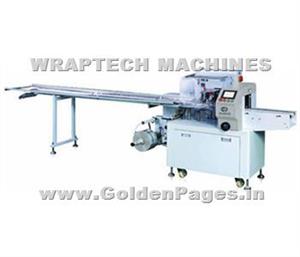

| Bottom Film Loading Rotary Flow Wrap Machine |
Application
Applicable for packing various irregular objects, Adhesive objects and Solid objects, such as food including Egg Rolls, Sausages, Squids, Instant noodles, Snow cakes, Preserved Fruits, Jelly drops, Soaps, Detergents, Chikkies, Tissues etc.
|
|
|
|
|
|
|
|
|
