Relay Interfacing Modules |
Application
1 Changeover Relay Interface Module with Option of fuse & fuse fail Indication used to Interfacing PLC / Drive / DCS Digital Outputs to field or field devices. Outputs are Galvanically isolated through Relays.
Component Specification
Relay: 24VDC Coil, 1 Changeover
Relay Socket: 1 Changeover PCB solderable type
Terminals*: Screw type suitable for 2.5Sq.mm conductor
PCB: Glass Epoxy double side PTH with Lacquer Coating
|
|
|
|
|
Passive Interface Modules |
Application
Passive Interface Modules are used to convert the conventional wiring into Modular Wiring. It consists of FRC Male connector at one side and screw type/screw-less terminals at the other side.
Component Specification
Plug-in type: FRC/IDC Available in 16/20/26/34/40/50/64 positions.
Terminals*: Screw type suitable for 2.5Sq.mm conductor.
PCB: Glass Epoxy double side PTH with Lacquer Coating.
|
|
|
|
|
Power Distribution Module |
Application
Power Distribution module is simple distribution of Power supply into 4/8/16 channel. It replace the conventional control bus bar distribution into Modular Power Distribution. Available in 24VDC/110VAC/230VAC with fuse, fuse fail indication & ON/OFF control in each channel. Universal Din rail Mountable.
|
|
|
|
|
Fan Failure Module |
Application
Fan Failure Alarm Module is used to detect the failure of Fan inside the panel. Alarm Contact for detection of fan failure. Provision of selection of 1 or 2 fans, Temperature Monitoring & 4-20mA Output.
Component Specification
Terminals*: Screw type suitable for 2.5Sq.mm conductor
PCB: Glass Epoxy double side PTH with Lacquer Coating
|
|
|
|
|
Utility Module |
Application
Utility Module is Din rail Mountable. It has provision of connection of front & rear Tube lights & fans. Separate Connection for 110VAC Fans. ON/OFF Control & fuse protection for Tubes & fans. Universal Utility Socket with Rocker switch with inbuilt indication.
Component Specification
One Incoming & two Outgoing Terminals for connection of front & rear Tube light.
One Incoming & two outgoing terminal for connection of front & rear fan.
Two Spare Terminals to take IN & OUT.
|
|
|
|
|
Diode Oring Module For S.M.P.S Redundancy |
Application
Diode Oring Modules are used when Two SMPS are connected in Parallel (Redundancy), available in 10 Amp / 20 Amp /40 Amp/ 70 Amp. The PIV of Diodes are 1200V.
Component Specification
One Incoming & two Outgoing Terminals for connection of front & rear Tube light.
One Incoming & two outgoing terminal for connection of front & rear fan.
Two Spare Terminals to take IN & OUT.
|
|
|
|
|
Digital Input Field Interface Module With Fuse And L..Ed Indication |
Application
DI Field Interface Modules with fuse & LED Indication in each path used to Interface between PLC / DCS Digital Inputs to field or field devices such as Proximity sensors, Limit Switch i.e. Potential free contacts etc.
Component Specification
Fuse Link: 20mm Glass fuse, (Fuse Base-Vertical/Horizontal).
Signal Status LED: 3 mm Green.
Terminals: Screw type suitable for 2.5Sq.mm conductor.
PCB: Glass Epoxy double side PTH with Lacquer coating.
|
|
|
|
|
Digital Input Interface Module With Opto |
Application
DI Field Interface Modules with Opto-isolator used to Interface between PLC /DCS Digital Inputs to field or field devices such as Proximity sensors, Limit switch i.e. Potential free contacts etc. Inputs are Optically- Isolated.
Component Specification
Isolation Device: Opto-Isolator in each channel
Terminals*: Screw type suitable for 2.5Sq.mm conductor
PCB: Glass Epoxy double side PTH with Lacquer Coating
|
|
|
|
|
Digital Input Interface Module With Fuse And Common Fuse Fail Alarm Contact |
Application
DI Field Interfacing Module having Fuse/ Fuse-blown indication per channel & Common Alarm Circuit used for interfacing PLC Digital output to field or field devices.
Component Specification
Terminals*: Screw type suitable for 2.5Sq.mm conductor.
PCB: Glass Epoxy double side PTH with Lacquer Coating.
|
|
|
|
|
Digital Input Interface Module With Fuse And Wire Break |
DI Field Interface Modules with Fuse & LED indication in each channel used to interface between PLC/DCS Digital Inputs to field or field devices such as Proximity Sensor, Limit Switch i.e. Potential free contacts etc.
|
|
|
|
|
Digital Input Interface Module With Slim Relays |
DI Field Interface Modules with 1CO Slim Relays used to interface between PLC/DCS Digital Inputs to field or field devices such as Proximity Sensor, Limit Switch i.e. Potential free contacts etc Inputs are Galvanically Isolated through Relay.
|
|
|
|
|
Analog Input Field Interface Module With Fuse And Surge Protection |
Application
AI Field Interface Modules with option of fuse & MOV for surge protection in each Channel and provision of selection of 2-Wire / 4-Wire using DIP switches used for interfacing PLC/DCS Analog Inputs with field or field devices such as 2/4wire current transmitters etc.
|
|
|
|
|

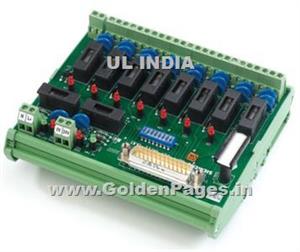

Analog Input Field Interface Module With Fuse And Fuse Fail L.E.D Indication |
AI Field Interface Modules with option of fuse, MOV for surge protection & fuse fail indication LED in each Channel and provision of selection of 2-Wire / 4-Wire using DIP switches used for interfacing PLC/DCS Analog Inputs with field or field devices such as 2/4wire current transmitters etc.
|
|
|
|
|
Analog Input Redundant Passive Interface Module |
AI Redundant Field Interface Modules with option of fuse in each path & provision of selection of 2 Wire / 4 Wire using DIP switches used for interfacing PLC/DCS redundant analog Inputs to field or field devices such as 2/4wire current transmitters etc. Accept one Input (4-20mA) from field & delivers 2 Outputs of 1-5V to System.
|
|
|
|
|
Analog Input Field Interface Module With Channel To Channel |
Application
AI Field Interface Modules with option of provision of selection of 2Wire/4Wire using short link jumpers used for interfacing PLC/DCS Analog Inputs with field or field devices such as 2/4 wire current transmitter etc.
|
|
|
|
|
Interface Module With Option Of Fuse |
Description / Specification of Interface Module With Option Of Fuse
We are involved in offering a wide range of Interface Module With Option Of Fuse to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.
We introduce ourselves as an eminent trader and supplier of an extensive array of Interface Module With Option Of Fuse. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:
Sturdy design
Highly durable
Application specific design
|
|
|
|
|
Round F.R.C Cable |
Application
Round Multicore prefab FRC female (Flat ribbon Connector)
Component Specification
Connector Type: 10, 20, 26, 34, 40, 50 Pin.
Cable Type: 10, 20, 32, 36, 52 core round cable.
*Note: User should specify cable length in meter.
|
|
|
|
|
Pin Honda Modules For Robot Interfacing. |
Application
50 Pin Honda modules are used for Robot Interfacing.
Component Specification
Plug-In type: 50 Pin Honda Connector.
Terminals*: Screw type suitable for 2.5Sq.mm conductor.
PCB: Glass Epoxy double side PTH with Lacquer Coating.
|
|
|
|
|
S.T.P Cables |
Description / Specification of S.T.P Cables
We are involved in offering a wide range of S.T.P Cables to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.
We introduce ourselves as an eminent trader and supplier of an extensive array of S.T.P Cables. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:
Sturdy design
Highly durable
Application specific design
|
|
|
|
|
Hart Patch Cards And Cables Harness |
Application
16 Channel connection board for K-System HART Multiplexer.
Component Specification
Plug-In type: 26 Pin Yamachi Connector.
Terminals*: Screw type suitable for 2.5Sq.mm conductor.
PCB: Glass Epoxy double side PTH with Lacquer Coating.
|
|
|
|
|
Pulse Generator |
Application
The Pulse Generator with optical isolation is designed for checking of 16 SOE Digital Inputs of PLC. Here the output ‘ON’ time can be selected using DIP switch.
Component Specification
Terminals*: Screw type suitable for 2.5Sq.mm conductor.
PCB: Glass Epoxy double side PTH with Lacquer Coating.
|
|
|
|
|
P.L.C Wiring Solutions (Interfast) |
Description / Specification of P.L.C Wiring Solutions (Interfast)
We are involved in offering a wide range of P.L.C Wiring Solutions (Interfast) to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.
We introduce ourselves as an eminent trader and supplier of an extensive array of P.L.C Wiring Solutions (Interfast). Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:
Sturdy design
Highly durable
Application specific design
|
|
|
|
|
|
|
|
|
