A hi-tech capacitor with Stud Mounting Cylindrical construction with inert gas impregnated winding having very good KVAr to volume ratio.

Specification :

Conformance to Standards
IEC 60831 - 1 2 / 96
VDE 560-46 3/95.

Range:

PhaseCap : Single units from 5 to 50 KVAr.
Voltage : 230v to 800v.

Stud mounting cylindrical type Having very good KVAr to volume ratio.

Specification :

Conformance to Standards
IEC 60831-1 and 2/96, IS 13340

Range:

Single units up to 25 KVAr.
Voltage : 220v to 525v.

Description / Specification of Square Cap Capacitor

We are involved in offering a wide range of Square Cap Capacitor to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Square Cap Capacitor. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Features:

Innovative and Intelligent concept. User-friendly operations.
User friendly operation.
Large and Multi-functional LCD display (2 x 16 characters).
Recall function of recorded values.
Large measuring voltage range (L-L50 to 525 V).
Display of large number of system parameters including harmonics.RS 232 / RS 485 Interface Optional.
Two standard mounting dimensions (96 x 96 and 144 x 144 mm)
Available with both relay outputs (suitable for Contactors) and Transistor outputs are also aviailable.
Hybrid controller with both relay and transistor outputs are also available.
Powerful alarm otput.
Control modes: LIFO, FIFO and Self Optimized Intelligent control.

Features:

Largest range.
Excellent damping of inrush current by the use of leading contacts with wiper function and special resistors.
Longer useful life of main contacts of capacitor life.
Soft switching life of main contactor and thus longer useful life.
Weld resistant up to a possible peak inrush current of 200 times the rated capacitor current.
Enhance mean life expectancy of PFC systems.
Reduce Ohmic losses.
Tamper proof and protected resistors.
Suitable for use with or with out detuned reactors.
Easy access for cable connection.

Range:

Effective filter output 5 KVAr to 100 KVAr.
Filtering factor. (5.67%, 7%, 14% corresponding to tuning frequencies of 210 Hz, 189 Hz and 134 Hz for the base of 50 Hz)
Rated Voltage : (230 V to 690V)
Available in three designs
1. Aluminium strip Wound.
2. Aluminium Foil Wound.
3. Copper Conductor Wound.

Features:

Advanced harmonic profiling, unbalance, flickers are measured and logged.
Suitable for monitoring quality of power which helps in system improvement measures.
Enhance reliability.
Reduce operating cost.
Helps to conserve energy
Understand equipment failures, etc.
Compact size and light weight.

Specification of APFC Panel :

Rated Voltage : 380 / 400 / 415 / 440 / 690 V
Rated Frequency : 50 / 60 Hz.
Rated Out Put : 20 - 1000 KVAr.
Configuration : Delta / Star floating / star grounding.
Number of steps : 1-16
Step Distribution : Equal / Binary / Unequal
Series Reactor : 0%, 0.2%, 5.6%, 7%, 14%
Reactor winding : Copper / Al.strip / Al. foil.
Switching device : Thyristor / Capacitor duty contactor.
Panel Type : Standard / Modular / Compartmentalized
Branch Protection : HRC fuse / semiconductor fuse / SFU / MCCB
Capacitors : Resin filled / Gas filled / APP.
Protections : OV / UV / SC / EF / OT
Controller : BR 4000 / BR 5000 / BR 6000.
Measurinng CT : 1 or 3
Data logging : Through controller internal memory(select modules).
Communication interface: Optional (RS 232, RS 585, Profibus).
Power analyzer : Optional.

Medium Voltage Power Factor correction directly related to the technical management of transmission and distribution network. The major benefits are :


Power quality . Increased voltage profile in substations and at receving ends.

Improving the operating cost of an installation. Decreasing reactive power demand and therefor reduction of apparent power with two highly important aspects.
  Reducing losses
  Increasing the performance of transformers and installation.

Specification :

Rating Voltage : 11 KV.
Highest System Voltage : 12 KV
Rated frequency : 50 / 60 Hz.
Number of phases : 3
BIL : 20 KV AC / 60KV peak / 28 KV AC / 75 KV peak.
Rated Current : 200 A / 400 A.
Rated Single bank capacitor switching current : 50 A / 75 A
Rated short time current : 4.5 KA / 6KA / 10 KA 1 second.
Peak making current : 9 KA / 15 KA peak.
Electrical endurance : 10000 operations.
Mechnical eendurancec : 25000 operations.
Mechnism : Solenoid.
Controller type : Single Step / Multii step.
Installation : Out door / Indoor
Mounting : Pole mounted / Structure mounted.
Power Interface : 6 bushing / 7 bushing
Indication : Switch ON / OFF.

Specification :

Size / Rating : 100 to 1200 KVAr.
Rated Voltage : 12 KV
Number of Stepes : Single
Control mode : Auto / Manual.
Control Parameter : Load current / Load power factor.
Damping reactor : 0.2 % and 6 % (optional)
Configuration : Delta / Star.
Installatio : Out Door.

Features:

Self Powered highly reliable, suitable for unmanned lines requiring low services.
Suitable for direct out door installation as designed with IP 55 ingress protection.
The complete unit is self contained and dose not need any auxiliaryy supply.

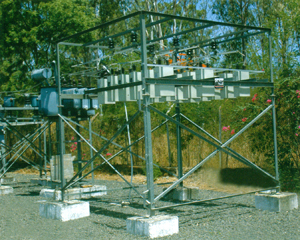

EPCOS offeres turnkey solutions for station type Reactive Power Compensation Systems. These are open execution shunt capacitor banks of various ratings and configurations. The banks are fixed either special capacitor switches or Vacuum circuit breakers for switching. The capcitor switches are designed for multi-step switches are desiged for multi-step switching and have capability of switching parallel connected capacitor banks with appropriate current limiting reactors. The banks are complete with PT, CT, NCT / RVT, Isolators, Lightning arrestors, Series Reactors and Circuit breaker with customized Control and Relay panel.

Specification of APFC Panel :

Size / Rating : 200 to 10000 KVAr.
Rated Voltage : 6.6 / 11 / 22 / 33 KV
Number of Stepes : 1 - 8
Control mode : Auto / Manual
Control Parameter : Load power factor
Damping reactor : 0.2 % and 6 % (optional)
Configuration : Delta / Star / Double star
Installation : Indoor / Out door

SALIENT FEATURES

MPP FILM
TIBCON manufactures MPP Film for capacitors which is made on Leybold High Vacuum Roll-Coating Plants (Germany) in a technical tie-up with ICAR s.p.a., Italy. The Quality system conforms to ISO 9002.

HEAVY EDGE FILM
TIBCON Capacitors incorporate MPP Film made out of bilayer metallization in which heavy edge of zinc is formed to provide better bonding between the electrode and the end spray. Heavy edge has high current carrying capacity and ensures better withstand of the electro-mechanical stresses caused by switching surges.

SELF - HEALING PROPERTY
TIBCON Capacitors have excellent self healing property whereby any electrical short circuit inside the element is cleared in milliseconds without affecting the normal operation of the capacitor.
