This Product group is an excellent choice for direct insertion heating of platens, dies, various metal shapes and products requiring maximum amount of heat within a limited or short space. With the addition of either threaded or leak tight mountings/fittings these heaters are also an excellent choice for direct immersion into liquids.

[Cartridge heater]


Heater diameter is varying precise in designing the heaters. Units without mounting /fittings are designed to fit holes with a diameter tolerance of + .0254 mm - minus. 000 of nominal heater diameter. For example a heater of 12.7 mm i. e. ½"diameter is designed to fit a hole size of 12.71 mm -0.000". Higher rated watt densities on the heaters combined with larger hole clearances will reduces the heater life.

Holes preferably rimed to accept heaters should be rimed all the way through are advisable. Corrosion or scaling may make heater replacement difficult in blind holes.

Do not allow the heated portion of heater to operate in air or an air pocket. Do not operate any standard cartridge heater in open air.

Straightness or total run-out along the axis can be held to plus or minus 0.5 mm per 25 mm for length upto 100 mm & 1 mm per 25 mm upto 300 mm. Heaters are normally flexible enough to fit into long holes.

Heaters installed into moving blocks or dies should have provisions for preventing the leads from being damaged from motion.

Cartridge heaters with liquid tight mountings/fittings could be used for liquid application. Heaters mounted in a tank or vessel should be mounted horizontally near the bottom. Heater must be in liquid all the time. Product, process, or system should include a device to protect heater from operation if no liquid covering the heater. System should be designed to avoid air entrapments or pockets of overheated liquid around the heater.

Heating performance can be improved by agitation of liquid in the tank. In all cases, due to normal high temperature attainable on any metal-sheathed heater, avoid contact with combustible surface or materials.

As with any electrically heated product, the proper application of heater and temperature control is the most important factor in optimum performance, efficiency. No two systems are alike It is extremely important that attention has been given to the total product or system design as well as operating environment.

Available in wide range of diameters & lengths  in  required  voltage & wattage  as per application and generally available from 500 watts to 3000 watts or more.
Generally used for Quick heating in dryers / ovens /  pharmaceutical, textile, chemical, electroplating plants, ceramic industries where these are used  frequently.
When procelain  heaters are covered by metal / glass tubes
are used as Immersion heater for water / acids / chemicals.

Generally when a cartridge or porcelain heater is covered with metallic sheath such as Mild Steel, stainless Steel,Titanium,glass or any other material and submerged into liquids are known as “Immersion” heaters.
These are available in various diameters as well as wattage and Voltage.
Photograph of typical “Immersion” heater in stainless Steel sheath with threaded flange at end with replicable cartridge for minimizing downtime.

These heaters are generally used in chemical tanks, where highly corrosive acids like sulphuric, Nitric as well as Hydrochloric and alkalis like Sodium Nitrate etc are used since these chemicals dose not react with glass.
As this heaters are made out of Quartz glass care has to taken while handling.

Description / Specification of Cartridge Heater With Perforated Sheet

We are involved in offering a wide range of Cartridge Heater With Perforated Sheet to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Cartridge Heater With Perforated Sheet. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Description / Specification of Cartridge With Cable Exit

We are involved in offering a wide range of Cartridge With Cable Exit to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Cartridge With Cable Exit. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Description / Specification of Cartridge With Flange At End

We are involved in offering a wide range of Cartridge With Flange At End to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Cartridge With Flange At End. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Description / Specification of Cartridge With Sleeves With Ceramic Insulation

We are involved in offering a wide range of Cartridge With Sleeves With Ceramic Insulation to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Cartridge With Sleeves With Ceramic Insulation. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Description / Specification of Cartridge With Cable Connections Inside

We are involved in offering a wide range of Cartridge With Cable Connections Inside to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Cartridge With Cable Connections Inside. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Description / Specification of Cartridge With Flexible Conduit Connection

We are involved in offering a wide range of Cartridge With Flexible Conduit Connection to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Cartridge With Flexible Conduit Connection. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Description / Specification of Half Round Cartridge Heater

We are involved in offering a wide range of Half Round Cartridge Heater to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Half Round Cartridge Heater. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Description / Specification of Hollow Cartridge Heater

We are involved in offering a wide range of Hollow Cartridge Heater to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Hollow Cartridge Heater. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

The component tubular heaters depending on the mounting provisions and configurations are suitable for use in solids, liquids, air as well as gases. These heaters provide the most design versatility of any electric heater construction. Tubular heaters because of their compacted MgO insulation construction can reach fairly high sheath temperatures, however the successful application of these heaters are primarily dependent on the end use.

A major advantage of Tubular heaters is the ability to form into custom shapes. Bend in radius as small as twice the tube diameter depending on the tube material, configuration and application.

Solids heating can be accomplished by clamping of Tubular heaters to the heated object surface. Good surface contact is required in order to prevent localized overheating. Due to round cross section of the heater, it is always advisable to put a groove into the solid and the heater is pressed into the groove. Heaters can be configured with a flat surface pressed into the heater surface certain shapes limitations are applicable.

Tubular heaters are often cast into Aluminum for broad surface coverage and uniform heating application requirements.Liquid heating requires the use of leak tight mountings/fittings provisions for direct immersion. Threaded mounting fittings, flanges, brackets and custom mounting attachments are used for this purpose and often include custom element shapes. Heater sheath corrosion resistance and watt density (the amount of wattage spread out over the available heater surface area = Watts/Sq. Inch.) are important factors in designing and applying the proper heater.

Air and gas heating Tubular heaters designs typically incorporate low watt density constructions or finned designs. As I most heater applications the watt density is critical to ensure heater temperatures are maintained within limits of the product capability. All finned tubular and duct heaters are suitable for air applications. Depending on the conditions some bushing, flanged and circulation heaters may also be used for heating air.

In all cases due to normal high temperature attainable on any metal-sheathed heater avoid contact with combustible surface or materials.

As with any electrically heated product, the proper application of heater and temperature control is the most important factor in optimum performance, efficiency and longevity i.e. longer life. No two systems are alike It is extremely important that attention has been given to the total product or system design as well as operating environment.

Description / Specification of Custom Made Tubular Heaters

We are involved in offering a wide range of Custom Made Tubular Heaters to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Custom Made Tubular Heaters. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

This is also known as gang tubular heater, since numbers of heaters are mounted on one flange that generates major amount of heat during continuous paper forming machinery.

Description / Specification of Hollow Tubular Heater

We are involved in offering a wide range of Hollow Tubular Heater to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Hollow Tubular Heater. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

These heaters are designed precisely to disperse almost 100% heat transfer efficiency to enable them to keep almost everything dry in standard conditions inside the control panel, which has various sensors and delicate contacts incorporated inside and needs to operate on continuous rating. Our Space Heater occupies small space and is very easy to install.

These are available in two different models such as Square Section and Round Section that is also called as economy model.

The square section has more safety as against the Round one as its lead wire are enclosed by a cover which protects entering of moisture directly into connections.
The photo shows typical Square Section Space Heater.

Salient Features Of Space Heater

Totally enclosed resistance wire in stainless Steel sheath,
Operating voltage 230 Volts A.C. with50 Hz,
High Voltage test at 2.5 K.V. to 3 K.V.,
Insulation test more than 10MegaOhms,
Double Insulation for Live Wire,
Properly Insulated Heating Coil.

Strip heaters without fins are designed for contact heating. They are used in a verity of applications including mounting to the outside of tanks/container surfaces for heating of liquids and solids. They are also used for direct heating of platens, dies and other flat metal shapes and solids.

It is extremely important that heaters are mounted on a flat, smooth and clean surface with good contact maintained between the heater and the mounting surface. Air gaps between the mating surfaces will result in a reduced heat transfer and possibly shorter heater life due to resulting higher heating temperatures.
[strip heater]

When surface mounting strip heaters allowance must be made for liner thermal expansion of heater. A common method of allowing liner thermal expansion is to firmly tighten the mounting bolt on one end and alllow the heater to expand within the confines of the mounting bolt on the other end of strip heater.

Care should be taken not to overtightining/torquing the screw and nut terminal posts as breakage of the internal heater connections may occur. Also connections of heater are usually made with high temperature wire.

As with any electrically heated product, the proper application of heater and temperature control is the most important factor in optimum performance, efficiency. No two systems are alike It is extremely important that attention has been given to the total product or system design as well as operating environment.

Quartz heaters consists of a helically wound resistance coil encased in a pure silica fused tube. Once the coil is encased in the tube, then the tube is been enclosed by means of specially designed ceramic insulated caps, which are securely fastened with high temperature cement providing excellent support to the power connecting terminals of the quartz tube.

Quartz Heaters are generally designed to be used in horizontal position only.
These quartz Heaters are available in various diameters like 8mm, 10mm, 12mm, 15mm, 19mm etc with variation in lengths from 300mm to1500mm.

Modules of quartz heaters are also available in which a resistance wire is enclosed in a small diameter quartz tube running parallel to each other and mounted in a special housing. The two sizes are designed to be installed in same dimensional spacing as ceramic infra red elements.
Quartz infra red half modules are available in different wattages from 125 Watts to 650 Watts. and full modules are available from 250 Watts to 1000Watts.

Care should be taken not to over torque the screw and nut terminal posts as breakage of the internal heater connections may occur. Also connections to the heater should be made with high temperature wire.
As with any electrically heated product, the proper application of heater and temperature control is the most important factor in optimum performance, efficiency and longevity i.e. longer life. No two systems are alike It is extremely important that attention has been given to the total product or system design as well as operating environment.



Typical Applications Of Quartz Heaters

Thermoforming,
Plastic Forming,
Shrink Packaging Tunnels,
Laminating,
Curing Rubber,
Drying Textiles,
Drying Lacquers and paints,

Mica/ Ceramic band heaters are generally used for preheating raw material during forming components in plastic/rubber mould industry.
These are available in various diameters and wattages with material of construction like Mild Steel, Stainless Steel, Brass or combination of these material.
These are also available with Mica/Asbestos or Glass wool insulation which minimize heat losses.

Porcelain Heaters are available in various diameters and flexible lengths to suit customer's requirements in various wattages and voltages.

Some typical applications of these heaters are Medium size ovens, powder coating booths, chemical/paint industry etc.

Description / Specification of Furnace Coils

We are involved in offering a wide range of Furnace Coils to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Furnace Coils. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Description / Specification of Movable Furnace

We are involved in offering a wide range of Movable Furnace to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Movable Furnace. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Energy saving jackets for moulding machines.

These are made out of mild steel, Stainless steel material and are available with or without “quick release” locks for reducing down time while replacing heaters inside.

Some typical applications of these heaters are in medical equipments, laboratory equipments, optical equipments, drum heaters, laminators, mild heated press, photo processing equipments, vaporizing water in dryer, etc.

Manufacturing includes precisely selected wire wounded as per customized shape and then with special vulcanizing process it forms desired shape with various options for lead connections exit.

Since it undergoes vulcanizing process it may be even used in direct liquid heating.

This is an excellent heater for heating plates, where heat transfer required by conduction in quick succession. Metals like brass, copper, aluminum are some metals where these heaters are convenient.

As with any electrically heated product, the proper application of heater and temperature control is the most important factor in optimum performance, efficiency. No two systems are alike It is extremely important that attention has been given to the total product or system design as well as operating environment.

Please let us know your application to enable us to select proper heater design.

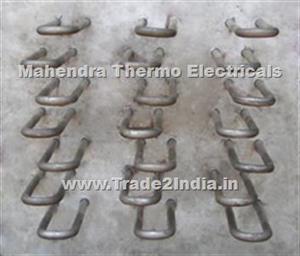

Description / Specification of Air Ducting Heater

We are involved in offering a wide range of Air Ducting Heater to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Air Ducting Heater. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Description / Specification of Custom Made Heating System

We are involved in offering a wide range of Custom Made Heating System to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Custom Made Heating System. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Glass due to their excellent replant properties are extensively used in highly acidic as well as alkaline chemicals to heat up solutions in required time.

Mahendra thermo electricals have indigenously developed spirpotech glass heaters without center rod due to specially design it generates more surface area which results in delivering higher wattage in same length in comparison with regular ceramic bead design

Due to its design it allows us to us thicker wire gauge that enhances the life of heater.

These are available in three sizes i.e outer diameter 35mm 45mmand 50mm.

Available in “Borosilicate” for low temperatures and “Quartz” for high temperature

Description / Specification of Glass U Bend Heater

We are involved in offering a wide range of Glass U Bend Heater to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Glass U Bend Heater. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Major advantage of "FLEXIBLE MATT" heater is their ability to form custom made shape for more lateral surface area coverage to produce uniform heat.

Design begins with precieciously selected wire gauge made into “Helically” wounded coil passed and stitched simultaneously to form custom made shape ensuring almost even distribution of heating in quick succession.

Insulation jackets can be provided to minimize atmospheric heat losses and to optimize heat generated.

Description / Specification of Screw Plug Heaters

We are involved in offering a wide range of Screw Plug Heaters to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Screw Plug Heaters. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design
