Bellows Sealed Globe Valves - TECHNICAL DATA
Valves Designed to BS - 1873 Valves Tested to API - 598 Flanged Ends as per ASME - B 16.5 Face to Face as per ASME - B 16.10
Bellows Sealed Globe Valves - NOTES :Sizes above 250mm has Tow Piece Bonnet Optional Stellite Plug & Seat Alternate Bellows Material: Hast. C-276 / INCONEL-600 / 625
Bellows Sealed Gate Valves - TECHNICAL DATA
Valves Designed to API - 602 (1/2”, 3/4”), 1” & above - API 600 Valves Tested to API - 598 Flanged Ends as per ASME - B 16.5 Face to Face as per ASME - B 16.10
Bellows Sealed GAte Valves - NOTES :
Sizes above 250mm has Two Piece Bonnet Optional Stellite Seat and Wedge Alternate Bellows Material: Hast. C-276 / INCONEL-600 / 625
Bellows Sealed Globe Valves - TECHNICAL DATA
Valves Designed to EN - ISO - 15761 Valves Tested to API - 598 Socket Weld Ends as per ASME - B 16.11 Butt Weld Ends as per ASME - B 16.25 with End Pups Screwed Ends as per ASME - B 1.20.1 (NPT) End to End as per manufacturers specification
Bellows Sealed Globe Valves - NOTES :
Valves upto 50mm NB are from forging Optional Full port Design upto 40mm NB Optional Stellite Seat and Plug Optional Srewed Ends (BSP/NPT) Optional Butt Weld Ends Alternate Bellows Material: Hast. C-276 / INCONEL-600 / 625
Bellows Sealed Gate Valves - TECHNICAL DATA
Valves Designed to API - 602 Valves Tested to API - 598 Socket Weld Ends as per ASME - B 16.11 Butt Weld End as per ASME - B 16.25 with End Pups Screwed End as per ASME - B 1.20.1 (NPT) End to End as per manufacturers specification
Bellows Sealed Gate Valves - NOTES :
Valves upto 50mm NB are from forging Optional Full port Design upto 40mm NB Optional Stellite Seat and Wedge Optional Srewed Ends (BSP/NPT) Optional Butt Weld Ends Optional Socket Weld Ends Alternate Bellows Material: Hast. C-276 / INCONEL-600 / 625
Bellows Sealed Globe Valves - TECHNICAL DATA
Valves Designed to EN - ISO - 15761 Valves Tested to API - 598 Flanged Ends as per ASME - B 16.5 Face to Face as per ASME - B 16.10
Bellows Sealed Globe Valves - NOTES : Valves upto 50mm NB are from forging Optional Standard Port design upto 40mm NB Optional Stellite Seat and Plug Alternate Bellows Material: Hast. C-276 / INCONEL-600 / 625
Bellows Sealed Gate Valves - TECHNICAL DATA
Valves Designed to API - 602 Valves Tested to API - 598 Flanged Ends as per ASME - B 16.5 Face to Face as per ASME - B 16.10
Bellows Sealed Gate Valves - NOTES :
Valves upto 50mm NB are from forging Optional Standard Port design upto 40mm NB Optional Stellite Seat and Wedge Alternate Bellows Material: Hast. C-276 / INCONEL-600 / 625

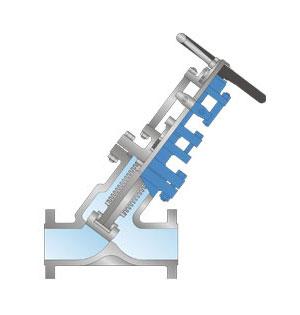

Cast Y-Type Bellows Sealed Globe Valves - TECHNICAL DATA
Valves Designed to BS - 1873 Valves Tested to API - 598 Flanged Ends as per ASME - B 16.5 Face to Face as per ASME - B 16.10
Bellows Sealed Globe Valves - NOTES :
Optional Stellite Seat and Plug Alternate Bellows Material: Hast. C-276 / INCONEL-600 / 625
Bellows Sealed Globe Valves - TECHNICAL DATA
Valves Designed to BS - 1873 Valves Tested to API - 598 Flanged Ends as per ASME - B 16.5 Face to Face as per ASME - B 16.10
Bellows Sealed Globe Valves - NOTES :
Sizes above 250mm has Two Piece Bonnet Optional Stellite Seat and Plug Alternate Bellows Material: Hast. C-276 / INCONEL-600 / 625
