U Tube Manometer |
- Model : fitzer / ut /20
- Range : in between 100 mm to 3000 mm w. G. Catalogue.
|
|
|
|
|
Single Limb Well Type Direct Reading Manometer |
Model : FITZER / SL /200
Range : In Between 100 mm to 3000 mm W.G. Catalogue.
|
|
|
|
|
Inclined Tube Manometer |
- Model : FITZER / HR / INC
- Range : 50 to 1500 mm
- Resolution : 0.1 / 0.2 / 0.5 mm W.C.
|
|
|
|
|
Acrylic Body U Tube Manometer |
- Model : FITZER / ABM / UT / 20
- Range : In Between 100 mm to 300 mm W.G. Catalogue
- Fluid : Red Gauge Oil Sp.Gr 0.823
- Resolution : 1 mm Catalogue.
|
|
|
|
|
Acrylic Body Single Limb Manometer |
- Model : FITZER / ABM / SL / 200.
- Range : In Between 100 mm to 300 mm W.G. Catalogue.
- Fluid : Red Gauge Oil Sp.Gr 0.823.
- Resolution : 1 mm Catalogue.
|
|
|
|
|
Acrylic Body Inclined Tube Manometer |
- Model : FITZER / ABI / 50.
- Range : In Between 10 mm to 150 mm.
- Fluid : Red Gauge Oil Sp.Gr 0.823
- Resolution : 0.1 / 0.2 / 0.5 mm W.C.
|
|
|
|
|
U Tube Absolute Pressure Mercury Filled Manometer |
- Model : FITZER / UAPI / 76.
- Range : 50-0-50 & 100-0-100 mm of Hg.
- Resolution : 1 mm Of Hg Catalogue.
|
|
|
|
|

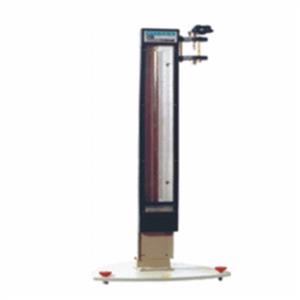

Single Limb Absolute Pressure Mercury Filled Manometer |
- Model : FITZER / SLAP / 76.
- Range : 0 - 200 & 0 - 760 mm of Hg.
- Resolution : 1 mm of Hg Catalogue.
|
|
|
|
|

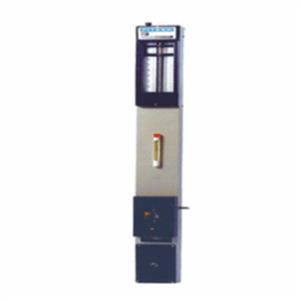

Mercury Barometer |
Fitzer Barometer to measure atmospheric pressure which is obtain to require in laboratory experiment and more accurate measurment of barometric height.
- Standard Range : 580 to 780 mm Hg.
- Min.Divn. : 1 mm Catalogue
|
|
|
|
|
Air Velocity Measuring Kit |
FITZER Air Velocity measuring kit used for balancing Air vertical conditioning system, Pressure drop across filters, test fans, blower discharge and inlet pressure as well as air velocity in ducts.
The kit comes with portable carrying case, 'L' type pitot tube, two 9 feet long rubber tubing & red gauge oil bottle with funnel.
|
|
|
|
|

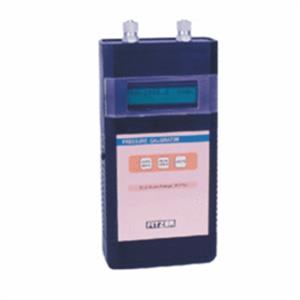

Digital Pressure Calibrator |
Hand held Microprocessor Based
Model No : FITZER / DGM / 800
Portable Pressure Calibrator MM / inches W.G OR mm of Hg, Kg/Cm2, Psi, Bar, mBar, & Kpa Ranges are selectable
- Range : In between 100 mm of W.C to 20,000 mm of W.C
- Accuracy : +/- 1% Range
|
|
|
|
|
Digital Pressure Gauge |
- Model No : FITZER / DPG / 808
- Display : 4 Digit LCD
- Power : Battery, Mains operated
- Ranges : In between 2 to 700 Bar Catalogue
|
|
|
|
|
Digital Pressure Gauge And Controller |
- Sensor : Sensym make ( World's best piezoresistive Sensor )
- Overall : 0.1% FSD
- Op.Temp : 850C
- Proof Pressure : 300% of operating pressure
- Sensor Body : Rugged SS 316
- Process Conn: 1/4', 1/2', NPT / BSP (M)
- Digital Display : 3 1/2', 4 1/2' Digit LED
- Power Supply : 24 V DC
- Output : 4-20 mA, 0 5, 0 10 V
- Relay Output : 2 set Point adjustable provided
|
|
|
|
|
Pressure Gauge |
Industrial Grade Pressure Gauge
- Model No : FITZER / PG / 100
- Catalogue
|
|
|
|
|
Glyserine Filled Pressure Gauge |
Description / Specification of Glyserine Filled Pressure Gauge |
We are involved in offering a wide range of Glyserine Filled Pressure Gauge to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.
We introduce ourselves as an eminent trader and supplier of an extensive array of Glyserine Filled Pressure Gauge. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:
- Sturdy design
- Highly durable
- Application specific design
|
|
|
|
|
|
|
|
Diaphragm Sealed Pressure Gauges |
Description / Specification of Diaphragm Sealed Pressure Gauges |
We are involved in offering a wide range of Diaphragm Sealed Pressure Gauges to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.
We introduce ourselves as an eminent trader and supplier of an extensive array of Diaphragm Sealed Pressure Gauges. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:
- Sturdy design
- Highly durable
- Application specific design
|
|
|
|
|
|
|
|

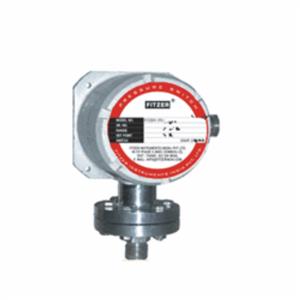

Pressure Switches |
FITZER Pressure switches are designed to provide unique engineering features simple mechanism an thus maintainance free. A Rugged diaphragm piston actuator provides set points repeatability of +/-1% Catalogue
|
|
|
|
|
Flameproof Flow Switch |
To meet the diversified requirements of our prestigious clients, we are engaged in offering Flameproof Flow Switch that can be used for measuring liquids, gas and slurries. The provided flow switch is designed using optimum quality components and innovative technology under the guidance of our adept professionals. Our quality controllers test this flow switch against variegated parameters in order to ensure its durability.
|
|
|
|
|
Glass Tube Type Rotameter |
MODEL NO. : FITZER / GTR / 150
RANGE : In Between 30 LPH to 30,000 LPH Liquid
LINE SIZE : 15 NB to 100 NB
ACCESSORIES: Contact Switching Arrangement
Catalogue
Acrylic Body Rotameter :
MODEL NO.: FITZER / ABR / 100
RANGE : In Between 30 LPH to 40,000 LPH Liquid
LINE SIZE : 15 NB to 100 NB
ACCESSORIES: Contact Switching Arrangement |
|
|
|
|
Glass Tube Type Purge Rotameter |
MODEL NO. : FITZER / GTR / 25
RANGE : In Between 0.1 LPM to 200 LPM Air
CONNECTION : ¼” 3/8”, ½” BSP / NPT (F)
ACCESSORIES: Contact Switching Arrangement, DP
Regulator
Catalogue
Acrylic Body Purge Rotameter :
MODEL NO. : FITZER / ABR / 20
RANGE : In Between 1 LPM to 200 LPM Air
CONNECTION : ¼” 3/8”, ½” BSP / NPT (F)
ACCESSORIES: Contact Switching Arrangement, DP
Regulator
|
|
|
|
|
Metal Tube Rotameter |
MODEL NO. : FITZER / MTR / 200
RANGE : In Between 30 LPH to 80 M3/Hr Liquid
LINE SIZE : 15 NB to 100 NB
ARRANGEMENT: Steam Jacketing type |
|
|
|
|
Metal Tube Rotameter With Switching Alarm |
MODEL NO. : FITZER / MTR / FS / 200
RANGE : In Between 30 LPH to 80 M3/Hr Liquid
LINE SIZE : 15 NB to 100 NB
ARRANGEMENT: Steam Jacketing type |
|
|
|
|
Metal Tube Rotameter With Transmitting Output |
MODEL NO. : FITZER / MTR / AFT
RANGE : In Between 30 LPH to 80 M3/Hr Liquid
TYPE : 2 Wire type
OUTPUT : 4-20mAmp
SUPPLY : 24V DC
LINE SIZE : 15 NB to 100 NB
EXTRA : Digital Flow Indicator totalizer for remote
Indication |
|
|
|
|
Turbine Flowmeter |
MODEL NO. : FITZER / TFM - 909
RANGE : In Between 10 LPM to 100M3/Hr lIQUID
TYPE : 2 Wire type
OUTPUT : 4-20mAmp
SUPPLY : 24V DC
LINE SIZE : 15 NB to 100 NB
EXTRA : Digital Flow Indicator totalizer for remote
Indication |
|
|
|
|
Electromagnetic Flowmeter |
MODEL NO. : FITZER / FLOWMAG – DLM / 300
LINE SIZE : 15 NB to 300 NB
TYPE : 2 Wire type
OUTPUT : 4-20mAmp
FLOWRATE : 3 ½ Digit LED
TOTALIZER : 9 Digit LED
SUPPLY : 230V DC
EXTRA : Digital Flow Indicator totalizer for
remote Indication |
|
|
|
|
By Pass Type Rotameter |
Fitzer By-Pass Rotameters are intend for measuring
for high rate of flow, suitable for measuring flow rate
50 NB and above line size. With flange tape type,
Carrier Ring type OR D & D2 Type |
|
|
|
|
Flange Tape Type |
Fitzer By-Pass Rotameters are intend for measuring
for high rate of flow, suitable for measuring flow rate
50 NB and above line size. With flange tape type,
Carrier Ring type |
|
|
|
|
Orifice Flange Assembly |
To measure differential pressure across the Orifice Plate, By-pass type flow measurement/ DP flow transmitters. Standard : According to ISO - 5167-2:2003 / BS 1042 Type : Socket weld / Weld neck type Size / MOC / Range : As per customer requirement. |
|
|
|
|
Flow Switch With Flameproof Enclosure |
SERIES : FS - FLP - 320
MOUNTING : Online Pipe Mounting
CATALOGUE
Flow Switch with Weatherproof Enclosure
SERIES : FS - WP - 300
MOUNTING : Online Pipe Mounting |
|
|
|
|
Sight Flow Indicator |
Full view & Double window type |
|
|
|
|
Purge Rotameter |
Acrylic Body Purge Rotameter:
- Model no: FITZER / ABR / 20
- Range: In Between 1 LPM to 200 LPM Air
- Connection: ¼” 3/8”, ½” BSP / NPT (F)
- Accessories: Contact Switching Arrangement, DP
- Regulator
- Catalogue
|
|
|
|
|
Bi Colour Type Magnetic Level Indicator |
Reliable Indicator for colour & dangerous liquid even
under high pressure & temperature.
MODEL NO. : FITZER / BML / 24
Mounting : Side mounted
C.C. Distance : upto 5000 mm
Features : Adjustable Alarm switches,
Transmitting output 4-20mAmp
|
|
|
|
|
Capsule Type Magnetic Level Indicator |
Reliable Indicator for colour & dangerous liquid even
under high pressure & temperature.
MODEL NO. : FITZER / ML / 24
Mounting : Side mounted
C.C. Distance : upto 5000 mm
Features : Adjustable Alarm switches,
Transmitting output 4-20mAmp |
|
|
|
|
Tubular Liquid Level Indicator |
It is a simple, low cost and reliable device for
direct reading of liquid level
MODEL NO. : FITZER / TLG / 130
Mounting : Side mounted
C.C. Distance: upto 3500 mm
Features : Adjustable Alarm switches, Isolating
Auto Shut-off Valve, Steam
Jacketing Arrangement. |
|
|
|
|
Float And Board Type Level Indicator |
MODEL NO. : FITZER / FCR / 500
Mounting : Side mounted
Length : Unlimited as per customer
requirement.
Features : A Fix point Alarm switches,
Vapor sealed magnetic operated Float
& Board Type Level indicator |
|
|
|
|
Reflex Level Guage |
Reflex and transparent level gauges are specially
design to meet evolving inflammable, toxic high
pressure & high temperature liquid.
Model No. : FITZER / RLG / 180
Length : upto 3000 mm
Features : Isolating Auto Shut-off Valve, |
|
|
|
|
Purge Type Tank Level Indicator |
fitzer purge type level indicator is simple reliable for direct reading in atmospheric or pressurised tank application
It is compressed air operated and functions under the same basic principles of the u-tube manometer whose accuracy is inherent. Indicator is recommended where continuoues indication of level of liquid in a tank is required by compressed air or build in hand pump which is operated only when an indicator reading is desired. |
|
|
|
|
Float Operator Level Transmitters |
Electronic : Loop powered integral with
transducer
Input : Variable resistance form transducer
Range : Upto 3 meter
Supply : 24V DC 4-20 mAMP
Process Conn : 2” / 3” NB |
|
|
|
|
Capacitance Type Level Transmitter |
Application for Non-Forming, Conductivity
Liquid with Low / Medium Viscosity like Water,
Water bound solutions, liquid like Mineral Oil etc.
MODEL NO. : FITZER / CLT / 900
Length : Upto 6 meter |
|
|
|
|
Hydrostatic Level Transmitter |
MODEL NO. : FITZER / HLT / 808
Probe : S.S.316 dip pipe
Length : Upto 3 meter
Supply : 24V DC
Output : 4-20m Amp
MODEL NO. : FITZER HLT / 809
Probe :Flexible cable type with bottom
end pressure transmitter
Length : Upto 30 meter
Supply : 24V DC
Output : 4-20m Amp |
|
|
|
|
Magnetic Float Operated Level Switches |
It is a reliable technique in Industry for point liquid
level sensing and control in open or pressurized tank.
MODEL NO. : FITZER / TLS / 50
Miniature Level Switches
Fitzer small size liquid switches features a small float
displacement especially suitable for narrow or restricted area. |
|
|
|
|
Side Mounted Magnetic Level Switch |
The magnetic float operated pivoted liquid level switches for high and low intermediate sensing point.
- Model No : FITZER / SMLS / 03
- Mounting : Side OR Top Mounted
- Switch : SNAP action Reed / Micro switch
- Switch Rating : 5 Amp 230V AC
- Contact : NO / NC potential free contact
|
|
|
|
|
Conductivity Type Level Switch |
Probe : S.S. 316
Sensing Range: Upto 20 meter
Process Conn: 1” OR 2” NB
Maximum current :20mAmp AC
Resistance : 40K (maximum) between mass &
control electrode
Encloure : Cas Aluminium weatherpoof
/flameproof
Fluid : Any of Conductive Liquid
Control Unit
Supply : 230V 50Hz AC 6 Amp
Voltage : between the sensing probe 1 Volt.
Contact : 1 NO / 1 NC potential free
contact with
individual sensing point.
No. Sensing Point: 2, 3,4,6, |
|
|
|
|
Cable Float Level Switch |
A change in the liquid level causes the float
to tilt up or down in the process &
Move the steel ball inside of float device to
operate the micro switch and it
create NO – NC contacts
This float come with flexible HAR rubber cable
with adjustable stopper.
Cable Length: As per customer requirement]
Switch : Micro Switch 1 NO / 1 NC
Switch Rating : 5 Amp 230V AC, 15Amp
230V AC |
|
|
|
|
Displacer Type Level Switch |
MODEL NO. : FITZER / TDS / 500
Top Mounted Displacer level switch work
on buoyancy principle. Specially for low
density liquid. Adjustable switching
distance throughout range suitable for
maximum 30 meter length.
Mounting : Internal OR External cage type
Switching Point : 1 OR 2
Process Conn : 2” / 3” NB
Switch Type : Micro switch 1 N/O – 1 N/C
5Amp 230 AC |
|
|
|
|
Magnetic Level Indicator |
From our wide range of products, we offer optimum quality BI- Colour Type Magnetic Level Indicator that is used in various industries. The offered indicator is designed using top notch quality component and modern technology in line with set quality norms. We provide this indicator in diversified specifications and designs in order to cater the needs of our clients. Moreover, offered indicator is checked by our quality controllers on variegated parameters in order to deliver durable product to our valuable clients. |
|
|
|
|
Bi Metallic Temperature Gauge |
FITZER Bi-metallic Temprature gauge are economical rugged, reliable temprature measuring instruments
SERIES : TG - B200 Catalogue.
|
|
|
|
|
R. T. D Sensor And Thermocouples |
Fitzer wide range of resistance thermometer ( rtd sensors ).
thermocouples are mineral insulated probes are economical rugged and reliable temprature sensing instruments .
- series : ts - 400 catalogue.
|
|
|
|
|
Thermowells |
FITZER make thermowells are designed to protect to temprature gauges and sensors from various media, pressure, viscous material and velocity and abrasives.SERIES :TW - 300 |
|
|
|
|
Digi Dial Temprature Indicator Controller |
Fitzer digital gauge is digital therometers find application for spot and accurate temprature measurment.
the instrument contain in two parts, one is dial and other one is stem. They designed for 3 1/2 & 4 1/2 digits display.
thermometers are housed in 6' & 4' dial. It works on a 9 volt battery easy to read lcd shows accurate temprature. Rtd's cr-al thermocouples are used as temprature sensor. The sensor can be give as per desired length and sheath materials.
- ranges : in between -100 to 600 deg
|
|
|
|
|
Threaded Mounted Thermowell |
We are a noteworthy manufacturer and supplier of a comprehensive range ofThreaded Mounted Thermowell which are designed to protect gauges and sensors from pressure and velocity. Our provided thermowells are manufactured by our adept professionals using the best quality component and innovative technology in sync with industry standards. Apart from this, our offered thermowells are tested under the supervision of our quality controllers in order to ensure their flawlessness. |
|
|
|
|
Resistance Thermometer |
With rich industry experience and knowledge, we are manufacturing and supplying a qualitative range of Resistance Thermometers that is widely used in metal producing as well as processing industries. The provided thermometer is manufactured by our adroit professionals using optimum quality components and innovative technology in compliance with quality norms. In order to ensure its quality, this thermometer is tested by our quality examiners on varied parameters. |
|
|
|
|
Flow Switch For Fire Sprinkler System |
Owing to our in-depth domain expertise, we are providing a qualitative range of Flow Switch for Fire Sprinkler System that is used for high and low intermediate sensing point. The offered sprinkler system is designed as per industry norms using the finest quality components and cutting edge technology under the guidance of our adroit professionals. Our provided sprinkler system is available in varied sizes and specifications to meet the variegated needs of our esteemed clients. |
|
|
|
|
Mercury Barometer For Electrical Industry |
With an increased proportion of technology, we are offering a qualitative assortment ofMercury Barometer for Electrical Industrythat is used in flow measuring instruments and level indicators. The offered barometer is designed using top notch quality components and modern technology under the strict guidance of our adept professionals. Our quality controllers test this barometer against variegated parameter in order to ensure its durability. Besides, clients can avail this barometer from us at budget friendly prices. |
|
|
|
|
Bimetallic Thermometer For Mechanical Engineering |
We are a reckoned name in the industry of manufacturing and supplying a superior quality range of Bimetallic Thermometer for Mechanical Engineering that is used for measuring temperature. The provided thermometer is designed by using the finest quality components and innovative technology by our skilled professionals. Our offered thermometer is available in various sizes and specifications, as per the needs of our esteemed clients. Furthermore, clients can avail this thermometer from us at affordable prices.
|
|
|
|
|
|
|
|
|
