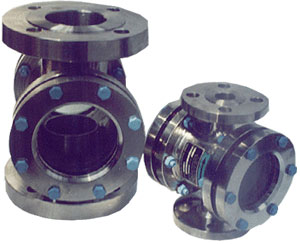

Sight Flow Indicators |
C.I.E. manufactures a wide range of Sight Flow Indicators and Sight Glasses to cater to the general as well as specialized usage in process & Allied Industries . Cie make sight flow indicators offer an inexpensive means of viewing the process to assure that the stream is flowing or to note the process characteristics such as colour, turbidity, or other properties that might indicate process deterioration or equipment malfunction. Several types of analyzers require flow glasses so that the sensing element can see the process. Sight glasses are used sometimes in secondary services, such as condensate pot installations.
Types : Double Window, Full View, Inspection Glasses.
For specialized use to suit various fluids and flow characteristics they are made in models such as:-
Plain Type,
Drip Type,
Flapper Type,
Rotating Wheel Type
Angle Type.
SIZE
½" to 2" in screwed connection BSP, NPT, IS-554, S.W/B.W.
½" to 8" in Flanged Connection ANSI, DIN, BS, IS and JIS
GLASS
Toughened Glasses are thermal stock tested as per BS-3463/1962.
Process borosilicate Glasses are stress relieved to under take piping Strain and avoid breakage. For Critical service IMPORTED MOULDED glasses may be provided which can take a temp of 400LC
MATERIAL
C.S., C.I., Brass G. M., SS-304/316, Alloy-20, PVC, HDP etc,
for highly corrosive application :rubber, lead or Teflon, lining.
WORKING PRESSURE : 200kg/cm2
WORKING TEMPERATURE : 2500C for Indigenous Glass & 400LC with Moulded Imported Glasses.
OPTIONAL FEATURE
Glass cleaning arrangement
Cooling/heating jackets.
|
|
|
|
|
Flow Switch |
C.I.E manufactures a wide range of Flow Switches to suit all types of process application. It is used to determine whether the flow rate is above or below a certain value. Switching action is determined entirely by flow of the liquid. The rigid construction offers excellent durability even in the most severe service conditions. Switch casing is weather and explosion proof and suitable for the ET connection. Mercury or Micro-switch is easily adjustable in service.
The Flow Switches are operating on
The principle of magnetic coupling ,hence there is no packing or stuffing box and is totally leak free.
The principle of gravity hence it is horizontal mounted switches so that the follower is always vertical.
Flow Switches are manufactured in 3 models
Disc type - Model no FS-001
Flapper type - Model no FS - 002
Vane actuated type.
FLANGED : CLASS - ANSI-B16.5, B.S., DIN, JIS, I.S.
SCREWED: BSPT / NPT/SOCKET WELD/BUTT WELD.
.
MATERIALS
Stainless steel
Alloy steel
Cast steel
Gun metal
Brass
ADDITIONAL FEATURE / DESIGN
Side mounting
Built in sight glass
APPLICATION : FLOW SWITCH is helpful to control cooling systems for heating equipment, furnaces / machines. It helps to control mixing of different fluids in process application controlling on/off of the pump.
|
|
|
|
|
Strainer |
Y TYPE STRAINER
Cie manufacture Y TYPE STRAINER which are devices used for mechanically removing Foreign particles, solids from flowing liquids or gases by means of a perforated or wire mesh straining element.
MATERIAL: C.I., SS 304 / 316, G.M. and Cast Steel etc., with SS-304/ 316 and Brass filtering elements.
SIZES : ¼" to 2" in screwed and 1" to 12" in flanged connection in ASA-150#, 300#, 600# and 900# ratings. Flanges connection confirm to B.S, ANSI, PN-10, 16, DIN, JIS and IS specifications
.
APPLICATION : WATER HANDLING , FOOD INDUSTRY, MARINE INDUSTRY, PROCESS EUIPMENT, PAINT INK AND LATEX, ELECTRIC UTILITIES, PHARMACEUTICALS AND COCSMETICS, REFRIGERATION,PETROLEUM, PULP AND PAPER, CERMACIS, CHEMICAL PROCESS.
|
|
|
|
|
Oil Level Indicator |
Magnetic level gauge
Float & Board type
Purge Level Indicator.
MATERIAL
SS-304/316, Carbon Steel, A-105, Aluminum etc.
For corrosive application : rubber lined/lead lined, PVC, P.P.etc., materials.
For medium pressure and temperature : solid cooled rolled bar stock material.
For high pressure and temperature : forged steel is used
GLASS
Tempered Borosilicate Glass resistant to thermal and mechanical shock is used for temperatures upto 200 degree centigrade.
For High Pressure & Temp Imported KLINGER/MAXOS glass
are used to temperature upto 400L C.
A sharp prisms-cut in the Reflex glasses gives maximum reflexability.
GASKET
Recessed smooth finished gasket seats prevent
gasket movement and insure leak-free services
TEFLON
COMPRESSED ASBESTOES
METALLIC COMPREESED ASBESTOS
NEOPRENE RUBBER
SPIRAL WOUND
APPLICATION
Gauges are used to measure and observe liquid level under
difficult or hazardous conditions.
OPTIONAL FEATURES
Engraved Plastic / AlumiSnum / Steel Linear Scale,
Heating/cooling jackets,
Frost Shield
Illuminators,
Mica Protection to prevent Glass erosion.
Pad
|
|
|
|
|
Flame Arrestor |
FLAME ARRESTORS is the equipment / instrument used in the vent lines or over the vessels or on end lines where hazardous / explosive fluids and gases are vented out and they are designed to prevent an external fire from entering into a tank containing flammable fluids.
Types : Inline Mounting, End of Line Mounting
Sizes : Flanged 1" (25 mm) to 16" (400 mm)
Screwed 1/4 " to 2"
Body : Cast Steel, Cast Iron, Aluminium, Cast Stainless Steel etc.
Flame Banks : SS 304, SS 316, Aluminium Inconel, Monel.
Gasket : Compressed Asbestos, Teflon
|
|
|
|
|
Manometer |
MANOMETERS
CIE manufacture a wide range of manometers to measure the low pressure or statistic pressure of liquid.It is also used to measure the differential pressure.
We manufacture mainly in three models.
'U' TIBE MANOMETER.
SINGLE LIMB (WELL TYPE OR CISTERN TYPE)
INCLINED TUBE MANOMETER
APPLICATION
The MANOMETERS are mainly used to measure very low pressure of which measurement is not possible by means of pressure gauge. They are also used to read the differential pressure of the instruments a pressure drop across the instruments. The units are mostly measured in terms of water column (Wc) or in terms of Mercury column (Hg).
RANGE - NORMAL RANGES : 0-20mm Wc to 0-1500mm WC
Connection : ¼" B.S.P with Hose Nipple with Al./stainless steel fittings & milky acrylic scale with transparent acrylic sheet.
'U' TUBE MANOMETER :
It consisting of glass tube arranged in opposite direction of the same size and connected in the form if 'U' in order to measure the pressure. The glass tube of 'U' tuber Manometer is filled with Manometric liquids such as water 'Hg' Glycerin, Red liquid etc., The pressure measurement is co-related to water specific gravity which is 1. And the differential measurement of the limb. When pressure elements are connected if gives the differential pressure which is measured in terms of particular liquid column measurement e.g.: Wc. Whenever Hg is used as Manometer liquid the measurement column is called Mercury column (mm of Hg.) can be fitted on wall mounting or it can be mounted on the plate where it is movable and can be used as per the required position.( i.g. over the table)
CISTERN TYPE MANOMETER:
Liquid chamber is used along with the narrow tube and when pressure is applied over the liquid in the system the liquid will rise in the narrow tube in proportion to the pressure acting over the system. Which is measured in terms of Wc/Hg.column passed on the Manometric fluid used.
INCLINED TUBE MANOMETER:
It specially developed to measure the very small pressures with the increased length of the scale.
The differential pressure is measured in terms of Wc or Hg column based on the Manometric fluid is used.
CONSTRUCTION: CONSISTING OF THE SYSTEM (WALL, TANK) AND THE THIN OR NARROW TUBE IS CONNECTED TO THE SYSTEM IN INCLINED POSITION.
|
|
|
|
|
Tailor Made Flame Arrestor |
Description / Specification of Tailor Made Flame Arrestor
We are involved in offering a wide range of Tailor Made Flame Arrestor to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.
We introduce ourselves as an eminent trader and supplier of an extensive array of Tailor Made Flame Arrestor. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:
Sturdy design
Highly durable
Application specific design
|
|
|
|
|
|
|
|
|
