Automatic Fuel Nozzle |
TSN-11 Aluminum 0-80 LPM, Inlet 3/4 BSPF, Spout 13/16", 3/4"
Additional Information:
Minimum Order Quantity: 1 Piece
|
|
|
|
|
Aviation Fuel Nozzle |
TSN-200 Auto Cut off Nozzle is made of Alloy Aluminum and designed for big flow rate upto 260 LPM.BSPF 1.5” inlet.
Service and body with Cast Aluminum, Machined Stem, Seal Viton Flow Rate – 0-290 LPM.
Needs 3 Bar line pressure to operate.
Weight 2.4 kg
|
|
|
|
|
Manual Fuel Nozzle |
TSN-12A Manual Nozzle
Suitable for Gravity Feed and Low Pressure Applications.
Superior quality Manual Fuelling Nozzle
Inlet thread 1" , 3/4", , diameter of spout 3/4",
Flow range 0-80 LPM
For use with pump or gravity feed application
Surface treatment - Sand Blast Finish
Additional Information:
Minimum Order Quantity: 1 Piece
|
|
|
|
|
Swivel |
Approx Price: Rs 975 / Piece
Minimum Order Quantity: 1 Piece
Product Details:
Size 1 inch
Brand AMSPA
Swivel used for connecting
Nozzle and the Hose
1” 360 degree action
|
|
|
|
|
Chemical Nozzle |
TSN-600C
Manual Plastic Nozzle PP
For Acids and Chemicals
Seals- Highly resistant Florine Rubber
Wetted Parts PP/SS3044
Oil inlet ¾”
Flow rate – 0-70 LPM
Nominal Pressure – 0.18 M Pa
Additional Information:
Minimum Order Quantity: 1 Unit
|
|
|
|
|
Air Grease Gun |
1. Heavy duty aluminum die cast head with internal bore precision honed for rapid action
2. Ergnomic pistol grip and acute angle design allows for ease of operation, especially in narrow spaces
3. Air inlet threaded 1/4" NPT(F) Each gun supplied with a male quick coupler fitting
4. Head casting fitting with bulk loaded valve
5. Intermittent Action with grease discharger per shot, For use with 14OZ. (400gms) grease cartridge or 500cc bulk cartridge.
6. cylinder cap
7. Weight approx 1. 5 kg
8. Load 14 oz or 400 cc grease cartridge
9. Spout and nylon hose with coupler 9" long
10. Air pressure 30-150 psi
11. Average air consumption 6 CPM
12. Air inlet NPT - 1/4"
13. Hose (ID) - 3/8"
Additional Information:
Minimum Order Quantity: 1 1 PIECE
|
|
|
|
|
Grease Gun |
HIGH PRESSURE GREASE GUNS Aluminium Head. Produces pressure of 6000 psi. Air can be released either through filler nipple or by half turn of the head assembly. Duly fitted with filler nipple. Knurled barrel for easy grip. Available in 500 cc. Available with 6
|
|
|
|
|
Fuel Consumption Meter |
Rotary piston flow meter
wide flux, no flow adjustment
is required, measuring mediums
diesel, distilled water, juice,
chemical reagent, pulse output
precision – 0. 3%
min flow – 25 liter/hour
max flow – 500 liter/hour
this flow meter reads both total volume passing & flow rate in liter per minute.
Additional Information:
Minimum Order Quantity: 1 Unit
|
|
|
|
|
Manual Fuel Flow Meter Nozzle |
Approx Price: Rs 10,000 / Piece
Minimum Order Quantity: 1 Piece
Screw Wing Type Mechanical Flow Meter Nozzle is designed to measure volume flow of liquid flowing through the Pipes.
Suitable for Petrol, Diesel, Solvents, Kerosene.
Maximum Working Pressure 0.1 M Pa. Accuracy +1%
Inlet - 25 mm (1”, 1.25")
Flow range 25-200 LPM
Meter Volume ( 1~ 9999)
|
|
|
|
|
Mechanical Fuel Flow Meter |
Mechanical Turbine Type
Flow Meter. Designed for Metering
Diesel, Fuel, Gasoline, Kerosene,
Mineral Spirits. Reset register
999.9 Liters .Totalizer 99999999.
Measurement – Liters, Max Pressure
3 Bar. Flow Rate 20-120 LPM, Inlet/Outlet – 1”. Precision + 1%,
Net Wt. 2.5 Kg.
|
|
|
|
|
Digital Diesel Oval Gear Flow Meter |
Product Details:
Minimum Order Quantity 1 Unit
Brand AMSPA
Display Digital
Model OGM-13E
Flow range 3-35 LPM
Oval Gear Digital Disel Flow Meter
This oval gear meter is for controlling and measuring low, medium and high viscosity, such as fuel, lubrication oil with advantage of high precision and low pressure loss, compact light weight design and easy installation. It is with LCD display.
5-digital subtotal, with floating point from 0.001 to 999.99. 8-digital non-resettable totalizer. And with pulse output, reed switch built in, signal channel output.
Media < 1000 cps
Inlet 1/2" BSPT
Flow rate 3-35 LPM
Accuracy +/- 0.5%
Max Pressure 70 Bar
Max Operating Temperature - 45 C
|
|
|
|
|
Mechanical Oval Gear Oil Flow Meter |
Product Details:
offering oval gear flow meters for diesel
(a) size 1"
flow rate 20-120 liter/minute
accuracy - 0. 5%
repeatability - 0. 5%
max operating pressure - 3. 4 mpa
(b) size 1 1/2"
flow rate 25-250 liter/minute
accuracy - 0. 5%
repeatability - 0. 5%
max operating pressure - 1. 8 mpa
(c) size - 2"
minimum flow rate - 30 l/mi
maximum flow rate - 300 l/min
accuracy - +/- 0. 5%
repeatability-0. 03%
max viscosity - 1000 cps
max pressure-1. 8 mpa
available in aluminium only
|
|
|
|
|
Mechanical Fuel Flow Meters |
Product Details:
Minimum Order Quantity 1 Unit
Brand AMSPA
Mechanical Flow meters designed for metering diesel fuel, gasoline, kerosene, mineral spirits, with the advantage of large easy to read no. S. Quick reset knob. Flexible flow ports can be positioned vertically or horizontally. The easy reset register indicates product use up to 999. 9 gallons or liters. The master totalizer. registers up to 99999999 liters. Max pressure 3 bar
Max flow rate 25-250 LPM
BSPF/NPT – 2 inch
Precision 1% Aluminum housing
Max temperature - 70 degree C
Weight - 2. 5 kg
|
|
|
|
|
Digital Oval Gear Diesel Flow Meter |
Aluminium Electronic Oval Gear Flow Meter
OGM Type flow meter have the advantage of compact size, easy maintenance, Easy to read and operate mechanical display, horizontal and vertical flexibility of installation options. Low pressure drop. Widely used in industries of petroleum, chemical processing, medicine, transportation food etc.
Available in 1" & 1.5"
OGM-25 E
Size 1"
Flow Rate ( 20-120 LPM )
Accuracy +/- 0.5%
Repetability 0.03%
Max Viscosity - 1000 cps
Max Operating Pressure 3.4 MPa
Size 1.5"
Flow Rate (25-250 LPM )
Accuracy +/- 0.5%
Repatability 0.03%
Max Viscosity - 1000 cps
Max Operated Pressure 1.8 MPa
|
|
|
|
|
Diesel Flow Meter Nozzle |
inlet – connectors - ¾” or 1”
outlet- 1”
accuracy – 1%
flow range – 18. 9-190 liter per minute
max pressure – 20 bar
temperature – (-40 to 80 degree c)
suitable for measuring diesel transferred from tanks to barrel and vehicles.
connector - (optional)
3/4" automatic cut off nozzle - (optional)
1" automatic cut off nozzle - (optional)
flow meter available in aluminium only. Can be clamped to 3/4" & 1" nozzle
Additional Information:
Minimum Order Quantity: 1 Unit(s)
Item Code: TSN-120K24
|
|
|
|
|
Plastic Flow Meter Nozzle |
TSN-600C
Manual Plastic Nozzle PP
For Acids and Chemicals
Seals- Highly resistant Florine Rubber
Wetted Parts PP/SS3044
Oil inlet ¾”
Flow rate – 0-70 LPM
Nominal Pressure – 0.18 M Pa
Connector
Electronic Turbine Flow meter K24
Additional Information:
Minimum Order Quantity: 1 Unit
|
|
|
|
|
Diesel Flow Meter Nozzles |
MANUAL FUEL NOZZLE 1”
0-60 LPM, Inlet 1” BSPF, Spout ¾” Suitable Diesel Gasoline
MOC - Aluminum
Electronic Flow Meter, Turbine Type
+1% Accuracy. Current Flow Qty and Totaliser.
|
|
|
|
|
Diesel Flow Meters Nozzle |
AUTOMATIC FUEL NOZZLE 1”
0-120 LPM, Inlet 1” BSPF, Spout 1” Suitable Diesel Gasoline
MOC - Aluminum
Electronic Flow Meter, Turbine Type
+1% Accuracy. Current Flow Qty and Totaliser.
|
|
|
|
|
Pulse Oval Gear Flow Meter |
STAINLESS STEEL PULSE OVAL GEAR FLOW METER
FOR CHEMICALS, FLAMMABLE MEDIA, SOLVENTS
For continuous, intermittent pipe line flow measurement , down stream of pumps
Flow measurement of high precision composed of measuring cavity, seal coupling
and counter of three parts ( Instantaneous , Current , Volumetric ) Accuracy - + 0.3%, MOC – Stainless Steel SS304 , Flow Range – 20-120 LPM, Line Size – 1”
Max Operating Pressure – 34 Bar, Liter Registration, BSPF
Ports. Electronic Display with 5 digit subtotal with floating from
0.01-99999.99
9 digit Non Resettable Totaliser
Max Temperature – 50 Degree C
|
|
|
|
|
Electronic Diesel Flow Meter |
1" Electronic Diesel Flow Meter
Digital Turbine Flowmeters are best suited for petroleum based products. The modular design allows for maximum flexibility in meeting customers applications. Models are available in BSP fittings.
High Precision, durable and compact turbine flow meters.
Resettable and Cummulative total reading.
Reading in gallons and liters.
Light weight compact design allows easy installation.
Powered by lithium batteries.
Additional Information:
Minimum Order Quantity: 1 Piece
|
|
|
|
|
Electric Barrel Pump |
Product Details:
Power Source Electric
Motor Horsepower 1 HP
Maximum Discharge Flow 110 LPM
Rated input Power-720 W
Rated Frequency- 50 Hz
No-load speed-300--15000 r/min.
Hydraulics lift-3-7 m.
Delivery Capacity- 30-100 L/min.
Material of Construction - Suction (Aluminium), Impeller (Plastic)
|
|
|
|
|
Stainless Steel Gear Pump |
Product Details:
Brand AMSPA
Model B-75S
Max Flow Rate 75
Head 30
Stainless Steel Gear Pump. It is widely used in oil, drum carrier, oil refinery, electric power plant, substation and oil depot.By adopting stainless steel material, it works for medium like non lubricating oil, beverage and corrosive liquid.
BSPT - 1"
Flow rate - 75 lpm
Power 750 W
Current Power - 220V
Suction Distance - 5 meter
Head - 30 meter
|
|
|
|
|
Dc Diesel Transfer Pump |
DUAL VOLTAGE HIGH FLOW DC ROTARY VANE PUMP
Dual Voltage 12V/24V DC
Positive Displacement, Rotary Vane Pump for transferring Diesel Fuel. Suitable for Diesel,
Kerosene, Bio Diesel. Ideal for mounting into plant equipment, excavators etc. Vane Pump with rotor. Foot mounting plate. By pass valve incorporated
into pump body. Integrated ON/OFF switch. Flow rate – 70 LPM, 550 W, RPM – 2800
Head – 10 m
Inlet / Outlet 1”
MOC – CAST IRON
|
|
|
|
|
Micro Peristaltic Pump |
Make : AMSPA
Flow range: ≤90mL/min
·Fixed speed
·Drive: DC motor or Brushless DC motor
·High cost-effective
·Easy-load type
·Power supply: DC 12V
·Electric current: 0.8A (12V)/0.38A(24V)·
·Continuous working hours:1000 hours
·Power consumption: 4.11W
·Shell materials: POM
·Roller materials: POM
·Motor connection plate: PPS
·Operating condition: Relative humidity 95%
·Weight:90g
·Application: Automatic biochemistry analyzer, medical testing instrument, laboratory equipment and other automatic suction liquid system.
·Flow and tubing: (INNER DIAMETER * WALL THICKNESS)
FLOW RANGE
0.6mm*1.35mm 8ml/min
1.5mm*1.35mm 35ml/min
2.4mm*1.35mm 90ml/min
MC10 Micro peristaltic pumps have small size, easy setup.
One can install variable tubing’s , change tubing’s easily and conveniently. Comes with direct current brushless motors.
Additional Information:
Minimum Order Quantity: 1 Unit
|
|
|
|
|
Rotary Diesel Vane Pump |
Compact Rotary Vane Type Diesel transfer Pump.
Self Priming
20 meter head
Model No. AM40B
Material of Construction - Cast Iron
Medium - Diesel, Kerosene
Inlet / Outlet - BSPT - 1"
Flow rate - 40 LPM
Max Operating Pressure - 3 Bar
Power 600 W
Current Power 220 V
Negative Suction 5 meter
Head 20 meter
Additional Information:
Minimum Order Quantity: 1 Piece
|
|
|
|
|
Flameproof Fuel Transfer Pump |
Model – B80 Ex-Cast Iron
Electric Self Priming Pump for flammable media
Gasoline, Diesel , Kerosene, Chemicals and
Solvents. Methanol, Stainless Steel SS304 Rotary Vane
Pump. Built in Bypass Valve. Built in Filter.
Easy accessible for cleaning. Explosion Proof
Induction motor with Aluminium casing.
Continuous working principle. Applicable for
Transferring media from barrel, underground
Tanks, tankers and overhead tank.
Flow rate -80 LPM, 1” Port, 220V, 550 W,
2800 rpm, Suction – 5m , Head – 15 m
NET WEIGHT – 10 KG
|
|
|
|
|
Dc Diesel Transfer Pumps |
Product Details:
Minimum Order Quantity 1 Piece
Brand AMSPA
Model B-70 DC Dual 12/24
Max Flow Rate 70 LPM
Head 10 Meter
B-70 DC Dual 12/24
70 LPM Dual Voltage DC diesel Transfer Pump. Dual 12 24 V. 550W. Positive Displacement Rotary Vane Pump. Suitable for Kerosene, Bio Diesel. Idea for mounting on Plant equipment, excavators etc. Vane Pump with rotor. Foot Mounting plate. By-pass valve incorporated into the pump Body. Complete with switch, carry handle. Standard 2 meter long battery cable and
Crocodile clips. 550W, 2800 rpm.
|
|
|
|
|
Rotary Diesel Vane Pumps |
Vane Pump, 60 LPM
Voltage – 230V, 550W, Speed – 2800 rpm, Max Pressure – 3 bar
Head – 10 m, Negative suction – 5 m, Self Priming, Cast Iron Casing, Steel Rotor, Bypass Valve, Built in Filter, Induction
Motor with aluminum casing.
Continuous Duty.
|
|
|
|
|
Flameproof Barrel Pump |
PUMP B40 Stainless Steel
Explosion Proof Motor Rating
Inlet 55 mm
Outlet 20 mm
Head 2.5 m
Flow 50L/min
Power 0.12 KW
Speed 2800 rpm
Voltage 220V
50 Hz
Explosion Proof
Tube Stainless Steel
|
|
|
|
|
Gear Oil Pump |
B-Series Gear Oil Pump
It is widely use in oil drum trasfer pump. oil refinery, electric power plant, substation and oil depot.
Petrolchemical industry, heavy oil, lipid , various catalyst, chemical fibrous slurry, water, diesel ,avaiation , kerosene.
AES, LAS, AOS, K12, Glycerol, sorbitol, fatty alcohol, shampoo, dishwashing liquid, body wash, toothpaste, washing powder slurry, Fuel pigment, various slurry, auxiliary chemicals, leather auxiliries, silicone oil, suspension, various kind of colloid material etc.
Paint, dope, printing ink, insulation varnish, resin, auxiliaries, organic solvent etc. Working principle - Double Gears, Max Operating temperature - 80 degree celcius, Casing parts material - Cast Iron, Max Viscosity - 300 CST, Drive rating 370 Watt, In/Out Caliber - 20 mm, Discharge pressure - 3 bar, Flow rate - 30 LPM, Discharge Head 30 meter, Negative suction 3 meters, Self Priming, Available in 230V.
|
|
|
|
|
Dc Gear Oil Pump |
HEAVY DUTY REAR MOUNT OIL GEAR PUMP 12 V SCAVENGE
PRODUCT DESCRIPTION
This pump is a gear pump, the best kind of pump for oil scavenging. Bronze gears. Brass pump body.
12v DC with splash resistant wiring. Two 1/2" barbed fitting included.
The same oil that it scavenges also lubes up its gears. These pumps are suitable for remote systems as oil scavenge pumps.
FEATURES
Self Priming, Corrosion resistance, Soft Noise Absorbing Mounts, Pump body: Brass, Shaft: Steel
Seal: Fluoro elastomer lip seal, Voltage: 12V DC, Flow capacity: 14 Litre per, 120 Watt
Self-priming - Max. lift 3M, Can be mounted in any position
Twin core wire Current Draw: 6 Amp (max. 10 Amp)
Dimensions: Length 155.5mm x Width 119mm x Height 103mm
|
|
|
|
|
Diaphragm Pump |
Model – B-30 DC
Diaphragm Pump
Open Flow – 10 Liter / min
Pressure – 17 PSI
Amps – 2.2
Suction – 6 meter
Head – 5 meter
Can be used for Chemicals, Water
Transfer, Water Sprinkler Systems
Built in Pressure Switch.
Motor – Permanent Magnet
|
|
|
|
|
Dc Submersible Pump |
For transfering diesel, water, chemicals from Tanks and Barrels
Voltage - 12 V
Current - 2A / 1A
Capacity Max - 16 L/min
Max Head - 5 meter
Dia of the outlet - 19 mm
Dia of Submersible Pump - 50 mm
Overall length of Cable with battery - 2 meter
Clamps
Additional Information:
Minimum Order Quantity: 1 Piece
|
|
|
|
|
Dc Diesel Transfers Pump |
B-40 DC12
Available in 12volts version, By-pass valve, incorporated in the pump body. DC brush motor with permanent magnet stator. Motor protection class IP55. Used in 30 minute cycle. Flow rate - 40 LPM, Head 7 m , Negative Suction 5 meter, 1” Connectors
Additional Information:
Minimum Order Quantity: 1 Piece
|
|
|
|
|
Dc Continuous Diesel Transfer Pump |
HIGH FLOW DC TRANSFER PUMP
B-100 DC 12V Continuous Duty
Positive displacement Rotary
Vane Pump, designed for heavy. Duty working upto 100 LPM with low noise. Only suitable for Diesel and Biodiesel. Inlet 1” . Strong self suction, Upto 4 m vertical. Head Max 15m. Bypass Valve incorporated. In pump body. Ideal for mounting into plant equipment, excavators
etc. Max Flow – 100 LPM.
Low Box with gear box to reduce Motor speed. Rotor diameter 68 mm. RPM 2800
|
|
|
|
|
Static Mixers |
Product Details:
Minimum Order Quantity 10 Piece
Brand AMSPA
Design Type Standard
The offered Disposable Static Mixers are widely used by our clients for resin and hardener. These are available in different specifications in terms of gauge sizes and length. In addition, these can be easily attached to dispense valve in the dispense machinery. We offer these mixers at the most affordable prices to our valuable clients.
|
|
|
|
|
Te Glue Dispensing Needles |
The TE series consist of stainless steel cannula with double helix polypropylene hub. This premium line of dispensing tips is bur free, and has an electro polish cannula for unobstructed and consistent material flow. In addition they are silicone and chloride free. Available in 14, 15, 18, 20 gauges. Pack size 50 pc.
|
|
|
|
|
Tt Glue Dispensing Needles |
Product Details:
Brand AMSPA
These tips are molded in high density polyethylene with UV light block additive and include a double helix Luer lock hub. The tapered tip prevents blockage and increases the flow of high viscosity materials. Techcon UK make. Sold in packs of 50.
Available guage sizes - 14", 16", 27"
Additional Information:
Item Code: TT
|
|
|
|
|
Adhesive Syringe Barrel |
Product Details:
Minimum Order Quantity 50 Piece
Brand AMSPA
Adhesive dispensing barrel. Highly stable and accurate design with minimal resistance and ultra parallel uniformity over length of syringe barrel enables this premium product the first choice for packaging high value fluids and accurate dispensing.
All dispensing barrels are designed to be integrated seamlessly with any of our liquid dispensing units. Designed for any production setting, they come in size from 3 cc to 55 cc and in UV blocking amber and black versions for sensitive UV materials. All disposable barrels have a Luer Lock Adapter to easily attach dispensing tips. The round bottom design allows for ease of dispensing more viscous materials.
Available in Clear , Amber and Black
3 cc, 5 cc, 10 cc, 30 cc, 55 cc
MOQ 55 CC Barrel
|
|
|
|
|
Liquid Dispenser Barrel Adapter |
The adapter assembly consists of a clear tubing with an adapter head on one end (which holds the barrel) to an adapter tab on the other end which fits into the dispenser controller. The adapter assembly that connects the barrel to the controller delivers the air supply to the piston inside the syringe. The piston pushes the material forward and, using vacuum, pulls back to control dripping. O rings in the adapter head keep the syringe snug.
|
|
|
|
|
Adhesive Barrel End Caps |
Designed to seal large end of the barrel to ensure no contaminants come in contact with material during storage and shipment. Made from polypropylene.
|
|
|
|
|
Barrel Piston |
Designed with close tolerences to precisely fit inside the syringe barrel, the easy flow series piston requires less pressure to dispense fluids consistently and prevent air from becoming trapped during the dispensing process.
|
|
|
|
|
Dispensing Gun Valve For Sealants |
Dispensing gun for silicone and hemflange sealants for automotive body shop
for applying sealant to closure panels. Low cost economical. Good substitute for graco guns. For automotive industry.
Used for applying sealants like Silicone directly from pumps.
|
|
|
|
|
Stainless Steel Pressure Pot |
Product Details:
Brand AMSPA
The pressure pot high pressure
100 PSI is designed to accommodate
all Solvent and Epoxy Fluids as well
As CA and UV’s. It also accommodates for continuous path from the reservoir to the point of use.
Easily handles fluids with viscosity
Up to 50000 cps.
Capacity 1 liter
|
|
|
|
|
Te Bent Dispensing Tips |
The TE tips are precision bent at 45 degree angles. Perfect for dispensing fluid in hard to reach places.
1/2"
Colour - Olive 14G , Amber 15G, Green 18G, Pink20G, Purple 21G, Blue 22G, Orange 23G , Red 25G, Transparent 27G, Light Purple 30 G, Yellow 32G, Light Green 34 G
Additional Information:
Minimum Order Quantity: 10 Piece
|
|
|
|
|

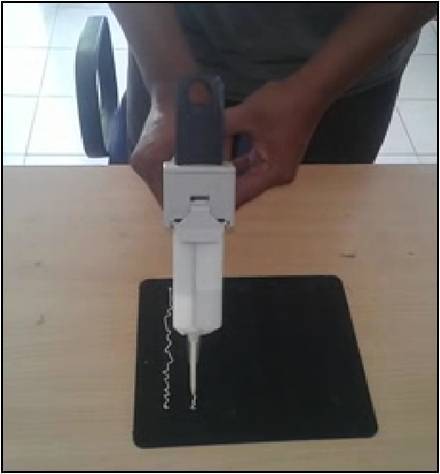

Caulking Gun |
2 component, 50 ml, 3 mm .Type 1:1 & 2:1 ratio manual Caulking gun.
|
|
|
|
|
Cc Helix Dispenser Syringe Barrel |
Helix Luer Lock Tip Dispenser Syringe Barrel w Adapter and Piston. The dispenser barrels made in PP. It's the best application for your liquid dispensing, glue and other adhesive dispensing. 300 cc syringe barrel.
Unit consists of 300 cc barrel + Piston + Adaptor
|
|
|
|
|
Cartridge |
Two Component Adhesive 50 ml
AB Glue Cartridge (1:1.01) Mixing
Ratio. Material of Cartridge PP,
Material of Plunger PE.
Can be used with 2 Component Dispenser of 5 ml AB Glue Gun
Additional Information:
Minimum Order Quantity: 1 Piece
|
|
|
|
|
Dispensing Needles |
7 mm Flat Type Brush.
Round brush hub 42 mm x 6 mm
Length and hub diameter.
Plastic hard hair in yellow.
14,15,18,20,21,22,23,25,27G.
Additional Information:
Minimum Order Quantity: 10 Piece
|
|
|
|
|
Metal Cartridge |
Product Details:
Minimum Order Quantity 1 Piece
Brand AMSPA
330 g toughned metal cartridge
for disepensing directly from silicone cartridge
|
|
|
|
|
Static Mixer |
Product Details:
Model AMSPA
Static Mixers for 50 ml Cartridges.
|
|
|
|
|
Uhmwpe Diaphragm Valve |
Approx Price: Rs 35,000 / Piece
Minimum Order Quantity: 1 Piece
Product Details:
Brand AMSPA
Max Operating Pressure 5 Bar
Operating Pressure 4 Bar
500 Cycles per minute
Diaphragm Valve
Body – AL
Piston SS303
O ring NBR
Valve Head UHMW PE / Diaphragm UHMW PE
0.3 Liter / Min Max
1~5000 Cps
|
|
|
|
|
Barrel Pump |
Product Details:
Minimum Order Quantity 1 Unit
Power Source Electric
PUMP
Rated input Power-750W (1HP)
Rated Frequency- 50 Hz, 220
Variable Speed Motor
No-load speed-300--15000 r/min. Hydraulics lift- 15 m.
Delivery Capacity- 30-100 L/min. Suction Tube – Aluminium, Impeller – PP
Inlet – 40 mm, Outlet – 25 mm
OPTIONAL ACCESSORIES
Mechanical Turbine Flow meter 1 % accuracy
Assorted Connectors
Automatic Cut Off Nozzle 1”
Black Crimped Rubber Hose 4 meter
Mechanical Flow Meter Nozzle
|
|
|
|
|
Diesel Barrel Pump |
Product Details:
Power Source Electric
Motor Horsepower 1 HP
Maximum Discharge Flow 110 LPM
PUMP
Rated input Power-750W (1HP)
Rated Frequency- 50 Hz, 220
Variable Speed Motor
No-load speed-300--15000 r/min. Hydraulics lift- 15 m.
Delivery Capacity- 30-100 L/min. Suction Tube – Aluminium, Impeller – PP
Inlet – 40 mm, Outlet – 25 mm
OPTIONAL ACCESSORIES
Electronic Turbine Flow meter 1 % accuracy
Assorted Connectors
Automatic Cut Off Nozzle 1”
Black Crimped Rubber Hose 4 meter
Mechanical Flow Meter Nozzle
|
|
|
|
|
Diesel Dispenser |
Product Details:
Minimum Order Quantity 1 Piece
Brand AMSPA
Machine Type Semi-Automatic
Model - ETP-60AF AC 220 V
Cast Iron Vane Pump Continuous Working Principle. Pump In & Out – 1”.Max Flow – 60 LPM Power – 550W , Speed – 2800 rpm, Voltage – 220 V SINGLE PHASE, SELF PRIMING. Suction – 5m, Head – 10 m, Connector, Filter, MS Panel Frame, Mechanical Turbine Flow meter 20-120 LPM , Accuracy 1%, Rubber Hose 4 m for delivery, 2 meter Nylon hose for suction. 50 Micron Filter, 1” Manual Nozzle, Crimped Hoses.
Diesel Dispenser - 1
|
|
|
|
|
Flame Proof Fuel Dispenser |
Model – B80 ExA-Cast Iron
Electric Self Priming Pump for flammable media
Gasoline, Diesel , Kerosene. Rotary Vane Pump. Built in Bypass Valve. Built in Filter. Easy accessible for cleaning. Explosion Proof
Induction motor with Aluminium casing. Continuous working principle. Applicable for
Transferring media from barrel, underground Tanks, tankers and overhead tank. Flow rate -80 LPM, 1” Port, 220V, 550 W, 2800 rpm, Suction – 5m , Head – 15 m
1” Manual Nozzle.4 meter crimped rubber hose. Filter. 2 meter Nylon crimped Hose, 1” Mechanical Turbine Flow Meter, Accuracy + 1%
Assorted Connectors
|
|
|
|
|
Flame Proof Fuel Dispensers |
Product Details:
Minimum Order Quantity 1 Piece
Brand AMSPA
Capacity 80 LPM
Machine Type Semi-Automatic
ETP-80EX120
Model – B80 Ex-Cast Iron
Electric Self Priming Pump for flammable media . Gasoline, Diesel , Kerosene. Rotary Vane Pump. Built in Bypass Valve. Built in Filter. Easy accessible for cleaning. Explosion Proof
Induction motor with Aluminium casing. Continuous working principle. Applicable for
Transferring media from barrel, underground Tanks, tankers and overhead tank. Flow rate -80 LPM, 1” Port, 220V, 550 W, 2800 rpm, Suction – 5m , Head – 15 m.1” Automatic Cut Off Nozzle.4 meter crimped rubber hose. Filter. 2 meter Nylon crimped Hose. MS Panel. Mechanical Aluminum Oval Gear Flow Meter.
|
|
|
|
|
Flame Proof Fuel Transfer Skid |
ETP-80EX120
Model – B80 Ex-Cast Iron
Explosion Proof Motor .Electric Self Priming Pump for flammable media
Gasoline, Diesel , Kerosene. Rotary Vane Pump. Built in Bypass Valve. Built in Filter. Easy accessible for cleaning. Explosion Proof
Induction motor with Aluminium casing. Continuous working principle. Applicable for
Transferring media from barrel, underground Tanks, tankers and overhead tank. Flow rate -80 LPM, 1” Port, 220V, 550 W, 2800 rpm, Suction – 5m , Head – 15 m
1” Automatic Cut Off Nozzle.4 meter crimped rubber hose. Filter. 2 meter Nylon crimped Hose.
Additional Information:
Minimum Order Quantity: 1 Unit
|
|
|
|
|
Diesel Transfer Skid |
For Fuelling Diesel, Kerosene. Vane Pump, 60 LPM , Voltage – 230V, 550W, Speed – 2800 rpm, Max Pressure – 3 bar, Head – 10 m, Negative suction – 5 m, Self Priming, Cast Iron Casing, Steel Rotor, Bypass Valve, Built in Filter, Induction Motor with aluminum casing.
Continuous Duty ROTARY VANE PUMP. Assorted Connectors. 4 meter crimped rubber hose, 2 meter Nylon wire braided crimped hose, Filter , 1” manual Nozzle, strainer
Additional Information:
Minimum Order Quantity: 1 Unit
|
|
|
|
|
Diesels Dispenser |
For Fuelling Diesel, Kerosene. Vane Pump, 60 LPM , Voltage – 230V, 550W, Speed – 2800 rpm, Max Pressure – 3 bar, Head – 10 m, Negative suction – 5 m, Self Priming, Cast Iron Casing, Steel Rotor, Bypass Valve, Built in Filter, Induction Motor with aluminum casing.
Continuous Duty Rotary Vane Pump. Assorted Connectors. 4 meter crimped rubber hose, 2 meter Nylon wire braided crimped hose, Filter , 1” Mechanical Flow Meter Nozzle, Accuracy + 1% strainer.
Additional Information:
Minimum Order Quantity: 1 Piece
|
|
|
|
|
Diesels Dispensers |
For Fuelling Diesel, Kerosene. Vane Pump, 60 LPM , Voltage – 230V, 550W, Speed – 2800 rpm, Max Pressure – 3 bar, Head – 10 m, Negative suction – 5 m, Self Priming, Cast Iron Casing, Steel Rotor, Bypass Valve, Built in Filter, Induction Motor with aluminum casing.
Continuous Duty ROTARY VANE PUMP. Assorted Connectors. 4 meter crimped rubber hose, 2 meter Nylon wire braided crimped hose, Filter , 1” manual Nozzle, strainer, 1” Mechanical Oval Gear Flow Meter. + 0.3%
Accuracy.
Additional Information:
Minimum Order Quantity: 1 Piece
|
|
|
|
|
Diesels Dispenserss |
For Fuelling Diesel, Kerosene. Vane Pump, 60 LPM , Voltage – 230V, 550W, Speed – 2800 rpm, Max Pressure – 3 bar, Head – 10 m, Negative suction – 5 m, Self Priming, Cast Iron Casing, Steel Rotor, Bypass Valve, Built in Filter, Induction Motor with aluminum casing.
Continuous Duty Vane Pump. Electronic turbine Flow meter. Assorted Connectors., Accuracy + 1%, 4 meter crimped rubber hose, 2 meter Nylon wire braided crimped hose, Filter , 1” manual Nozzle, strainer
Additional Information:
Minimum Order Quantity: 1 Unit
|
|
|
|
|
Flameproof Barrel Pumps |
PUMP B40
Explosion Proof
Inlet 55 mm
Outlet 20 mm
Head 2.5 m
Flow 50L/min
Power 0.12 Ex
Speed 2800 rpm
Voltage 220V
50 Hz
Explosion Proof
Tube Material
STAINLESS
STEEL
Impeller port PP
OPTIONAL
4 meter Crimped Rubber Hose
1” Manual Nozzle
Nozzle
Mechanical Flow Meter Nozzle
Mechanical Flow Meter.
Additional Information:
Minimum Order Quantity: 1 Unit
|
|
|
|
|
Dc Diesel Pump Flow Meter Unit |
Available in 12 /24 volts , 1” treaded connectors . Cast Iron pump. Vane pump. By-pass valve, Direct current brush motor with permanent magnet stator. Motor protection class IP55. Used in 30 minute cycle. Flow rate - 40 LPM. Head 7-10 meter, Negative Suction – 5 meter. 1” Electronic Turbine Type Flow meter 20-120 LPM clamped on the discharge of the pump. 1% Accuracy.
|
|
|
|
|
Dual Voltage Dc Diesel Transfer Kit |
Product Details:
Minimum Order Quantity 1 Piece
Brand AMSPA
Model B-70 DCN Dual 12/24
Max Flow Rate 70 LPM
Head 10 Meters
B-70 DCN Dual 12/24
70 LPM Dual Voltage DC diesel Transfer Pump. Dual 12 24 V. 550W. Positive Displacement Rotary Vane Pump. Suitable for Kerosene, Bio Diesel. Idea for mounting on Plant equipment, excavators etc. Vane Pump with rotor. Foot Mounting plate. By-pass valve incorporated into the pump Body. Complete with switch, carry handle. Standard 2 meter long battery cable and Crocodile clips. 550W, 2800 rpm. 2 meter black crimped hose, Filter, 1” Automatic Cut Off Nozzle.
|
|
|
|
|
Flameproof Mobile Fuel Dispenser |
ETP- 75AOGMRFT
Ready flameproof flow metering units for fitting directly to Tankers. Comes in Box
with Filter. Can be mounted directly. For diesel, gasoline, kerosene, mineral spirits, Standard solvent . Flame-proof permanent magnet motor with thermal overload protection. Built-in strainer, bypass valve Ball bearing construction, no lubrication required 1" diameter, 4 meter hose and 1 automatic shut off nozzle, boot that protects against dirt and contamination. 2" threaded base for tank openings Corrosion-Proof section pipe. Rain proof, water proof 30-minute duty cycle/not for continuous operation. Body – Cast Iron, Available flow rate – 75 LPM , Voltage DC12 DC24, Inlet 3/4” NPT, 1” NPT, Threaded tank adapter 2” NPT, Oval Gear Flow Meter Accuracy +/- 0.5%, Repeatability 0.2%, 360 degree Swivel
|
|
|
|
|
Flameproof Mobile Fuel Dispensers |
ETP- 75ATSMFT
Ready flameproof flow metering units for fitting directly to Tankers. Comes in Box
with Filter. Can be mounted directly. For diesel, gasoline, kerosene, mineral spirits, Standard solvent . Flame-proof permanent magnet motor with thermal overload protection. Built-in strainer, bypass valve Ball bearing construction, no lubrication required 1" diameter, 4 meter hose and 1 automatic shut off nozzle, boot that protects against dirt and contamination. 2" threaded base for tank openings Corrosion-Proof section pipe. Rain proof, water proof 30-minute duty cycle/not for continuous operation. Body – Cast Iron, Available flow rate – 75 LPM , Voltage DC12 DC24, Inlet 3/4” NPT, 1” NPT, Threaded tank adapter 2” NPT, Mechanical Turbine Type Flow Meter Accuracy +/- 1%, Repeatability 0.2%, 360 degree Swivel.
|
|
|
|
|
Mobile Diesel Dispenser |
Product Details:
Minimum Order Quantity 1 Piece
Machine Type Semi-Automatic
ETP-70OGMFT ( DUAL VOLTAGE 12 & 24 v ) – Ready to Mount
For fuelling Diesel and Kerosene. Pump head with Iron material and 100% Cooper line. IP54 protection. Pump with bypass and self priming . Flow rate – 70 LPM, 550W, Pressure 3 bar. Suction 5 m, Head 10.Analog Oval Gear Flow Meter 20-120 LPM range + 0.5% Accuracy. Crimped Rubber Hose 4 meter , 1” Automatic Nozzle, Connectors, MS Panel Box and Filter and Secure Lock. 360 degree Swivel
|
|
|
|
|
Mobile Diesel Dispensers |
ETP-70AFT ( DUAL VOLTAGE 12 & 24 V ) – Ready to Mount. For fuelling Diesel and Kerosene. Pump head with Iron material and 100% Cooper line. IP54 protection. Pump with bypass and self priming . Flow rate – 70 LPM, 550W, Pressure 3 bar. Suction 5 m, Head 10. Mechanical Turbine Flow Meter 20-120 LPM range + 1% Accuracy. Crimped Rubber Hose 4 meter , 1” Manual Nozzle, Connectors, MS Panel Box and Filter and Secure Lock. 360 degree Swivel.
|
|
|
|
|
Mobiles Diesel Dispenser |
ETP-40AFT – READY TO MOUNT. Mechanical Turbine Type Flow meter1”, inlet. 20-120 LPM range 1% Accuracy. Cast Iron pump 40 LPM, 12V with anti corrosion paint. Vane pump with sintered steel rotor. By-pass valve, pressure control valve and overload protector incorporated in the pump body. Motor protection class IP54. Rubber Hose 4 meter, Manual Nozzle, Connectors , MS Box frame and Filter. Crimped Hoses. 360 Degree Swivel.
|
|
|
|
|
Brass Y Strainer |
High quality fabricated Brass Y Strainers 25mm, Its high ability to bear pressure, long life and resistance to corrosion make it ideal for use in various water treatment, oil and gas plants. Available in Screwed End
Features:
High accuracy
Rugged in performance
Robust designing
|
|
|
|
|
Diesel Filter |
Diesel Filter 1”
Outstanding fuel filtration efficiency
High fuel flow rate
Low flow resistance
High dust holding capacity
Heavy duty construction
Good temperature resistance
Good anti-humidity performance
Durable and long lifespan
Economical, practical and easy to install.
Additional Information:
Minimum Order Quantity: 1 Piece
|
|
|
|
|
Flameproof Mobiles Fuel Dispenser |
Product Details:
Minimum Order Quantity 1 Unit
Brand AMSPA
Capacity 75
Machine Type Semi-Automatic
ETP- 75AOGM40FT
Ready flameproof flow metering units for fitting directly to Tankers. Comes in Box
with Filter. Can be mounted directly. For diesel, gasoline, kerosene, mineral spirits, Standard solvent . Flame-proof permanent magnet motor with thermal overload protection. Built-in strainer, bypass valve Ball bearing construction, no lubrication required 1" diameter, 4 meter hose and ¾” automatic shut off nozzle, boot that protects against dirt and contamination. 2" threaded base for tank openings Corrosion-Proof section pipe. Rain proof, water proof 30-minute duty cycle/not for continuous operation. Body – Cast Iron, Available flow rate – 75 LPM , Voltage DC12 DC24, Inlet 3/4” NPT, 1” NPT, Threaded tank adapter 2” NPT, Oval Gear Flow Meter Accuracy +/- 0.5%, Repeatability 0.2%.
|
|
|
|
|
Grease Guns |
Product Details:
Minimum Order Quantity 1 Piece
Brand AMSPA
Model 500 CC
Aluminium Head. Produces pressure of 6000 psi.
Air can be released either through filler nipple or by half turn of the head assembly.
Duly fitted with filler nipple.
Knurled barrel for easy grip.
Available in 500 cc.
Available with 6" crank tube with 4 jaw coupler.
Threads available in : 1/8BSPT, 1/8NPT or M10.
|
|
|
|
|
Mobile Digital Dispenser |
Product Details:
Minimum Order Quantity 1 Piece
Brand AMSPA
Capacity 60 LPM
Machine Type Semi-Automatic
ETP-60EFT – Ready to Mount
For fuelling Diesel and Kerosene. Pump head with Iron material and 100% Cooper line. IP54 protection. Pump with bypass and self priming.
Flow rate – 60 LPM, 200W, 12V 3 bar. Suction 5 m, Head 10. Digital Oval Gear Flow Meter 20-120 LPM range + 0.5% Accuracy. Crimped Rubber Hose 4 meter , Manual Nozzle, Connectors, MS panel Box and filter and Secure Lock.
360 degree Swivel
|
|
|
|
|
Oil Dispenser |
CAST IRON GEAR PUMP DISPENSER
( B-30ATSN12)
FOR DIESEL, OIL , LUBRICANTS,
FURNACE OIL, BIO DIESEL
Specifications
Working Principle – Double Gears
Max Operating Pressure – 80 degree C, Casing Parts Material – Cast Iron, Max Viscosity – 300 CST , Drive Rating – 370W, In / Out Caliber – 20 mm, Discharge side pressure – 3 Bar
Flow Rate – 30 LPM, Self Priming
Negative Suction- 3 meter
Head – 30 meter, Available in 220 V
Turbine Type Flow Meter 1”
Manual Nozzle – ¾”inlet
4 meter black Crimped Rubber Hose for delivery, 2 meter crimped nylon wire braised hose for suction. Foot Valve
Additional Information:
- Minimum Order Quantity: 1 Piece
|
|
|
|
|
Dc Diesel Transfers Pumps |
Product Details:
Minimum Order Quantity 1 Unit
Brand AMSPA
Model B-40 DC
Max Flow Rate 40 LPM
Head 7 M
Battery DC ( 12/24 V DC Fuel Pump )
Material - Cast Iron , Head - 10 meter, Power - 160 W, Flow rate 40 LPM
Only suitable with diesel or bio diesel kerosene
Ideal for mounting into plant equipment, excavators etc.
Maximum Flow 40 LPM, 3/4" BSPF ports
Direct Drive Vane Pumping unit with bypass valve
Complete with switch, carry handle.
Battery Cable and Crocodile clips.
Weather proof to IP54 for outdoor use.
Maximum run time 30 minute
Self Priming DC Oil Pump
Fluid viscosity - 2-20 cst
Negative suction 2 meter
Working Speed 2800 rpm
Noise Level < 70 dB(A)
Bypass Valve
Cast Iron Casing. Sintered steel rotor, acetalic vanes
|
|
|
|
|
Diesel Barrel Pump Dispensers |
PUMP
Rated input Power-750W (1HP)
Rated Frequency- 50 Hz, 220
Variable Speed Motor
No-load speed-300--15000 r/min. Hydraulics lift- 15 m.
Delivery Capacity- 30-100 L/min. Suction Tube – Aluminium, Impeller – PP
Inlet – 40 mm, Outlet – 25 mm
OPTIONAL ACCESSORIES
Electronic Turbine Flow meter 1 % accuracy
Assorted Connectors
Automatic Cut Off Nozzle 1”
Black Crimped Rubber Hose 4 meter
|
|
|
|
|
Diesel Dispenser For Tankers |
Product Details:
Machine Type Semi-Automatic
ETP-40AFProduct Details:
Machine Type Semi-Automatic
ETP-40AF
Mechanical Turbine Type Flow meter1”, inlet. 20-120 LPM range 1% Accuracy. Cast Iron pump 40 LPM, 12V/24V with anti corrosion paint. Vane pump with sintered steel rotor. By-pass valve, pressure control valve and overload protector incorporated in the pump body. Motor protection class IP54. Rubber Hose 4 meter delivery , Nylon hose 2 meter on the suction. Manual Nozzle, connectors , MS panel frame and Filter. Crimped Hoses
Mechanical Turbine Type Flow meter1”, inlet. 20-120 LPM range 1% Accuracy. Cast Iron pump 40 LPM, 12V/24V with anti corrosion paint. Vane pump with sintered steel rotor. By-pass valve, pressure control valve and overload protector incorporated in the pump body. Motor protection class IP54. Rubber Hose 4 meter delivery , Nylon hose 2 meter on the suction. Manual Nozzle, connectors , MS panel frame and Filter. Crimped Hoses
|
|
|
|
|
Dieselss Dispensers |
Product Details:
Minimum Order Quantity 1 Unit
Brand AMSPA
Capacity 40 LPM
Machine Type Semi-Automatic
ETP-40AFG
Mechanical Turbine Type Flow meter1”, inlet. 20-120 LPM range 1% Accuracy. Cast Iron pump 40 LPM, 12V/24V with anti corrosion paint. Vane pump with sintered steel rotor. By-pass valve, pressure control valve and overload protector incorporated in the pump body. Motor protection class IP54. Rubber Hose 4 meter delivery , Nylon hose 2 meter on the suction. Manual Nozzle, connectors , MS panel frame and Filter. Crimped Hoses.
|
|
|
|
|
Diesel Pump Flow Meter Nozzle Dispenser |
Product Details:
Minimum Order Quantity 1 Unit
Brand AMSPA
Display Remote
Model B-40LLY
Flow range(Min-Max) 40 LPM
Available in 12 /24 volts,155 W version, provide with 1” treaded connectors . Cast Iron pump with anti corrosion paint. Vane pump with sintered steel rotor. By-pass valve, pressure control valve and overload protector incorporated in the pump body. Direct current brush motor with permanent magnet stator. Motor protection class IP55. Used in 30 minute cycle. Flow rate - 40 LPM, self priming, Head 7 meter, Crimped Rubber Hose(4 meters) for delivery, 2 meter crimped Nylon wire braided hose on the suction. Filter, Mechanical Turbine Flow Meter Nozzle.
|
|
|
|
|
Diesel Pump Flow Meter Nozzle Dispensers |
Available in 12 /24 volts,155 W version, provide with 1” treaded connectors . Cast Iron pump with anti corrosion paint. Vane pump with sintered steel rotor.
By-pass valve, pressure control valve and overload protector incorporated in the pump body. Direct current brush motor with permanent magnet stator. Motor protection class IP55. Used in 30 minute cycle. Flow rate - 40 LPM, self priming, Head 7 meter, Crimped Rubber Hose(4 meters) for delivery, 2 meter crimped Nylon wire braided hose on the suction. Filter,
Oval Gear Flow Meter Nozzle.
Additional Information:
Minimum Order Quantity: 1 Piece
|
|
|
|
|
Diesel Pumps Flow Meter Nozzle Dispenser |
Available in 12 /24 volts,155 W version, provide with 1” treaded connectors . Cast Iron pump with anti corrosion paint. Vane pump with sintered steel rotor.
By-pass valve, pressure control valve and overload protector incorporated in the pump body. Direct current brush motor with permanent magnet stator. Motor protection class IP55. Used in 30 minute cycle. Flow rate - 40 LPM, self priming, Head 7 meter, Crimped Rubber Hose(4 meters) for delivery, 2 meter crimped Nylon wire braided hose on the suction. Filter,
Manual Nozzle – Inlet ¾” inch
Electronic Flow Meter.
Max Flow Rate 40 LM
Additional Information:
Minimum Order Quantity: 1 Unit
|
|
|
|
|
Diesel Transfer Kit |
Product Details:
Minimum Order Quantity 1 Unit
Brand AMSPA
Model B-40DC
Max Flow Rate 40 LPM
Head 7 Meters
Available in 12 /24 volts,155 W version, provide with 1” treaded connectors . Cast Iron pump with anti corrosion paint. Vane pump with sintered steel rotor.
By-pass valve, pressure control valve and overload protector incorporated in the pump body. Direct current brush motor with permanent magnet stator. Motor protection class IP55. Used in 30 minute cycle. Flow rate - 40 LPM, self priming, Head 7 meter, Crimped Rubber Hose(4 meters) for delivery, 2 meter crimped Nylon wire braided hose on the suction. Filter,
Manual Nozzle – Inlet 1 inch
|
|
|
|
|
Digital Turbine Diesel Flow Meter |
Application:
Digital turbine flow meters are best suited for petroleum based products. The modular design allows for maximum flexibility in meeting customer’s applications. Models are available with BSP fittings.
Features:
High precision, durable and compact turbine flow meters.
Local Display Computer features: 2 Totals (1 Resettable, 1 Cumulative); Factory Calibration in gallons and liters
Lightweight, compact design allows for easy installation.
Powered by Lithium batteries
Housing Material - Aluminium
Meter sizes available - 1"
Flow range - 1" (18.9 - 190 LPM)
Accuracy - 1%
Repeatability - /- 0.1%
Pressure rating - 21 Bar
Operating Temperature - ( - 40 degree C - 121 degree C)
|
|
|
|
|
Explosion Proof Steel Pump Flow Meter Unit |
Suitable for Alcohol
Model - B-80 Ex-SS304
Electric Self Priming Pump for flammable media, Alcohol, Gasoline, Diesel , Kerosene, Chemicals and Solvents. Stainless Steel SS304 Rotary Vane
Pump. Built in Bypass Valve. Built in Filter.
Easy accessible for cleaning. Explosion Proof, Induction motor with Aluminium casing. Continuous working principle. Applicable for Transferring media from barrel, underground Tanks, tankers and overhead tank. Flow rate -80 LPM, 1” Port, 220V, 550 W, 2800 rpm, Suction – 5m , Head – 20m -
Connectors – Stainless Steel (SS304)
Mechanical Turbine Flow meter
PP Wetted Parts, Buna – N Seal
|
|
|
|
|
Flame Proof Barrel Pump |
Explosion proof barrel pump
PUMP B40
Explosion Proof Motor
Inlet 55 mm
Outlet 20 mm
Head 2.5 m
Flow 50L/min
Power 0.12 Ex
Speed 2800 rpm
Voltage 220V
50 Hz
Explosion Proof
Tube Material
Aluminum
Also available in Stainless Steel.
|
|
|
|
|
Flame Proof Barrel Pump Dispensers |
PUMP B40
Inlet 55 mm
Outlet 20 mm
Head 2.5 m
Flow 50L/min
Power 0.12 Ex
Speed 2800 rpm
Voltage 220V
50 Hz
Explosion Proof
Tube Material
Aluminum
Impeller port PP
OPTIONAL
Black Crimped Rubber Hose
4 meter
1” Manual Nozzle
Flow Meter Nozzle
Additional Information:
Minimum Order Quantity: 1 Unit
Delivery Time: Immediate
|
|
|
|
|
Flameproof Mobiles Fuel Dispensers |
Product Details:
Machine Type Semi-Automatic
ETP-75AFT FLAME PROOF – READY TO MOUNT
Ready flameproof flow metering units for fitting directly to Tankers. Comes in Box
with Filter. Can be mounted directly. For diesel, gasoline, kerosene, mineral spirits, Standard solvent . Flame-proof permanent magnet motor with thermal overload protection. Built-in strainer, bypass valve Ball bearing construction, no lubrication required 1" diameter, 4 meter hose and 1" manual nozzle boot that protects against dirt and contamination. 2" threaded base for tank openings Corrosion-Proof section pipe. Rain proof, water proof 30-minute duty cycle/not for continuous operation. Body – Cast Iron, Available flow rate – 75 LPM , Voltage DC12 & DC24, Inlet 3/4” NPT, 1” NPT, Threaded tank adapter 2” NPT, Accuracy +/- 1%, Repeatability 0.2%.
|
|
|
|
|
Plastic Digital Flow Meter |
Product Details:
Minimum Order Quantity 1 Unit
Model AMSPA
K24 Turbine flow meter for water, fuels & chemicals
(PPC BODY (POLYPHENYLENE PLASTIC)
The K24 is a high accuracy
durable and compact
Flow meter which has 2
Cumulants 1 resetting &
1 accumulating) and gallon
or liter option, PPS body.
It us suitable for diesel,
Chemical industry, medicine
And other corrosive medium
Measurement.
Inlet & Outlet NPT 1”, BSP1”
Flow range - 20-120 LPM
Accuracy – /- 1%
Repeatability Error < 0.2%
Pressure Class – 20 Bar
Digital LCD
Temperature range -10 -50 degree C
Power - 2x1.5V DC AAA Batterie
|
|
|
|
|
Dc Continuous Duty Pump |
Positive displacement Rotary
Vane Pump, designed for heavy. Duty working upto 100 LPM with low noise. Only suitable for Diesel and Biodiesel. Inlet 1” . Strong self suction, Upto 4 m vertical. Head Max 15m. Bypass Valve incorporated. In pump body. Ideal for mounting into plant equipment, excavators
etc. Max Flow – 100 LPM.
Low Box with gear box to reduce Motor speed. Rotor diameter 68 mm. RPM 2800
|
|
|
|
|
Flameproof Stainless Steel Transfer Pump |
Model - B-80 Ex-SS304
Explosion Proof Motor Rating – ExdII BT4 IP55
Electric Self Priming Pump for flammable media
Gasoline, Diesel , Kerosene, Chemicals and
Solvents. Methanol, Stainless Steel SS304 Rotary Vane
Pump. Built in Bypass Valve. Built in Filter.
Easy accessible for cleaning. Explosion Proof
Induction motor with Aluminium casing.
Continuous working principle. Applicable for
Transferring media from barrel, underground
Tanks, tankers and overhead tank.
Flow rate -80 LPM, 1” Port, 220V, 550 W,
2800 rpm, Suction – 5m , Head – 15 m
NET WEIGHT – 10 KG
Additional Information:
Minimum Order Quantity: 1 Piece
|
|
|
|
|
Syringe Caulking Gun |
Syringe Gun dispensers are designed for the controlled application of pastes, gels, adhesives and fluids. A cost effective quality made syringe dispensing gun for use with standard 55cc/ 55ml size syringe barrels. Ideal for low volume production, re-work or repair.
Push the top button to release and pull back the plunger rod. Simple bayonet twist on/ twist off syringe barrel attachment. Ideal manual gun for dots or beads of solder paste, solder flux, RTV, silicones, sealants, gels, greases and compounds.
Simple bayonet twist on/ twist off barrel attachment. Ideal for applying solder paste, solder flux, RTV, silicones, sealants, gels, greases, compounds, PVA glues and other liquids. Each Syringe Gun includes the 55cc manual hand gun, (1) dispensing reservoir with piston, (2) dispensing tip.
Additional Information:
Minimum Order Quantity: 1 Piece
|
|
|
|
|
Diesel Barrel Pumps |
PUMP
Rated input Power-750W (1HP)
Rated Frequency- 50 Hz, 220
Variable Speed Motor
No-load speed-300--15000 r/min. Hydraulics lift- 15 m.
Delivery Capacity- 30-100 L/min. Suction Tube – Aluminium, Impeller – PP
Inlet – 40 mm, Outlet – 25 mm
OPTIONAL ACCESSORIES
Mechanical Turbine Flow meter
Electronic Turbine Flow Meter
1% Accuracy
Assorted Connectors
Automatic Cut Off Nozzle 1”
Black Crimped Rubber Hose 4 meter
Additional Information:
Minimum Order Quantity: 1 Unit
|
|
|
|
|
|
|
|
|
