Ac Synchronous Servo Motors |
A.C. Synchronous Servo Motor
These motors are operated from single phase source with R-C Phase shifting network. The speed of the motor is proportional to applied frequency of the supply. It attains its full synchronous speed within 5 to 25 ms. We manufacture various models of motors with torque capacities of 2.5, 3, 5, 7,10, 20, 30, 40, 60 kg.cm. We also make as per your requirements.
Our range is manufactured by using high grade copper, stampings, milmex paper, varnish, inner, rods and shafts
Features:
Permanent Magnet AC Motors - No winding on rotor.
Extremely rapid starting, stopping and reversing characteristics.
Basic constant synchronous speed of 60 rpm at 50 Hz.
Torque from 2 kg.cm to 60 kg.cm.
Gearing possible to achieve reduced speeds Built in overload protection -motor stops if overloaded but does not burn.
Starting and operating currents are identical.
Magnetically rotor can be locked by D.C. applying.
Power coated cast aluminium body with steel shaft.
Applications:
These motors are finding applications in servo control applications where precise positioning is required. The Instantaneous starting stopping and reversing characteristics of the motors make them very aptly suited for following applications among many:
Servo Voltage Stabilizers.
Diamond machines.
D.C Drives.
Precise positioning.
Valve Controls.
Automated Welding Equipments.
Medical Equipments.
Conveyor Systems.
Actuators.
Fluid Metering.
Textile edge guide control.
Paper Feed.
Characteristics:
A.C. Operation : Motor can be directly connected to 240 V; 50Hz, supply along with "APPLE" supplied R-C network in series with one of the stator winding. Change of this R-C network from one winding to other results reversal of motor direction. Single pole three position switch can be used for Forward, Reverse and Off control as shown in the following diagram. Metal varistor oxide may be used to minimize the switch contact arcing.
Starting : Motor start within 1 1/2 Cycles of its applied frequency & will reach 60 RPM within 5 to 30 ms at 50 Hz. Since motor has no significant current rise on starting, this motor is ideal to an application which requires six or more starts per minute.
Stalling : Motor will not be overheated if stalled because starting, full load and no load currents are same. However prolonged operation against a solid stop will eventually produce bearing failure due to the resultant shaft vibrations.
Inertia Limitations : Since the motors are having extremely rapid starting, there is a limit to the inertia load at which the motor will start from rest. Addition of resilient coupling with app. 5 degree of rotational freedom or gearing with backlash between motor & load can increase the permissible inertia load handing capability.
Phase Shift Network : The values of R-C network have considerable effect on motor performance. They have been chosen by "APPLE"' in such a manner that no reverse torque is produced when voltage is applied.
R-C values should not be varied more than 5% so as to enhance smoother starting, give quieter operation, maximize torque & improve efficiency.
Other values may be recommended by "APPLE" for the continuous duty specific OEM application.
Stopping & Holding (Braking) : Due to magnetic rotor, these motors decelerate faster than conventional motors and stop within 5 degree after turnoff with no external inertia. Application of D.C. supply to one or both motor windings after removal of A.C. supply results deceleration time 1/10th to 1/20th those available with conventional motor & the motor shaft is electrically locked after the stop. A typical circuit for applying, stopping & or holding current is shown in the following diagram.
Back Driving : These motors act as generators when back driven. Rotating in access of 1400 RPM is not recommended because high voltages can be generated. At 1400 RPM or below suitable precautions for protection of personnel/phase shift capacitor & any other connected circuitry may be necessary when back driving.
60 Hz Operation : These motors may be operated on 60 Hz, but may require a different R-C network, the factory must be consulted. Torque rating should be similar to those shown for 50Hz & speed is 72 RPM @ 60 Hz.
|
|
|
|
|
Microservo Voltage Controller |
microServo Voltage Controller
This product is designed with innovative software algorithms residing on latest technology PIC microcontroller chips. The design is conceived so as to reduce production overheads like wiring and testing when it is put on the servo voltage stabilizer. Integrated voltage stabilizer controller greatly reduces labour costs and increases production rate of the voltage stabilizers.
Features
Advanced PIC Microcontroller based, indigenous design.
Panel mounted Servo Voltage Controller.
Inbuilt driver for AC synchronous servo motor.
Bright 3 digit, 7 Segment display.
Measures & displays 4 parameters including:
Output Voltage, Input Voltage, Output Current, Frequency
Auto trip for Under voltage, Over voltage and Over load with time delay.
Audio/Visual alarm.
Manual mode for field testing.
Fully programmable (on-site/off-site) with 2-level password protection.
User programmable parameters:
Under Voltage, Over Voltage, Over Load, Time delay, Output voltage, Sensitivity, CT Ratio
Advantages Over Conventional PCB Controllers:
Single centralized controller box and hence control and delay PCBs not required.
Control transformers also included within the controller box.
Software based controller takes care of various fault tripping and thereby avoids external relay logic for various tripping conditions.
3 digit segment displays simultaneously input, output voltages, input current and frequency. This completely avoids meters and selector switches. More importantly the interconnections of these components are also avoided saving labor costs and increasing reliability.
Electronic overload tripping feature included in the controller avoids extra hardware otherwise required.
Single contactor required for under voltage, over voltage and over load trips substantially reduced and simplified control wiring reduces the labor cost significantly.
TRIACS used for motor switching are optically isolated from control circuit to protect control PCB and wiring.
|
|
|
|
|
Intelliservo Voltage Controller |
Intelligent digital multi-function meter, controller for the Servo Voltage Stabilizer OEMs. Designed, Developed and Manufactured in India.
|
|
|
|
|
Iots Control Panel For Motorized High Voltage Bdv Insulation Oil Test Set |
iOTS - Intelligent OTS control panel for Motorized High Voltage BDV Insulation Oil Test Set
This product is designed with innovative software algorithms residing on latest technology PIC microcontroller chips. The design is conceived so as to reduce production overheads like wiring and testing when it is put on the Motorized High Voltage Oil Test Set.
Features
Advanced PIC Microcontroller based, indigenous design
Supports different capacities of 60 kV, 80 kV and 100 kV
Panel mounted ergonomic design with easy to operate keys
Full integrated drive for AC Synchronous Servo Motor
Bright 3 digit, 7 Segment LED Display
Indications for AUTO, MANUAL, DOOR, RISE and ZERO
Incorporates automatic tripping mechanism
Provision for safety interlocking for high voltage test chamber
Provision for both AUTO and MANUAL mode
Break down voltage protection at milliamp current
|
|
|
|
|
Series Oscilloscopes |
50 MHz
See more signal detail with 50,000 wfms/sec update rate
Make professional measurements, including math, FFT, analog bus, and protocol triggering/decode
Get more instrument integration with built-in 20 MHz wavegen and frequency response analysis
Quickly learn how to use; oscilloscopes have built-in help and training signals
|
|
|
|
|
Dc Power Supplies |
These DC supplies are the right choice for manual and automated testing applications that require essential capabilities coupled with solid performance and built-in measurement functions. Depend on precise voltage and current programming - with low ripple and noise - from our family of low-power supplies.
|
|
|
|
|
Digital Multimeters |
Keysight handheld multimeter and clamp meter products enable you to check more wide measurement ranges and delivers more value than any other in its class. U1230 Series handheld digital multimeters are the best HH-DMM for the conditions you work in. Whether it's dark, noisy or even dangerous
|
|
|
|
|
Academia |
This solution focuses on semiconductor fundamentals, circuit analysis and applications. The teaching material and lab sheets will allow the students to explore the functionalities and applications of diodes, transistors, and op-amps in a circuit.
|
|
|
|
|
Frequency Counter |
The Keysight 53200 Series of 350 MHz RF and universal frequency counter/timers serve all of your frequency and time interval measurement needs. Three available models offer resolution capabilities up to 12 digits/sec single-shot frequency resolution on a one second gate. Single-shot time interval measurements can be resolved down to 20 psec. All models offer new built-in analysis and graphing capabilities to maximize the insight and information you receive. Use the connectivity of your choice: LXI-C/Ethernet, USB, GPIB. Additionally, an optional battery is available to increase portability and maintain timebase accuracy.
|
|
|
|
|
Function Or Waveform Gen |
Keysight 33220A is a 20 MHz function / arbitrary waveform generator, and pulse generator in one instrument providing AM, FM, PM, FSK, and PWM modulation capabilities, sweep and burst modes, and a graphic display.
|
|
|
|
|
Lcr Meters |
E4980AL Precision LCR Meter 20 Hz to 300 kHz/500 kHz/1 MHz
• Frequency: 20 Hz to 300 kHz/500 kHz/1 MHz
• +/- 0.05 % basic accuracy
• 100 uV to 2 Vrms, 1 uA to 20 mA variable test signal
• DC bias 1.5/2 V
• Rdc measurements
|
|
|
|
|
Logic Analyzer |
16850 Series LA with 2.5 GHz Timing in Deep Memory
16850 Series Portable Logic Analyzers with 2.5 GHz Timing in Deep Memory. The industry's fastest timing capture with deep memory – for fast digital system debug.
|
|
|
|
|
Network Analyzer |
ENA Series Network Analyzer
• The low cost network analyzer of the ENA Series
• Optimized for testing simple passive components such as antennas, cables, filters and PCBs
• The best balance between price and performance
|
|
|
|
|
Oscilloscopes |
6000X Series
1 GHz – 6 GHz bandwidth upgradable models are only 6" (15 cm) deep, 15 lbs (6.8 kg)
12.1-inch capacitive multi-touch screen with InfiniiScan Zone touch trigger
Industry leading noise floor and waveform update rate
Standard histogram and color grade, plus enhanced color FFT
|
|
|
|
|
Power Meter And Power Sensors |
EPM and EPM-P Series
The EPM power meters provide CW and average power measurements. The EPM-P power meters provide peak, average, peak-to-average ratio and time-gated power measurements.
|
|
|
|
|
Signal Generators |
X-Series Analog upto 40GHz or Vector upto 6GHz
Analog: Up to 40 GHz
Vector: Up to 6 GHz
Industry-leading performance
Signal Studio software for application-specific signal creation
Scalable performance
|
|
|
|
|
Source Measure Units |
Source Measure Units
A Source/Measure Unit, or SMU, is a source and measurement resource for test applications requiring high accuracy, high resolution and measurement flexibility. SMUs are sometimes also referred to as source monitor units. An SMU can precisely force voltage or current and simultaneously measure voltage and/or current.
Keysight Technologies is the leader in the Source/Measure and Source/Monitor Unit (SMU) market. Keysight provides a wide range of SMU products, which are categorized into four areas: Precision, Application Specific, General-Purpose, and Basic.
|
|
|
|
|
Spectrum Analyzers |
Handheld spectrum Or Network Analyzers-upto 26GHz
Up to 26.5 GHz
Handheld spectrum analyzers
Variety of performance levels
Compliant with MIL-PRF-28800F Class 2
Up to 5 MHz analysis bandwidth
15 Models to chose from
|
|
|
|
|
Fiber Inspection Cleaning And Test Kit |
The patented Viavi Solutions® CleanBlast fiber end-face cleaning system provides a fast, effective, and cost-efficient solution for removing dirt and debris from connectors in most common applications. CleanBlast is a non-contact system that uses a highly filtered stream of pressurized gas with a vacuum circuit to create a high-flow-rate jet across the fiber’s surface. A 30 µl cleaning solvent is injected into the airflow, and the contamination from the end face along with the solvent are then removed through the retrieval circuit. The precise, highly efficient non-contact air-solventair stream blasts and removes contamination with nearly 100% effectiveness.
|
|
|
|
|
Handheld Optical Test Instruments |
|
|
|
|
|
Osa |
OSA-110M/110H/110R Compact Full-Band OSAs
|
|
|
|
|
Otdr |
T-BERD/MTS-6000/-6000A/-8000
|
|
|
|
|
Transport Testing Instruments |
|
|
|
|
|
Industrial Chairs |
Product Information
This low back industrial chair from werksitz is built for rugged and tough work conditions. This is our affordable introductory and rugged chair which promotes a healthy, ergonomic sitting posture even under the toughest work conditions The rugged yet sophisticated features of this special production chair enable comfortable posture while seated User-friendly operating elements make it easy for users to individually adapt their chairs to the desired seat positions Other features include viscoelastic PUR integral foam chair seat and backrest, tilt-able seat with thermos-sensitive properties, which enables the foam to adapt perfectly to the users body, for optimum comfort while sitting in any work area and safety gas spring height adjustment system.
Technical Information
Viscoelastic PUR integral Foam chair seat and backrest
Seat Dimensions (Width x Depth) – 440mm x 420mm
Seat Tilt - -14o to +5o • Backrest Dimensions (Width x Depth) – 420mm x 300mm
Backrest Tilt - -34o to +30o
Height adjustment – 470mm to 650mm
Hard Plastic Five-star base (Ø 655mm), with dual castors (Ø 65mm)
Manufactured according to DIN-68877 Occupational Health and Safety standards
2 years’ warranty
|
|
|
|
|
Esd Work Stations |
Table with Hydraulics and integrated instruments
|
|
|
|
|

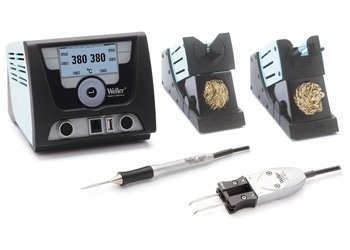

Soldering Stations |
WX 2021
Power unit WX 2, 200 W, soldering iron WXMP, 55 W, 12 V, with Active Tip Technology, soldering tip RT 3, safety rest WDH 51, micro tweezers WXMT, 2 x 40 W, 12 V, with Active Tip Technology, standard tip RTW 2 and safety rest WDH 60 with dry clean.
|
|
|
|
|
Rework Stations |
WR 3000M
Desoldering station with multi-digital 420 W, 230 V with soldering iron DSX 80 and internal pump
|
|
|
|
|
Bga Rework Stations |
WQB 4000SOPS
2300 W / 230 V
BGA / SMT Rework system
For components placing with camera support placing system
BGA/SMT Rework system 2300 W / 230 V
|
|
|
|
|

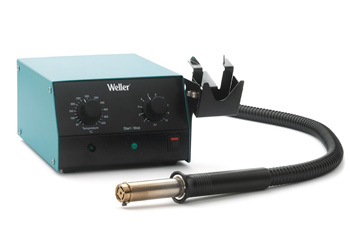

Hot Air Stations |
WHA 900
Hot Air Station 650 W / 230 V with built-in Turbine - For easy repair applications and heating processes as e.g. shrinking - Brushless turbine for ideal hot air flow - Hot air temperature is electronically controlled.
|
|
|
|
|
Fume Extraction Systems |
Zero Smog 4V
Unit purifies air at up to 4 workplaces Constant Flow Control (CFC) guarantees automatical air flow regulation for each working place independent of the connected workplaces Electronic filter control with optical and acoustical filter alarm Efficiency test via USB port The fume extraction unit Zero Smog 4V Kit 1 Funnel is easy to install and operate. It is designed for use as a small central system. The kit is supplied complete with 1.pcs flexible hose, flexarm, funnel nozzle, valve and bracket, ready for installation at the workplace.
|
|
|
|
|
Hand Tools |
Forming Tool
The angled head provides for precise cuts at different working angles
|
|
|
|
|
Oscilloquartzs |
Our OSA 5410 Series is a family of compact and costeffective synchronization distribution and assurance devices that brings the power of Syncjack™ to any access network. The OSA 5410 Series offers unique flexibility by supporting delivery and assurance of synchronization utilizing Synchronous Ethernet and IEEE 1588v2 Precision Time Protocol (PTP). Thanks to its builtin Global Navigation Satellite System (GNSS) receiver and Grandmaster (GM) Clock capability, it can be used as a timing source for frequency, phase and time-ofday delivery, as well as a measurement reference for Syncjack™ tools. Our OSA 5410 Series supports Assisted Partial Timing Support (APTS) for the most stringent timing applications. An internal high-quality oven-controlled crystal oscillator (OCXO) or a rubidium oscillator option enable extended holdover capabilities. Applications The family members of our OSA 5410 Series can be utilized in a variety of network synchronization applications, including IEEE 1588v2 Access Grandmaster, Boundary and Slave Clock, APTS Clock, GNSS receiver and Primary Reference Time Clock (PRTC), synchronization signal conversion and sync probe applications. Our OSA 5410 Series is designed to deliver the accurate phase and frequency required by next-generation network technologies such as LTE-A, LTE-TDD and enterprise networks. Timing can be easily distributed and assured throughout a network over existing packet infrastructure. Timing performance is continuously monitored while in service, and alarms are triggered if needed. A valuable new approach for timing distribution is made available to mobile network operators: the ability to effi ciently distribute timing from the network edge and assure that base station clocks precisely track their master. Syncjack™ Monitoring and Assurance Tools Our OSA 5410 Series supports all Syncjack™ functions and tools. Syncjack™ is a comprehensive technology for timing distribution, monitoring and timing service assurance. Syncjack™ Clock Accuracy measures the frequency and phase accuracy of physical clock signals relative to a synchronization reference. Syncjack™ continuously performs Clock Analysis, including frequency and phase accuracy of the PTP packet domain. Syncjack™ also performs PTP network analysis, as well as monitoring and testing the PTP communication path. Our OSA 5410 Series uses Syncjack™ tools to measure frequency and phase accuracy of a physical clock source or a remote slave clock based on TE, TIE and MTIE. It performs PTP clock analysis by calculating TE, TIE and MTIE from timestamps embedded in PTP messages. The network probe function complements the clock measurement through network analysis of the PTP message transport. All functions are supported by our FSP Sync Manager, an advanced management platform for timing distribution and assurance.
|
|
|
|
|
Illsintech Splicing Machine |
Features
Core Alignment by IPAS Technology
Resistance to the Environment with Shock, Rain and Dust
Powerful Battery with Large Capacity
Dual Sleeve Heater
Automatic Execution of Discharge Calibration
Smallest, Lightest & Fastest
4.3 Color LCD Monitor with Touch Panel
Bidirectional Operation System
Attached Sleeve Loader
Attached Night Light
ROHS Compliant
Benefits and Features
IPAS Technology basis Core Alignment
Swift-S3 is the core alignment splicer based on IPAS (Image Pattern Analysis Alignment System) Technology
Smallest, Lightest and Fastest
This splicer is the smallest, lightest and fastest among all the existing core alignment splicers Dimension : 138(W) 160(L) 135(H) Weight : 2.3kg Splicing Time : 9 seconds, Tube heat : 26 seconds Battery and shock proof rubbers are included
Resistance to the Environment with Dust, Shock and Rain
The splicer with high reliability has stable performance even in a harsh environment
Powerful Lithium Polymer Battery with Large Capacity
Performs 250 cycles of fusion splicing and sleeve heating with the standard battery
Automatic Execution of Discharge Calibration
Detects the surrounding environment of temperature, humidity, air pressure and others by itself and measures discharge calibration rate automatically
|
|
|
|
|
Information Kiosk |
IK PC Series Kiosks are free standing, slim and most important with elegant design, Simple, Easy-going, eyeball attracting makes it's the best choice for overall indoor kiosk applications. And one of our hottest sales, the sleek, streamlined design and durable construction make this series of kiosks the ideal choice of most self-service kiosk application.
|
|
|
|
|
Digital Podium |
Digital podium is an advance system, which can interlock & control the equipments in the classroom / auditorium. It is the heart of modern presentation which can capture your students /audience attention in imaginative ways.
|
|
|
|
|
|
|
|
|
