PANTHER NM

Specification :

Cutting Capacity : 100 mm of mild steel with NMC-100S torch.
Straight Cut : In 1.8 mtr length or multiples by adding rails.
Circle Cutting : 150 to 1200 mm diameter.
Bevel Cuttimg : Up to 45 degrees.
Cutting Speed : 100 t0 1000 mm/min
Power Supply : 220/240 V, 1ph, 50 Hz.
Weight : 10.8 kg. approx.
Overall Dimension : 420 mm L x 280 mm W x 450mm H (approx).
Horizontal Adjustment of Torch : 80 mm.
Vertical Adjustment of Torch : 60 mm.

Features :

No backfire during cutting because of "Nozzle-Mix" technology.
Aluminium die cast body with ventilation holes reduces overheating of motor and other electrical parts.
Unbreakable, smooth and precise horizontal and vertical adjustment of torch.
Bevel setting with locking facility means bevel accuracy during long cutting.
Remote mounted gas control knobs make flame adjustment during cutting operation easy.
Single lever ON-OFF control for cutting Oxygen makes the stopping and restarting of cutting very easy and saves Oxygen.
Stainless steel heat reflectors (2 nos. with air gap), protect the motor from heat during cutting thus adding to the life of the machine.
Travels on standard 1.8 mtr extruded Aluminium rail.

KING JOIN – AGWT / 3W

Features :

This Is A Well Balanced Blowpipe For Versatile Applications Using Oxygen & Acetylene / LPG Gases.
Best Suitable For Gas Welding / Brazing From 0.5 Mm To 3mm Thick Plates. Torch Is Designed With Safety Protections To Give Dependable Performance Against Backfire.
5 Tips (LPG) Are Supplied As A Standard Scope Along With Torch For Gas Welding / Brazing Applications.
Torch Can Be Used With Both Oxy-LPG As Well As Oxy-acetylene Gases.

KING REGULATOR SERIES

Features :

Two Stage Gas Regulators

Stainless steel diaphragm in first stage to absorb shock of inlet pressure up to 230 bar. Flexible rubber diaphragm in second stage for fine gas control
Forged brass bonnet in first stage and die cast special alloy bonnet in second stage for higher strength.
Plastic moulded valve and stainless steel spindle in the valve assembly capsule in both stages for leak-proof performance.
Distinctive colour for bonnet, pressure gauge and pressure adjusting knobs.
Second stage plenum chamber volume is six times than first stage ensuring very stable flow characteristics.
Double protection through separate safety valves in first and second stage.
Triple filter: one in inlet and two wire mesh in the valve assembly protect the sensitive internal parts from any dust particles. Weight 2.40 Kg.

Single Stage Gas Regulators


Unbreakable moulded pressure adjusting knob.
Unique profile rubber diaphragm.
Stainless steel machined & ground valve spindle with hard plastic moulded valve at the heart of the regulator.
Sintered filter in the inlet, wire mesh filter in alve assembly.
Side inlet for horizontal cylinder valve
Self-adjusting safety valve.
Weight 1.10 Kg approx.

KING PROTECT – FLASHBACK ARRESTOR FOR TORCH
Typical Applications :

Applications

King Protect – T/O – Flashback Arrestor For Oxygen Gas – Torch Mounted
King Protect –T/A – Flashback arrestor for fuel gas – Torch Mounted
Flashback arrestors for reliable protection against dangerous reverse gas flows and flashbacks.
Every flashback arrestor is 100% tested.

APPROVALS
ISO 9001 EN 730-1 ISO 5175

Features :

The flashback arrestors are installed at the inlet of the blowpipe.
A large surface area flame arrestor constructed of stainless steel extinguishes any dangerous flash- backs entering the device from any direction.
A spring loaded non-return valve prevents slow or sudden reverse gas flow which could form explosive mixtures in the gas supply.

Holder HC-600

Features :

This electrode holder is Type 'B', semi insulated, heavy duty for use in project sites and workshops. Spatter protection guard of this holder is moulded from FR grade plastic. Its handle and lever is made of 'Paper Hylum' which ensures good heat resistant quality and ensures minimum welder's fatigue due to its light weight. This holder conform to IS: 2641.

KING WELDING CABLE

Features :

Made in accordance with IS 9857/90
Conductors tested in accordance with IS 8130/84
Jacketing tested in accordance with IS 6380/84
Excellent Heat, Flame and Wear resistant
Excellent flexibility
Highly recommended for use in Automatic Welding Machines

Earth Clamp-600

Features :

Earth clamp made of zinc coated steel and copper plated jaws provide very good contact with the work piece. Jaws can be opened up to 60mm. and most suitable for heavy duty applications.

Safety Shoe – BISON and RHINO

General Description :

Safety Shoe – BISON :

IS-15298 Compliant Safety Shoes For General Engineering,
Chemical, Cement, Service & Construction Industries
Genuine Full Grain Leather Barton Print
Steel Toe As Per Is 15298 & En 20345 Standard
Imported Red Mesh Breatheble lining
Synthetic Pu Crespy Black Collar With Extra Cushioning
Moulded Full Socks
light Weight For Extra Comfort
Direct Injected light Weight Pu Sole
Antistatic & Slip Resistant
Meet Standard Is 15298 ( Part Ii)
Available In Sizes Uk – 5 To 11
Value For Money

King Glove – GP

Features :

Superior Rigger Gloves designed for material handling in tough environment
Strong 1.2 / 1.3 mm chrome leather for high abrasion resistance
Double leather on palm for enhanced protection
Cotton backing for breathability and comfort
Rubberised cuff for enhanced wrist protection
Vein patch and knuckle protector for increased wearer safety
Fleece lined palms for additional comfort
Elasticated back for secure fit
Approved to EN 388 Cat II

Description / Specification of Welding Elecrodes

We are involved in offering a wide range of Welding Elecrodes to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Welding Elecrodes. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Albraze A

AWS Code : FB1-A

Typical Applications :

Brazing of Al and its alloys

Features :

Aluminium brazing flux
Contains fluorides and chlorides
Excellent cleaning action
Flux residue is hygroscopic, hence easily soluble in water

AUTOMIG FC 71T-1

AWS Code :E71T-1C/M H8

Typical Applications :

Welding of structural and carbon manganese steels with specified tensile strength up to 510 MPa. Butt and fillet welding of hulls and storage tanks, Structural steel, Farm machinery, Construction equipment, Bridges, Shipbuilding, Towers, Cranes, Chemical plant machinery, Rolling stocks and general carbon steel fabrication.

Characteristics :

All position rutile type gas shielded flux cored wire for high quality single and multiple pass welding of certain low alloy and carbon steel. This wire has very low fume, stable arc, least spatters and easy slag removal. Weld bead is characterized by its smooth and excellent appearance.

AUTOMIG MC 70C-6C

AWS Code :E70C-6CH4

Typical Applications :

Welding of Carbon, C-Mn and similar types including fine grained steels
Ship building, Boilers
Suitable for joining SA 36/36M (P.No.1), SA 285/285M Gr.A/B/C (P.No.1)
Pressure Vessels, Pipe steels

Features :

Metal cored wire suitable with CO2 shielding gas
Good weldability, minimal or no slag
Excellent bead appearance
Exceptional mechanical properties at low temperatures
Most widely used general purpose filler alloy
Si addition improves fluidity
Radiographic weld quality

AUTOMELT B20 PLUS
Typical Applications :

Fabrication of Reactors, steam generators
Fabrication of Pressure Vessel and Boiler
Long Seam and Cir Seam Welding of Pipes
Heavy Equipment Fabrication

General Description :

Agglomerated Flux
Fluoride-Basic Type Flux
High Basic Flux having Basicity Index of 3.1
Mildly Active Flux with moderate Si and Mn pick-up with Low Mn Wires and Mn burnout with high Mn wires
Multi-pass Butt and Fillet Welding
For Carbon & Low Alloy Steels
Suitable for Narrow Gap Welding
Suitable for Single & Multi Wire Tandem System
Suitable for Welding Speeds of 0.40 – 0.60 m/min
Grain Size – 0.25-1.60mm
Type of Current – DCEP / AC
Wall Neutrality Number with EM12K is 23

KING CUT PRO

Features :

Bright Touch Screen Interface
With a 10.4 in. (264 mm) industrial-grade touch screen, the Phantom provides
an extremely user-friendly machine interface. The wide viewing angle and high
resolution graphics generate a bright display even in the harshest shop floor
environment, allowing operators to easily and effectively move through the menus and
Touch Screen Interactive Display
Eliminate dry runs and confirm the part program before cutting them with the Phantom
full color graphic display. View the cut path in real-time and monitor cut progress –
especially important with underwater plasma. Use the zoom tools to verify part spacing
and eliminate wasted or unusable product.
Expandable Shape Library
True Multi-tasking Environment
Increase operator productivity by performing many different tasks within the Windows®
XP Embedded environment. Load a new part program, create or edit a part program,
choose a new part program from the shape library, create or edit a program nest, check
production messeges, fill out productivity sheets or monitor consumables life – all at the
same time and all while the machine is cutting!
Fast DXF File Conversion
Go To (Job Interrupt)
Interrupt the current cutting routine to cut a new part, move ahead multiple pierce points,
recover from cut loss, recover from power loss, change torch consumables, interrupt a
long nest, jump to the end of a part or nest or reverse the cutting path – all quickly done
at the touch of a button without losing machine position and without scrapping valuable
material.
Quick Plate Alignment
Monitor and Track Consumables
guidethe cutting machine.
Commonly used standard shapes can be designed right at the control. Touch the screen
to input the required dimensions and follow a simple logical prompting process. Shapes
are graphically displayed with dimension lines to assist the numeric entry process. A
dynamic display draws the shape, which reduces guesswork. Now even complex shapes
can be made consistently and accurately.
The Phantom accepts direct downloads of CAD/CAM DXF files, which reduces the
expense of third-party post processing software. Furthermore, the Phantom can
automatically assign Lead In/Lead Out positions – or the operator can make these
assignments manually.
Quickly compensate for a plate that is not aligned properly on the machine. The
Phantom rotates the part program for the proper placement on the true plate position.
With a few simple screen prompts, the Phantom rotates the part program for the proper
alignment with the plate. Virtually drop the plate and cut. This saves material and
wasted time moving the plate into the correct cutting position.
The Phantom tracks torch consumable usage and can alert the operator when a
consumable change is required. This feature will maximize consumable life and torch
life. In addition, cut quality and part accuracy can be held to the highest levels.

Description / Specification of Fume Extractor

We are involved in offering a wide range of Fume Extractor to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Fume Extractor. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

WELDING ROTATORS
Typical Applications :

The range of Rotators offered by ADOR are ideally recommended for manipulating/rotating/ positioning of round or cylindrical jobs to facilitate SAW and MIG/MAG welding processes of long and circumferential seams of tanks, barrels/shells, pressure vessels, process equipments, tubular components etc
Three types (i.e. WR/RSCLA/SAR) of rotators are available for different applications and requirement of rotating and handling of jobs

Features :

All Rotators are designed for longer service life and trouble free Operation
Typically Rotator set consists of one drive unit and one idler unit
Surface speed sleeplessly variable from 150 to 1500 mm/min
Speed regulation through VFD drive system

PLASMACUT 25
Typical Applications :

Recommended for air plasma cutting applications of all electrically conducting sheet metal up to 25 mm thick in the industries like sheet metal fabrication, Bus and coach body building workshops, Railway and transport workshops, power stations, chemical & fertiliser plants, construction & maintenance workshops, food processing and pharmaceutical equipments using SS, scrap cutting & demolition, ship breaking etc
Ideally suitable for metal cutting applications where Oxy Acytelene cutting process is not feasible or Oxy/Acetylene gases are not available, good clean cuts with higher cutting productivity are desired

Features :

Air plasma cutting outfit with Rugged, Robust design and well established diode based power source
User friendly controls on the front panel, requires minimum training to the operator
Provided with special "Safety -Interlock" for operator protection
Light weight and flexible torch with 8 mtr long hose assembly

MAESTRO 800 (F) / 1000 (F) / 1200 (F)

Features :

Twin Wire Attachment : Twin Wire Attachment is available for the Tractor as well as boom mounted welding heads. The arrangement consists of one set of each of wire drive roll and nozzle for 2 and 2.5 mm size wire to feed two wires in tandem and increase the deposition rate substantially. These arrangements is ideal for applications like cladding of hard surfaces as well as for filing weld metal in extra large size preparation grooves. Twin 2.5 mm wires can deliver up to 20% higher deposition rates than a single 5 mm wire at the same welding current and arc voltage parameters.
Fillet Welding Attachment : To enhance the usability of SAW Outfits, a Fillet Welding attachment can be provided to increase shop-floor productivity.
Spot Light Projector : This facility is especially useful for welding operations inside cylindrical jobs where a light source is required to examine the seam
Choice of Boom mounted or Tractor mounted Welding head models offered with Diode or Thyristorized Power Source
Boom mounted head comes with a choice of manual, semi – motorized and fully motorized cross slides
Programmed sequential operations of Power Source, Wire feed and carriage through built- in solid state circuitry
Twin Wire Attachment is optionally available – which helps to achieve 20% to 30% increase in Productivity

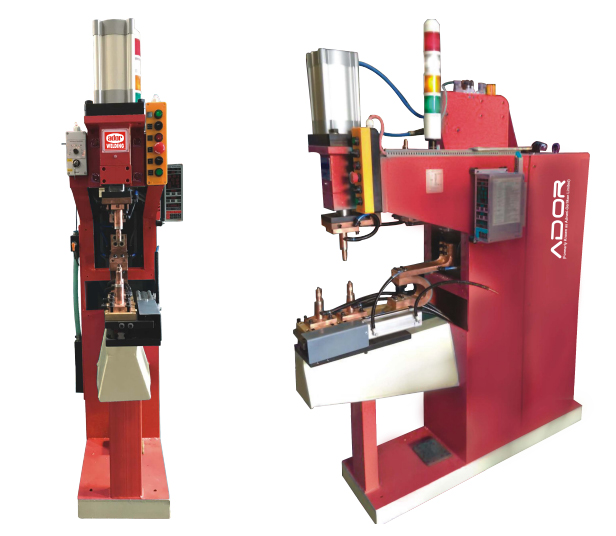

Stationary Projection & Spot Welding Machines & SPM's.

Features :

Electro-valve and gas cylinder are connected directly, thus increasing speed of responding and spot welding and reducing air flow cost.
Perfect pressurization speed adjustment -descending speed of the machine head pressurization can be adjusted as per requirement which softens impact and lowers noise when the workpiece is pressurized.
High strength steel performance - shoc resistant and firm.
High power SCR element is adjusted for the main loop - ensures stability and reliability.
Straight type pressing structure and high welding speed.

General Description :

Stationary Projection & Spot Welders having High Strength Robust Sturdy Pedestal type frame for high speed spot welding operation.
SPM’s Designed as per component to achieve high production rates & cycle time. Performance proved PLC, HMI, Servo Motors offered as per ratings.

Description / Specification of Resistance Welding Controller

We are involved in offering a wide range of Resistance Welding Controller to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Resistance Welding Controller. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Ador Seam Welders

General Description :

Seam Welders have excellent efficiency and hassle free functionality, fitted with high quality transformer, cooling system and high quality weld assembly which are corrosion and abrasion resistant.
SPM’s are designed as per components to  achieve high production rates & cycle time Performance proved PLC, HMI, Servo Motors offered as per ratings.
