Product Details:

Application Power
Capacitor Type Aluminium Electrolytic Capacitor, Super Capacitor
Voltage Rating 230V to 900V

We are specialized firm manufacturing and supplying wide range of Capacitors. It is a general purpose capacitors which is best suited for individual compensation of smaller loads. Featuring insulation levels of 3kV rms/ 15 kV peak, the offered capacitors are available in single or three phase design with the dry type impregnation at the best price in the industry.

Applications of Capacitors :

Especially suitable for the individual compensation of motors and other small loads.
Suitable the construction of small size automatic capacitor banks.

Advantage of Cylindrical Capacitors :

Capacitors are dry type and consequently ecological safe: there are no possibilities of impregnating liquid leakage.
Losses are specially reduced: lower than 0.05% (< 0.5 kVAR).
Capacitors are a self-healing type: in case of a dielectric breakdown, due for example, to a transient over- voltage, the self-healing mechanism vaporizes the metallic electrode around the breakdown point, allowing the capacitor to go on working normally.
Their weight and volume are very low, allowing them to be installed every-where without problem.

Product Details:

Application Power
Capacitor Type Super Capacitor
Power 5 Kvar to 800kvar
Capacitance as per kvar
Voltage Rating 400 V to 800Volt
Phase Three Phase, Single Phase
Terminals Three, Six

MPP Type ,Dry Type Capacitor

Permissible over current 2 time of rated current.
Permissible over voltage 1.3 x Rated Voltage
loses (da electric)<0.2 W/ Kvar,

Product Details:

Voltage Rating 230 TO 925 VOLT
Dielectric Material Polypropylene
Application AC Filters

Manufacturer & Exporter of Power Capacitor. Our product range also comprises of Normal Duty , Heavy Duty Capacitor, Extra Heavy Duty Capacitor & Reinforced Capacitor.


Capacitors are dry type and consequently ecological safe: there are no possibilities of impregnating liquid leakage.
Losses are specially reduced: lower than 0.05% (< 0.5 kVAR).
Capacitors are a self-healing type: in case of a dielectric breakdown, due for example, to a transient over- voltage, the self-healing mechanism vaporizes the metallic electrode around the breakdown point, allowing the capacitor to go on working normally.
Their weight and volume are very low, allowing them to be installed every-where without problem.

APPLICATION:-To improve Power Factor ,To improve Voltage Profile.

MOQ 5 kvar

Additional Information:

Item Code: POLB
Production Capacity: 5Kvar to 50Kvar units
Delivery Time: 1 week

Product Details:

Capacitance 41.1mfd to 410mfd
Voltage Rating 415-800v
Frequency 50Hz
Power 5-50Kvar

Film + Foil + Oil Design

Features
Manufactured by Using Imported hazy BOPP film as main Dielectric.
Non-PCB, Non Toxic PXE Oil Used as Impregnant.
High Purity (> 99%) Aluminium Foil Used as Electrode for High Current inrush.
Basic elements are vacuum impregnated with NPCB PXE oil.
Extended foil Technology.
Internal Fuse to Each element is possible for better safety.
Capacitors can withstand the dynamic fluctuations of load.
Withstands Higher Over voltage i.e. up to 20 % of Rated Voltage.
Withstands Higher Over loads i.e. 75 - 100 % of Rated Current.
Low energy consumption i.e. Watt Loss.
Guaranteed Output for a longer period i.e. 10 – 15 yrs.

MOQ 10 Kvar

Product Details:

Terminals Three, Six

Manufacturer & Exporter of Power Capacitor. Our product range also comprises of Normal Duty , Heavy Duty Capacitor, Extra Heavy Duty Capacitor & Reinforced Capacitor.


Capacitors are dry type and consequently ecological safe: there are no possibilities of impregnating liquid leakage.
Losses are specially reduced: lower than 0.05% (< 0.5 kVAR).
Capacitors are a self-healing type: in case of a dielectric breakdown, due for example, to a transient over- voltage, the self-healing mechanism vaporizes the metallic electrode around the breakdown point, allowing the capacitor to go on working normally.
Their weight and volume are very low, allowing them to be installed every-where without problem.

APPLICATION:-To improve Power Factor ,To improve Voltage Profile,To reduce Line losses.

MOQ 10 kvar

Product Details:

Minimum Order Quantity 5 kvar
Application HT, Power
Capacitor Type Super Capacitor

polypropylene film capacitor uses Fuseac technology, which provides an internal fuse that electrically disconnects when the capacitor's hot spot reaches a defined temperature, without deforming the case. Specifically designed for ac applications, the series supports voltages of 300 Vac, 600 Vac and 900 Vac. The capacitance range is from 10 µF to 250 µF.

The capacitor is housed in an aluminum cylindrical can with a plastic header. It also features radial terminals and a mounting bolt to meet power-management-system requirements. Operating temperatures span from -40°C to +85°C.

Product Details:

Capacitance 12kvar -400kvar
Voltage Rating 1.05kv -12kv

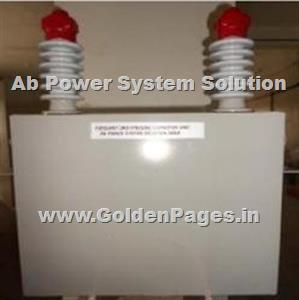

We offer HT Shunt Capacitors For Power Factor Improvement as per IS - 13925 Part 1

Ratings:

2.2, 3.3/3.6, 6.6/7.2 KV Single Phase & Three Phase
11/12.6 KV Three Phase or any other rating above 1 KV upto 11 KV
Also Capacitors upto 150 KVAR, 3.3 & 6.6 KV available in single unit onwards in Banks.

MOQ 5 Kvar

Product Details:

Capacitor Type Super Capacitor
Application HT

We offer HT Shunt Capacitors For Power Factor Improvement as per IS - 13925 Part 1

Ratings:

2.2, 3.3/3.6, 6.6/7.2 KV Single Phase & Three Phase

11/12.6 KV Three Phase or any other rating above 1 KV upto 11 KV

Application:-

1) Substation project to improve Power Factor
2) To mitigate Harmonic Distortion
3) Single Star /Double Star Configuration

4)To reduce Line Losses

MOQ5 kvar

Product Details:

Voltage Rating 1kv to 33kv
Dielectric Material Polypropylene

AC Capacitors are available in sizes up to 1,200 kvar per unit (at 50 Hz), and are characterized by negligible losses and high reliability. They consist of thin dielectric polypropylene film wound together with electrodes of aluminum foils. Fusing technologies available for these capacitors include internally fused, externally fused and fuseless executions.
A bio-degradable hydrocarbon compound with excellent electrical properties is used as the impregnation fluid. The container is made of surface-treated high-quality steel - the bushings and terminals are of highest quality and reliability.

Applications

Shunt reactive power compensation banks
Harmonic filters
Series capacitor solutions
SVC applications
HVDC applications

MOQ 100 kvar

Product Details:

Phase Single Phase
Brand ABPOWER
Dielectric Material Polypropylene

We offer HT Shunt Capacitors For Power Factor Improvement as per IS - 13925 Part 1

Ratings:

2.2, 3.3/3.6, 6.6/7.2 KV Single Phase & Three Phase

11/12.6 KV Three Phase or any other rating above 1 KV upto 11 KV

Application:-

1) Substation project to improve Power Factor
2) To mitigate Harmonic Distortion
3) Single Star /Double Star Configuration

4)To reduce Line Losses

MOQ 50 kvar

Product Details:

Frequency 50Hz

AC Capacitors are available in sizes up to 1,200 kvar per unit (at 50 Hz), and are characterized by negligible losses and high reliability. They consist of thin dielectric polypropylene film wound together with electrodes of aluminum foils. Fusing technologies available for these capacitors include internally fused, externally fused and fuseless executions.
A bio-degradable hydrocarbon compound with excellent electrical properties is used as the impregnation fluid. The container is made of surface-treated high-quality steel - the bushings and terminals are of highest quality and reliability.

Applications

Shunt reactive power compensation banks
Harmonic filters
Series capacitor solutions
SVC applications
HVDC applications

MOQ 100 Kvar

Product Details:

Dielectric Material Polypropylene

In tune with current market trends, we are engaged in manufacturing and supplying ultra efficient High Tension Capacitor. Designed and tested at our well equipped laboratories, these high tension capacitors are best in the segment to efficiently reduce substation and line feeder voltage loss. Further, the quality approved capacitor can be availed form us at an economical price range.

Features:

Excellent finishing
Highly reliable
Perfect strength

MOQ kvar

Product Details:

Dielectric Material Polypropylene

AC Capacitors are available in sizes up to 1,200 kvar per unit (at 50 Hz), and are characterized by negligible losses and high reliability. They consist of thin dielectric polypropylene film wound together with electrodes of aluminum foils. Fusing technologies available for these capacitors include internally fused, externally fused and fuseless executions.
A bio-degradable hydrocarbon compound with excellent electrical properties is used as the impregnation fluid. The container is made of surface-treated high-quality steel - the bushings and terminals are of highest quality and reliability.

Applications

Shunt reactive power compensation banks
Harmonic filters
Series capacitor solutions
SVC applications
HVDC applications

MOQ kvar

Product Details:

Phase Three Phase, Single Phase
Brand ABLifasa

AC Capacitors are available in sizes up to 1,200 kvar per unit (at 50 Hz), and are characterized by negligible losses and high reliability. They consist of thin dielectric polypropylene film wound together with electrodes of aluminum foils. Fusing technologies available for these capacitors include internally fused, externally fused and fuseless executions.
A bio-degradable hydrocarbon compound with excellent electrical properties is used as the impregnation fluid. The container is made of surface-treated high-quality steel - the bushings and terminals are of highest quality and reliability.

Applications

Shunt reactive power compensation banks
Harmonic filters
Series capacitor solutions
SVC applications
HVDC applications

MOQ 100 kvar

Product Details:

Capacitance 41.1mfd to 410mfd
Voltage Rating 415-800v
Phase Three Phase, Single Phase
Terminals Three

AC Capacitors are available in sizes up to 1,200 kvar per unit (at 50 Hz), and are characterized by negligible losses and high reliability. They consist of thin dielectric polypropylene film wound together with electrodes of aluminum foils. Fusing technologies available for these capacitors include internally fused, externally fused and fuseless executions.
A bio-degradable hydrocarbon compound with excellent electrical properties is used as the impregnation fluid. The container is made of surface-treated high-quality steel - the bushings and terminals are of highest quality and reliability.

Applications

Shunt reactive power compensation banks
Harmonic filters
Series capacitor solutions
SVC applications
HVDC applications

MOQ 300 kvar

Product Details:

Voltage Rating 2.2 - 33

AC Capacitors are available in sizes up to 1,200 kvar per unit (at 50 Hz), and are characterized by negligible losses and high reliability. They consist of thin dielectric polypropylene film wound together with electrodes of aluminum foils. Fusing technologies available for these capacitors include internally fused, externally fused and fuseless executions.
A bio-degradable hydrocarbon compound with excellent electrical properties is used as the impregnation fluid. The container is made of surface-treated high-quality steel - the bushings and terminals are of highest quality and reliability.

Applications

Shunt reactive power compensation banks
Harmonic filters
Series capacitor solutions
SVC applications
HVDC applications

MOQ 3 kvar

Product Details:

Capacitance as per KVAR and Voltage
Voltage Rating as per customer requirement
Dielectric Material Polypropylene
Capacitor Size All

Specification:

Size: all
Phase: single
Power rating: upto 1200 kvar
Voltage rating: as per customer
Brand: ab power

Applications

Shunt reactive power compensation banks
Harmonic filters
Series capacitor solutions
SVC applications
HVDC applications

Product Details:

Voltage Rating 3.3,6.6,7.2,11,33KV
Dielectric Material Polypropylene
Application POWER FACTOR IMPROVEMENT

We offer HT Shunt Capacitors For Power Factor Improvement as per IS - 13925 Part 1

Ratings:

2.2, 3.3/3.6, 6.6/7.2 KV Single Phase & Three Phase

11/12.6 KV Three Phase or any other rating above 1 KV upto 11 KV

Application:-

1) Substation project to improve Power Factor
2) To mitigate Harmonic Distortion
3) Single Star /Double Star Configuration

4)To reduce Line Losses

MOQ 200 Kvar

Product Details:

Minimum Order Quantity 1 Number
Voltage Type AC

Relay PFC Controller is designed to measure reactive power in the installation and give the proper orders and instructions for switching on/off the capacitors steps to maintain the preset power factor (cos).All controllers include a microprocessor which ensures an uniform use of the capacitors and contactors through a circular connexion sequence FIFO which considerate the connexion time of each capacitor step.The network analyzer MCA Plus is an instrument that measures, calculates and shows the main electrical parameters in industrial 3 phases networks (either well-balanced or non-well balanced).Reactive energy controllers MCE and MCX are designed for measuring the needs of reactive power in an installation and carry the necessary instructions for switching on/off the capacitors in order to maintain the right power factor cos.

Features:


Highly reliable
Longer service life
High performance

Product Details:

Minimum Order Quantity 1 Unit
Input Value 230 volt to 440 volt.
Type Automatic
Usage for power factor controlling
Digit Display Size Single Display

We have gained huge acceptance as major manufacturer and supplier of finest quality Automatic Power Factor Controllers. Thoughtfully designed to monitor the reactive power in connection and disconnection of capacitors in varied APFC panels, the offered device confirms the highest standards of safety. Further, this highly reliable device is developed from advanced microprocessor control technology to render the targeted power factor. Our prestigious clients can order this high performing device from us at a competitive price.

Features:

Easy programmable
Quick installation
Compact design
Longer service life

Product Details:

Power As per customer requirements
Voltage As per customer requirements
Brand AB Lifasa make & AB Power Make only
Usage Indoor Type

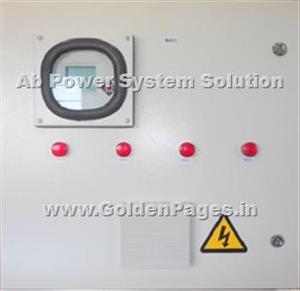

Power Factor Capacitor Bank are used for centralized compensation of power factor in low voltage installations. AB Lifasa also provides wide range of automatic capacitor banks with harmonic filters.

Voltage inhibitor to prevent automatic control actions with blown secondary PT (potential transformer) fuses
Voltage dead-band settings to prevent the tripping of capacitor banks on power factor and kVAR control when the voltage override thresholds are exceeded
Separate close and trip delay timers for each of the three automatic control functions
kW trip and automatic control inhibit thresholds to de-energize capacitor banks and prevent power factor and kVAR control actions during periods of low kW load
Capacitor discharge timing to prevent re-energization of capacitor banks too quickly
DNP3 communications for remote control and monitoring of capacitor bank control
Local independent control of the capacitor banks
Intuitive front-panel displays and programmable LEDs (light-emitting diodes) that indicate all pending control actions of the capacitor bank control scheme

MOQ 3 kvar

Product Details:

Size as per customer requirements
Material copper or aluminium , type of core CRGO,
Usage Harmonic filteration , Real time filteration & Compensation.

Detuned Harmonic Filter: Detuned filter are used, in supply networks having a high level of harmonic distortion, when the final objective is reactive power compensation at the fundamental frequency. Their purpose is to avoid the harmonic currents overload to the capacitors by diverting them to the mains. Protection filters are made by connecting reactors in series with capacitors, in such a way that the tuning frequency of the whole unit is set at a value between the fundamental frequency and the frequency of the lowest present harmonics, which is usually the 5th order harmonic. In this the filter has a high inductive impedance for all the harmonic frequencies.

MOQ 5 kvar

INA/INR reactors are designed to work in supply systems with a high level of harmonic distortion in such a way that they allow a safe and reliable service of the power factor detuned, so that, the whole unit has an inductive are specially designed to work in series with FMF capacitors correction equipments. Reactors are connected in series with power capacitors, forming a resonant circuit conveniently.Connection of a reactor in series with a power capacitor, makes the capacitor to work at a voltage higher than the supply voltage. Because of this, capacitors need to be connected to protection reactors and need to be designed to work at higher voltages than standard capacitors. The choice of the tuning point of the filters is to balance between the quantity of harmonics rejected by the filter and the voltage increase produced in the capacitor at the fundamental frequency.It is to be also kept in mind that reactive power supplied by the filter at rated frequency (50 or 60 Hz), is different to the one that the capacitor would supply without the reactor. Taking all the above into account, the reactor is normally chosen in such a way that its impedance is about 7% of the impedance of the capacitor that protects. This will give a tuning frequency, for example at 50 Hz, of 189 Hz. Other tuning frequencies are also available.

Product Details:

Size as per customer requirements
Usage Harmonic filtering, power factor correction, real filtering and compensations.

Third Harmonic Filter is basically passive filters with a parallel combination of inductance and condenser. The advantages of third harmonic filter are:


Reduction of the third overtone until a 90%.
Significant Reduction of other overtones.
Reduction current of neutral absorbed.
Reduction of losses in the installation.
Reduction of the interferences.
Improvement of the power factor.

Filter HBF-T has to be selected in agreement with the current of the breaker that protects the circuit. They are connected in the neutral conductor of the three-phase installation, and it is possible to be seen in scheme 1.

MOQ 25 kvar

In installations with High Pass Filter generation loads, the current through the neutral cable can be higher than the one in the phases, even in case of balanced loads. The most proper solution for these problems is to use a specific equipment for the 3rd harmonic filtering, consisting basically in a three-phase isolating transformer, delta-star connected, that filters the 3rd harmonic current, plus a passive filter which reduces the 5th harmonic.

Features:


High Pass Filter
Longer service life
High performance

Additional Information:

Minimum Order Quantity: 50 kvar

Product Details:

Size as per customer requrement
Material As per customer required
Usage to improve the power factor

Passive Harmonic Filter are used on distribution networks which have a high THD (Total harmonic distortion), when the final target is to compensate the power factor at the fundamental frequency.Its purpose is to avoid overloads due to harmonic currents in the capacitor, deflecting them to the network.Protection filters are made with serial reactors and capacitors. The tuned frequency of each unit is adjusted between the fundamental and the lower harmonic present in the net, which usually is the 5 th order.In this way, the filters present high inductive impedance for all the harmonic frequencies.

Features:


High performance
Excellent finishing
Highly reliable

MOQ 100 kvar

Product Details:

Voltage 380 V
Size as per customer requirements
Material Copprt wire and MS
Usage Installed in electrical circuits for improving the power factor for maintaining a steady flow of cur

We are among the leading names in the industry for supplying Detuned Harmonic Filter. The offered filter is exceptional in terms of quality as made in sync with the industrial standards and the prevalent market trends. It is installed in electrical circuits for improving the power factor for maintaining a steady flow of current through circuits. This component can be supplied in bulk owing to our spacious warehousing.

Features:
High performance
High Pass Filter
Longer service life

MOQ 5 kvar

Product Details:

Size as per customer requirement
Material CRGO , Aluminium & Copper winding

We have gathered huge recognizance by manufacturing and supplying highly demanded LT Detuned Harmonic Filters. Specially designed to suppress the levels of harmonic current, our offered LT detuned- filters are best suited for commercial buildings and hospitals. Further, our offered filters are equipped with highest quality components that lower the harmonic current distortion and increase the system efficiency at a competitive cost.

Features:

Space saving design
User friendly operation
Maintenance free life

MOQ 5 kvar

Product Details:

Size as per load of end user
Usage to improve real power factor , harmonics filterations , increase the Voltage at load centre

Harmonic Filters are used to Mitigate the Harmonic Levels.We are instrumental in wholesaling and supplying a wide range of Harmonic Filters. These filters are most suitable for those networks, which are highly prone to excessive harmonics. The Active Harmonic Filters offered by us guarantee highly effective compensation even in the presence of highly asymmetrical loads.

Features:

Excellent finishing
High performance
High Pass Filter

MOQ 50 kvar

Product Details: Terminals Three

This means that the plates of the Extra Heavy Duty Capacitor are of very small thickness that in the case of a transient, over voltage produces a dielectric breakdown, the current circulating through the breakdown point will vaporize the metallic plate around this breakdown point, allowing the capacitor to continue working normally. Self healing process is extremely fast & requires only a few microseconds. Internal fuse over pressure system( patented system): In certain markets, there are standards and specifications asking for an individual protection for each capacitor elements. This additional protection is also incorporated to AB lifasa capacitors. Its principle of function is as follows:


EG standards establish maximum limits of overload, on temperature, voltage and current among which a power capacitor can work.
If these limits are exceeded in a permanent way, self healing mechanism is not able to act effectively and the overloaded capacitor can fail definitely.
Unlike those capacitors with a metallic plate, self-healing capacitors present a fault impedance that can have very different values.
These impedance values produce fault currents that can vary between the order of the rated current and several hundred times of itself (see enclosed graphic).
To avoid this type of failure, lifasa power capacitors are provided with a double protection system in each element: Internal fuse and Overpressure system.

Integral Safety in AB Lifasa Capacitor: Safety requirements have been taken into account in all matters related to the design of AB Lifasa capacitors. They form and integral part of them and cover all potential risks described in the standards of the international electro technical commission. There are four levels of protections provided in AB Lifasa capacitor.


Self Healing Properties

MOQ 50 Kvar

Additional Information:

Item Code: FME-Series

Product Details:

Application Power

We are specialized firm manufacturing and supplying wide range of Normal Duty Capacitors. It is a general purpose capacitors which is best suited for individual compensation of smaller loads. Featuring insulation levels of 3kV rms/ 15 kV peak, the offered capacitors are available in single or three phase design with the dry type impregnation at the best price in the industry.

Applications of Normal Duty Capacitors :


Especially suitable for the individual compensation of motors and other small loads.
Suitable the construction of small size automatic capacitor banks.

Advantage of Normal Duty Capacitors :

Capacitors are dry type and consequently ecological safe: there are no possibilities of impregnating liquid leakage.
Losses are specially reduced: lower than 0.05% (< 0.5 kVAR).
Capacitors are a self-healing type: in case of a dielectric breakdown, due for example, to a transient over- voltage, the self-healing mechanism vaporizes the metallic electrode around the breakdown point, allowing the capacitor to go on working normally.
Their weight and volume are very low, allowing them to be installed every-where without problem.

MOQ 5kvar

Product Details:

Capacitance as per kvar
Voltage Rating 380 to 800 volt
Power 5 kvar to 50 kvar units
Capacitor Size as per customer requrements

we are offering our clients a wide gamut of MPP/LT Shunt Capacitors. Our offered range of PFC capacitor is exactly designed under the observation of our specialist by utilizing optimum grade unfinished material and advance technology.

Features:
Perfect strength
Longer service life
High material strength

MOQ 5 kvar

Product Details:

Dielectric Material Polypropylene
Application power factor improvement

IS- 13585/1994

Range
5 to 50 KVAR for all type of
application - 415/440/525/690/800 Volts,
50 Hz, 3Ph.

Features

All Polypropylene (APP) Film + Foil design
Non-PCB PXE oil
Highest inrush current with standing capacity
Suitable for harmonic loads
Extra low lossess
Banking upto 250 KVAR is possible

Application


Fixed & Automatic P. F. Correction, Tunned & Detuned Filters, Outdoor use,
It is strongly recommended to use at extreme high temperature environment such as in foundries, steel industries

Product Details:

Application Air conditioner/Motor, Audio, Power
Capacitance 41.1mfd to 410mfd
Power 5-50Kvar
Voltage Rating 415-800v

This means that the plates of the Super Heavy Duty Capacitor are of very small thickness that in the case of a transient, over voltage produces a dielectric breakdown, the current circulating through the breakdown point will vaporize the metallic plate around this breakdown point, allowing the capacitor to continue working normally. Self healing process is extremely fast & requires only a few microseconds. Internal fuse over pressure system( patented system): In certain markets, there are standards and specifications asking for an individual protection for each capacitor elements. This additional protection is also incorporated to AB lifasa capacitors. Its principle of function is as follows:

EG standards establish maximum limits of overload, on temperature, voltage and current among which a power capacitor can work.
If these limits are exceeded in a permanent way, self healing mechanism is not able to act effectively and the overloaded capacitor can fail definitely.
Unlike those capacitors with a metallic plate, self-healing capacitors present a fault impedance that can have very different values.
These impedance values produce fault currents that can vary between the order of the rated current and several hundred times of itself (see enclosed graphic).
To avoid this type of failure, lifasa power capacitors are provided with a double protection system in each element: Internal fuse and Overpressure system.

Integral Safety in AB Lifasa Capacitor: Safety requirements have been taken into account in all matters related to the design of AB Lifasa capacitors. They form and integral part of them and cover all potential risks described in the standards of the international electro technical commission. There are four levels of protections provided in AB Lifasa capacitor.

Self Healing Properties

MOQ 10 KVA

Product Details:

Capacitor Type ALL Poly Propylene
Application POWER FACTOR IMPROVEMENT
Voltage Rating upto 1000V

IS- 13585/1994

Range
5 to 50 KVAR for all type of
application - 415/440/525/690/800 Volts,
50 Hz, 3Ph.

Features

All Polypropylene (APP) Film + Foil design
Non-PCB PXE oil
Highest inrush current with standing capacity
Suitable for harmonic loads
Extra low lossess
Banking upto 250 KVAR is possible

Application


Fixed & Automatic P. F. Correction, Tunned & Detuned Filters, Outdoor use,
It is strongly recommended to use at extreme high temperature environment such as in foundries, steel industries

MOQ 10 kvar

Product Details:

Capacitance 12kvar -400kvar
Voltage Rating 1.05kv -12kv
Phase Three Phase, Single Phase
Terminals Three, Six

Power Factor Correction Capacitor and electronic means of Power Factor Correction provide well-known benefits to electric power systems. These benefits include power factor correction, poor power factor penalty utility bill reductions, voltage support, release of system capacity, and reduced system losses.
A high power factor signals maximum use of electrical power, while a low power factor leads to purchasing more power to obtain the same load kW, which you pay for in various ways on your utility bill. AB POWER offers a free power factor site evaluation to help safely reduce energy consumption.

MOQ 10 KVA

Product Details:

Application Air conditioner/Motor, Power
Capacitance 41.1mfd to 410mfd
Power 5-50Kvar
Voltage Rating 415-800v

We are the leading supplier of Polypropylene Capacitors. Polypropylene is often abbreviated to PP, and indeed the polypropylene capacitors may be referred to as PP capacitors.The material has many several advantages and as a result it is widely used in many applications.

Features:

Longer service life
High material strength
Highly reliable

MOQ 5 kvar

Product Details:

Application Power
Capacitor Type Super Capacitor

Product Details:

Application Power
Capacitor Type MPP Cylindrical type
Voltage Rating upto 1000V

Self-healing Process in Metallized Capacitors
Even the best plastic films, like ceramic materials, are not free from pin-holes.
However, in the case of metallized film capacitors it is possible to eliminate these faults by applying a much higher voltage than the rated voltage. This process is known as self-healing and practically makes a "zero defect dielectric" possible.
The self-healing process is started by an electric breakdown, which takes about 10-8 secs. In the breakdown channel, the dielectric is transformed into a highly compressed plasma which is pushed out of the channel and presses the dielectric layers apart .
The flawless course of the self-healing process depends on the thickness of the metallization, on the chemical composition and on the rate of the applied voltage; here, apart from the chemical composition, the production conditions have to provide the prerequisites for optimum self-healing.

Product Details:

Brand ab lifasa & ab power make
Terminals Three, Six
Voltage Rating 230 to 900Volt

Manufacturer & Exporter of LT Capacitor. Our product range also comprises of Normal Duty , Heavy Duty Capacitor, Extra Heavy Duty Capacitor & Reinforced Capacitor.

Other Details:


Capacitors are dry type and consequently ecological safe: there are no possibilities of impregnating liquid leakage.
Losses are specially reduced: lower than 0.05% (< 0.5 kVAR).
Capacitors are a self-healing type: in case of a dielectric breakdown, due for example, to a transient over- voltage, the self-healing mechanism vaporizes the metallic electrode around the breakdown point, allowing the capacitor to go on working normally.
Their weight and volume are very low, allowing them to be installed every-where without problem.

MOQ 10 kvar

Product Details:

Application Power
Capacitor Type Super Capacitor
Voltage Rating 415-800v

This means that the plates of the 3PH Capacitor are of very small thickness that in the case of a transient, over voltage produces a dielectric breakdown, the current circulating through the breakdown point will vaporize the metallic plate around this breakdown point, allowing the capacitor to continue working normally. Self healing process is extremely fast & requires only a few microseconds. Internal fuse over pressure system( patented system): In certain markets, there are standards and specifications asking for an individual protection for each capacitor elements. This additional protection is also incorporated to AB lifasa capacitors. Its principle of function is as follows:


EG standards establish maximum limits of overload, on temperature, voltage and current among which a power capacitor can work.
If these limits are exceeded in a permanent way, self healing mechanism is not able to act effectively and the overloaded capacitor can fail definitely.
Unlike those capacitors with a metallic plate, self-healing capacitors present a fault impedance that can have very different values.
These impedance values produce fault currents that can vary between the order of the rated current and several hundred times of itself (see enclosed graphic).
To avoid this type of failure, lifasa power capacitors are provided with a double protection system in each element: Internal fuse and Overpressure system.

Integral Safety in AB Lifasa Capacitor: Safety requirements have been taken into account in all matters related to the design of AB Lifasa capacitors. They form and integral part of them and cover all potential risks described in the standards of the international electro technical commission. There are four levels of protections provided in AB Lifasa capacitor.


Self Healing Properties

Product Details:

Minimum Order Quantity 1 Number
Input Value 230volt to 440volt
Type Automatic
Digit Display Size Single Display

These Advanced Controller are designed to measure the reactive power of an installation by giving the necessary instructions for connection and disconnection of capacitors in order to maintain the desired cos ö. Controllers are show in a 3-digit display of the set-up or actual values. They show the cos ö, that the total current & the harmonic distortion. All controllers are commanded by a microprocessor that ensures an uniform ageing of contactors and capacitors by using a circular connection sequence which takes into account the time that each capacitor has been switched on (FIFO system). Controllers can include a fully operational alarm relay that acts when the automatic capacitor bank cannot reach the required cos ö in case of high harmonic distortion level, over-current and over voltages. LED indicators show permanently capacitors steps that are connected.

Features:

Highly reliable
Longer service life
High performance

Product Details:

Minimum Order Quantity 1 Number
Input Value 440volt
Type Automatic
Digit Display Size Single Display

Power Factor Controller MCE- F PLUS specially designed to control equipments with static switches based on thyristor, which operate through a zero step controller and measure the reactive power of an installation and to give the necessary instruction for connecting and disconnecting capacitors in order to maintain desired cosφ. It measures the cosφ in the system and regulates the automatic connection and disconnection of the capacitors depending on the required cosφ.

Product Details:

Minimum Order Quantity 1 Unit
Voltage Type AC

We are reckoned as major entity actively engaged in manufacturing and supplying high quality Power Factor Controller (mcx). We have developed the most advanced solution for digital measuring of network power factor. The offered device is designed with microprocessor technology and features advanced technology which is widely utilized to control the automatic connection and disconnection of compensation capacitors. Further, our prestigious clients can order this high performing power factor controller from us at the market leading price.

Features:

Compact size
Bright LED display
Inbuilt alarm relays

Product Details:

Minimum Order Quantity 1 Number
Voltage Type AC
Voltage (V) 440volt

We are a leading Manufacturer & Exporter of Power Factor Control Relayssuch as Relay, Power Factor Controller, Automatic Power Factor Controllers and Power Factor Correction Devices from India.PFC controller MCE (6 and 12 steps) for automatic capacitor bank is designed to measure reactive power in the installation and give the proper orders and instructions for switching on/off the capacitors steps to maintain the preset power factor (cos).All controllers include a microprocessor which ensures an uniform use of the capacitors and contactors through a circular connexion sequence FIFO which considerate the connexion time of each capacitor step.The network analyzer MCA Plus is an instrument that measures, calculates and shows the main electrical parameters in industrial 3 phases networks (either well-balanced or non-well balanced).Reactive energy controllers MCE and MCX are designed for measuring the needs of reactive power in an installation and carry the necessary instructions for switching on/off the capacitors in order to maintain the right power factor cos.

Features:

Perfect strength
Highly reliable
Longer service life

Product Details:

Brand ABPOWER
Usage Outdoor Type

Automatic Controlled Capacitor Bank are used for centralised compensation of power factor in low voltage installations. AB power system also provides wide range of automatic capacitor banks with harmonic filters. These equipments are supplied completely assembled and are ready for use. It is only necessary to connect it to the mains with cable of adequate cross section, and to supply the operation signal from a suitable current transformer.

Automatic capacitor banks are composed of the following elements:


High Rupturing Capacity (HRC) fuses connected to a busbar system.
Contactors specially adapted to the work with capacitors.
Inrush current limiting inductances.(Optional).
Fast discharge resistors.(Optional).
Low losses power capacitors.
Reactive power controllers.
Terminals for neutral and ground conductors.
Metal cabinet containing all the switchgear.

Product Details:

Filter Type Multigrade Sand Filter, Activated Carbon Filters, Hydraulic Filter
Filter Medium Material Metal
Flow Rate (cubic meters/hr) 0-500, 500-1000

AB Lifasa supply Automatic Filter for installation having high levels of harmonic distortion. These banks are completely assembled and ready for use like Automatic control capacitor bank as explained above. The low cost, iron core, highly linear reactors of suitable ratings are provided in series with each capacitor unit. The tuning frequency of the whole unit is set at a value between the fundamental frequency and the frequency of the lowest present harmonics. AB Lifasa provides a wide range of ratings upto 3000 kva, 440 V with tuning frequency of 189 Hz. Other voltage and tuning frequencies are also available on request.

Features:

High performance
Excellent finishing
Highly reliable

MOQ : 100 KVA

Product Details:

Cable Entry Top, Bottom
Voltage 400 volt to 800volt
Rated Reactive Power 50kvar to 10000kvar
Application Type Chemical Industry, Cement Plant, Sugar Plant, Textile, Hospital

Abiding by the strict industrial norms and standards, we are providing the clients with an optimum quality assortment of Automatic Control Panel. It is also known as Programmable Logic Controller Panel.We are a unique entity in the industry, actively committed towards offering the best quality range of Automatic Control Panel. In synchronization with the set industry standards, this panel is exclusively manufactured under our highly experienced professionals using high grade electrical components, raw material and latest technology.Our quality controllers check the perfection of the series before the final send off.

Features:


Longer functional life
Efficient performance
Easy to maintain

Specifications:

Rated Voltage: 380-420V/500-690V
Rated Current: 32A-6300A

MOQ 25 kvar

Product Details:

Application for power factor improvements,
Power 10kvar to 10000kvar
Phase Three Phase

We have a broad industrial range which includes the Capacitor Panels. The strong body structure of these panels enhances the life span and provides protection against external pressures. These panels are fitted in with best quality wires, steel and other material. Panels can be installed expeditiously and the maintenance required is less.

Features:

Highly reliable
Excellent finishing
Longer service life

MOQ 50 kvar

Product Details:

Power 300kvar to 10Mavr
Usage Outdoor Type

HT Capacitor Bank and Associated Equipment are used for centralised compensation of power factor in low voltage installations. AB Lifasa also provides wide range of automatic capacitor banks with harmonic filters. These equipments are supplied completely assembled and are ready for use. It is only necessary to connect it to the mains with cable of adequate cross section, and to supply the operation signal from a suitable current transformer.

Features:

High performance
Excellent finishing
Highly reliable

MOQ 300 kvar

Product Details:

Usage power factor improvement

Passive Filter compensation equipments with electromechanical contractors, have a well proven performance in installation where the load has, slow variations and it is not very sensitive to voltage fluctuation. Today, however, more and more industrial installations, include electronic equipments that are very sensitive to voltage variations (PLC, computers, etc.) and also have very fast changing working cycles (automatic welding machines, robots, etc. ). Reactive power compensation with static contractors (Thyristor switch) offers the best answer to these new industry requirements. AB lifasa automatic capacitor banks with static contractors, use thyristors instead of traditional contractors. The thyristors switch-on capacitors on zero crossing voltage, and switch them off on zero current situation. The firing strategy grants a totally transient free switching of power capacitors, avoiding any problems with transient over voltages. This firing strategy grants a totally transient free switching of power capacitors, avoiding any problems with transient over voltages. This transient free switching gives a very fast reaction time of the power factor equipments with sudden reactive power demand variations. This reaction time (the time to switch on or off a capacitor step) is usually not higher than 20 milliseconds. This means that upto 50 operations per second are possible. Please see pdf file for advantages of Thyristor Switches over contactor Switching.

Features:

Longer service life
High performance
Excellent finishing

Specifications:

Type - Thyristor Switching
Size - Customise
Material - MS
Application - Industrial

MOQ 2 kvar

Product Details:

Size as per customers
Usage To improve power factor

Automatic Harmonic Filter Banks are suitable for plants and installations, where load on the power system is fluctuating. In this type of bank, the total kva is divided into a number of steps equal or unequal- depending upon the load conditions. The capacitor steps are switched in or out through a contactor, controlled by a power factor controller of type MCX. If a discharge coil (Voltage Transformer) is connected along with the steps, the discharge time of capacitors get reduced to 10 seconds (otherwise it is 10 minutes). This would enable rapid reconnection of steps. These banks are equipped with:

Sheet metal enclosure.
H.R.C. Fuses for capacitor steps with fuse failure indication.
Vacuum contactor or SF6 circuit breaker.
Inrush current limiting reactor (inductor).
H.V. Capacitor units of single phase or three phase AB LIFASA with internal element fuses.
Control box with power factor controller and indications.

Product Range:

50 kva to any rating as per the requirement of customer.
Voltage rating up to 36 kva.

Designs and specifications:

With vast knowledge and experience available in AB lifasa, we are capable of working out a technically and economically viable power factor solution for each type of installation.

MOQ 100 kvar

Product Details:

Size as per customer requirements
Material Dataloger cards, Dc cap, Reactors
Usage Harmonic Filtering, PowervFactor Corection, Filter all harmonics up to 50th harmonics.

The IGBT based Active Harmonic filter Banks are designed to solve the faults and the unbalanced current itself at 50 Hz achieving practically neutral currents which may occur in a four wire, three phase installation.

It includes the following functions:

The Harmonic filtering.
Phase current balance.
Power factor correction.

MOQ 30 AMP

Product Details:

Usage Harmonic filtration , Power factor correction ,

The IGBT based Active filter Banks are designed to solve the faults and the unbalanced current itself at 50 Hz achieving practically neutral currents which may occur in a four wire, three phase installation.

It includes the following functions:

The Harmonic filtering.
Phase current balance.
Power factor correction.

MOQ 30 Amp

Product Details:

Size 30Amp, 60Amp,100Amp,150Amp,200Amp,300Amp, 500Amp etc
Material The IGBTBased Active Harmonic Filter Bank
Usage The Harmonic Filtering, Phase Current Balancing, Power Factor Correction , Network Impediance does

The IGBT based Active Harmonic Filter are designed to solve the faults and the unbalanced current itself at 50 Hz achieving practically neutral currents which may occur in a four wire, three phase installation.

It includes the following functions:

The Harmonic filtering.
Phase current balance.
Power factor correction.

Application of Active Harmonic Filter:


This is the ideal solution for installations with a large amount of the single-phase and three-phase loads generating harmonics such as computers, the UPC, lights lifting equipment.

Advantage of Active Harmonic Filter:


Bolts and outlet to ensure the reliability and stability of the wiring, to meet the requirements of large-capacity, high current.
Safe and reliable American pressure explosion-proof structure, built-in discharge resistor, making the product safer and more reliable.
Long-life, multi-component designs to increase the cooling area, the lower the temperature rise of the capacitor, to extend the life of the capacitor.
Capacitor components with special metalized film side blocking both high self-healing properties, but also meets the requirements of high reliability contacts and high-pressure.
Safe and effective protective measures to remove the injury to the human body.
Convenient and reliable installation, improve work efficiency.

Typical Customer:


Small industries of all kind
Power utilities
Contractors
Small commercial premises

MOQ 30 AMP

Product Details:

Input Voltage 440v to 132kv
Voltage Type AC

This Static Var Compensator is designed for industries. These compensator help to eliminate such problems as harmonics, voltage fluctuations, unbalance loads and rapid changes in reactive power that are caused by line switching, line faults, non-linear components (e.g. thyristor controls) and rapidly varying active or reactive loads. SVC is designed to give an individual solution to each customer’s case.

Features:

Longer service life
High performance
Perfect strength

MOQ 100 kvar

Product Details:

Size as per customer requirements
Material CRGO, Aluminum & copper also

Detuned Filter Reactor are used, in supply networks having a high level of harmonic distortion, when the final objective is reactive power compensation at the fundamental frequency. Their purpose is to avoid the harmonic currents overload to the capacitors by diverting them to the mains. Protection filters are made by connecting reactors in series with capacitors, in such a way that the tuning frequency of the whole unit is set at a value between the fundamental frequency and the frequency of the lowest present harmonics, which is usually the 5th order harmonic. In this the filter has a high inductive impedance for all the harmonic frequencies.

Features:

Perfect strength
Longer service life
High performance

MOQ 5 kvar

Product Details:

Application Power Generation, Industrial Facilities
Voltage 400volt to 800 volt
Power 5 kvar to 100kvar units

Our reputation in the market is largely attributable to our precision-engineered Series Reactor from our wide range of products. Our offered range finds extended applications in numerous industries.

Features:

High performance
Perfect strength
Highly reliable

MOQ 5 kvar

Product Details:

Voltage 320 to 690V
Impendence 5.6%, 7%
Size as per customer requirements
Material copper wire, MS
Usage forming the resonance

We are suppliers of Detuned Reactors or Harmonic Filter Reactors, these are used for filtering harmonics and high-frequency disturbances to capacitor banks and thus improves the operating life span of the capacitor. The amount of attenuation depends on the harmonic frequency and network relations.

Features:

Durable
High performance
Perfect strength

MOQ 5 KVA

Product Details:

Size as per customer requirement
Material CRGO materials , Alu & Copper
Usage Reactor are connected in series with power capacitor

We have firm allegiance in manufacturing and supplying highly demanded LT Detuned Reactor. It is one of the best selling reactors used for protection of capacitor banks from high frequency disturbances in electrical systems. Developed under stern regulations of highest manufacturing standards, our offered reactors are assembled with high performing components that are well appreciated to increase the life span of capacitors. Further, these reactors are available in varied dimensions and technical configurations at an equitable price range.

Features:

Sturdy design
Better heat dissipation
Vibration free operation
Low noise levels

MOQ 5 kvar

Product Details:

Voltage 440volt to 800volt
Power 5 kvar to 1000kvar

We have firm allegiance in manufacturing and supplying high performing Harmonic Filter Reactor. We have utilized cutting edge technology to bring forth the most reliable reactors that are widely demanded for reducing, blocking and providing low impedance path for the harmonic currents in varied electrical systems. Our offered reactors are specially developed with top rated components to prevent resonance in electrical systems. Equipped with assurance of longevity and reliability the offered reactors can be obtained from us at market leading price.

Features:

Withstand short circuit forces
Surface protection from UV and pollution
Easy to install
Maintenance free design

MOQ 10 kvar

Product Details:

Cable Entry Top, Bottom
Voltage 440v to 800volt
Rated Reactive Power to measure the reactive power of an installation and to give the necessary instruction for connecton
Application Type Chemical Industry, Cement Plant, Sugar Plant, Textile, Hospital

Thyristor Controlled Capacitor is a type of equipment used for compensating reactive power in electrical power systems. It consists of a power capacitor connected in series with a bidirectional thyristor valve and, usually, a current limiting reactor (inductor). The thyristor switched capacitor is an important component of a Static VAR Compensator (SVC). Thyristor switched capacitor banks with high-speed switching capability are designed to support the supply voltage of distribution systems and to correct the power factor of connected loads.

Features:

High performance
Perfect strength
Highly reliable

MOQ 100 kvar

Product Details:

Power 100 kvar to 10000kvar
Brand ab lifasa , ab power make
Usage Indoor Type
IP Rating IP21, IP54, IP42

Thyristor Switched Capacitor Bank is a type of equipment used for compensating reactive power in electrical power systems. It consists of a power capacitor connected in series with a bidirectional thyristor valve and, usually, a current limiting reactor (inductor). The thyristor switched capacitor is an important component of a Static VAR Compensator (SVC).Thyristor switched capacitor banks with high-speed switching capability are designed to support the supply voltage of distribution systems and to correct the power factor of connected loads.TCR, the TSC is only ever operated fully on or fully off. An attempt to operate a TSC in ‘’phase control’’ would result in the generation of very large amplitude resonant currents, leading to overheating of the capacitor bank and thyristor valve, and harmonic distortion in the AC system to which the SVC is connected.TSC, the capacitor bank is constructed from rack-mounted outdoor capacitor units, each unit typically having a rating in the range 100-2500 kilovars (kVAr) or above.

Features:

Longer service life
High performance
Perfect strength
Real time power factor corrections

MOQ 100 kvar

Product Details:

Brand AB Lifasa Spain or AB Power
Usage Indoor Type
IP Rating IP21, IP54, IP42

Thyristor Controlled Capacitor is a type of equipment used for compensating reactive power in electrical power systems. It consists of a power capacitor connected in series with a bidirectional thyristor valve and, usually, a current limiting reactor (inductor). The thyristor switched capacitor is an important component of a Static VAR Compensator (SVC). Thyristor switched capacitor banks with high-speed switching capability are designed to support the supply voltage of distribution systems and to correct the power factor of connected loads.

Features:

High performance
Perfect strength
Highly reliable

MOQ 200 kvar

Panel housing the Thyristor Control Panels the power of the heater to match the thermal requirements of the system for high accuracy control. The Control Panel also contains necessary control and safety features. PID Cont. – Proportional, Derivative, Integral Three Term Indicating.

Features:

Durable and efficient
Perfect strength
High performance

Additional Information:

Minimum Order Quantity: 200 KVAR

Product Details:

Application Air conditioner/Motor, Audio
Capacitance 41.1mfd to 410mfd
Capacitor Type Aluminium Electrolytic Capacitor
Power 5-50Kvar
Voltage Rating 415-800v

We are Manufacturer & Exporter of Oil Cooled Capacitor.Low-voltage three-phase and one-phase capacitors RTR are made of metallized self-healing polypropylene film with low loss factor, which provides higher operating characteristics.

Product Details:

Voltage 400 to 800volt
Current 5 Amp to 280 Amp unit
Thyristor Type Silicon Controlled Switch (SCS)

With our immense expertise in this domain, we offer a wide range of Thyristors Modules. Our vendors make use of high grade material and develop the range in accordance with the set industrial guidelines.

Features:

Highly reliable
Durable and efficient
Perfect strength

MOQ 5 kvar

Product Details:

Minimum Order Quantity 1 Unit
Power 1 Kva to 800Kva
Input Voltage(V) 230 to 800volt
Phase Single Phase
Application Residential, Commercial
Warranty 1 Year
Output Voltage(V) as per customer requirements
Condition New

We are providing Power Breakup Solution UPS, these are IGBT Based Transformers UPS1kva to 800kva

Product Details:

Application to Improve power factor
Power 50kvar to 10000kvar bank
Phase Three Phase

Our Capacitor Panels are designed using quality material, modern machinery and latest technology. These panels suit to environment of the industry, save electricity costs and are vermin and dust proof.To ensure longer service life, these are equipped with high grade capacitor and switchgear.

Our wide product range have following attributes:

Eliminates the payment of low power factor and penalty levied by electric utilities
Low energy consumption
Reduces the kva demand charges
Ability to maintain a consistent high power factor

Product Details:

Minimum Order Quantity 1 Number
Specific Problem/Issue Capacitor Dielectric Failure
Power Rating <1 kVA
Load Type Lighting
Analytical Service Frequency One Time Requirement
Application/Usage Industrial
Audit Method/Approvals ISO
Audit Type Internal
Preferred Audit Location On-Site Testing

We have established ourselves as trustful suppliers of highly demanded Harmonic Analysis Services. We provide complete report about distortions in electrical systems, which eventually improve the power quality. Our offered analysis includes industry energy audit and utility energy audit with help of advanced technological devices of reactive power compensation and harmonic control. Our prestigious clients can avail our offered state of art harmonic analysis services at the best price in the marketplace.

Other details:

Rendered by trained professionals
Compliance with safety
Timely execution

Complete solution package:

Measurements of harmonics and energy audits in electrical systems.
Design & recommendation of tailor-made power solution to the power quality problems.
Manufacturing, testing & supplying of products to achieve power quality improvement.
Commissioning of equipment and establishing improvement parameters through system measurements.

Product Details:

Minimum Order Quantity 1 Unit
Application/Usage Industrial
Type of Load Industries load
Need Certification Yes

We conduct Power Quality Analysis Services to Electrical systems and provide Complete Solution Packages like industrial energy audit and utility energy audit , to clients in order to improve power quality through reactive power compensation and harmonic control.We conduct Harmonic Analysis and Energy Audit to Electrical systems and provide Complete Solution Packages like industrial energy audit and utility energy audit , to clients in order to improve power quality through reactive power compensation and harmonic control.

Our complete solution package includes:


Measurements of harmonics and energy audits in electrical systems.
Design & recommendation of tailor-made power solution to the power quality problems.
Manufacturing, testing & supplying of products to achieve power quality improvement.
Commissioning of equipment and establishing improvement parameters through system measurements.

Product Details:

Minimum Order Quantity 1 Number
Voltage Type AC
Voltage (V) 230 to 440 volt
Number of Poles 2 Pole, 3 Pole

We are actively engaged in offering best and world class array of APFC Relay. These offered Relays are designed and created by our professionals with the use of best quality machines, up to dated techniques and skills. These Relays are designed with the utilization of best quality machines and tools.

Features:

Perfect strength
Highly reliable
High performance
